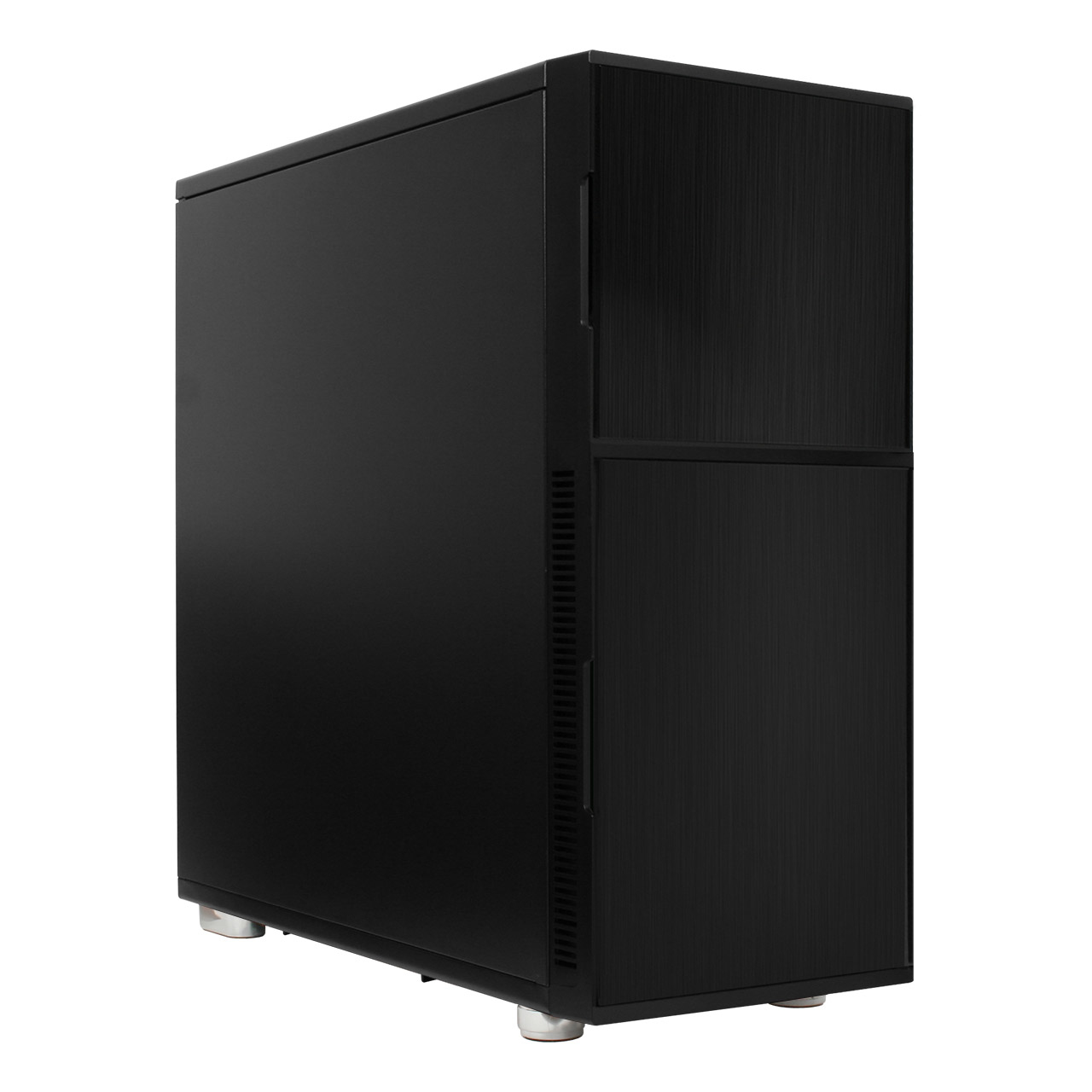

bluechip GAMINGline T7700

Model GAMINGline T7700Part no. 556250EAN 4250749712061

102 specifications

Overview

Brand: bluechip
Category: PCs/Workstations
Model: GAMINGline T7700
Part numbers: 556250, 556427, 556482, 556105, 556562, 556613 +4 more
EAN / UPC: 4250749712061, 4250749701898, 4250749702352, 4250749702536 +4 more
Also known as: bluechip GAMINGline T7700

102 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7 X-series
Processor generation	6th gen Intel® Core™ i7
Processor model	i7-6800K
Processor cores	6
Processor threads	12
Processor boost frequency	3.6 GHz
Processor frequency	3.4 GHz
Processor cache	15 MB
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Broadwell
Thermal Design Power (TDP)	140 W
Maximum number of PCI Express lanes	28
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 2011-v3
Maximum internal memory supported by processor	128 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2133,2400 MHz
ECC supported by processor	No

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of storage drives supported	11
Number of SSDs installed	1
SSD capacity	500 GB
SSD interface	M.2
Card reader integrated	No
RAID support	Yes
RAID levels	0, 1, 5, 10

Specification	Value
Discrete graphics card	Yes
On-board graphics card	No
Discrete graphics card model	NVIDIA® GeForce® GTX 1080
Discrete graphics card memory	8 GB
On-board graphics card model	Not available
Graphics card DVI-D ports quantity	1
Graphics card DisplayPorts quantity	3
Graphics card HDMI ports quantity	1

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
PS/2 ports quantity	1

Specification	Value
Power supply	700 W

Specification	Value
Operating system installed	Windows 10 Home

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Smart Response Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Processor ARK ID	94189
Scalability	1S
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Conflict-Free processor	Yes

Specification	Value
Audio chip	Realtek ALC1050

Specification	Value
Compliance certificates	RoHS
Certification	CE
