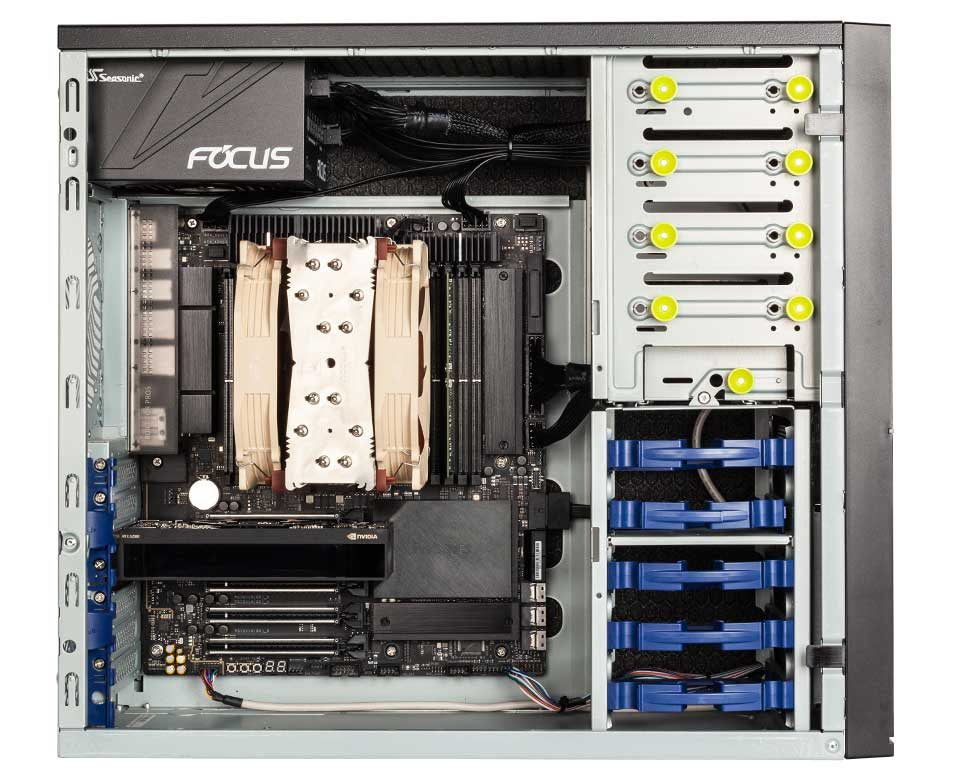

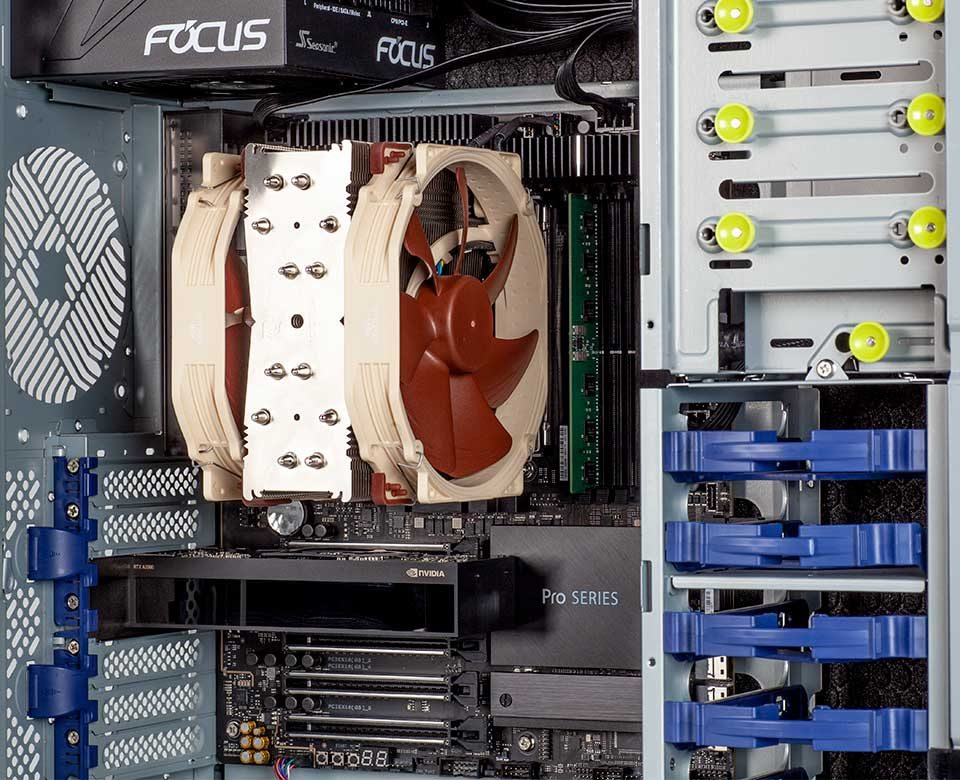

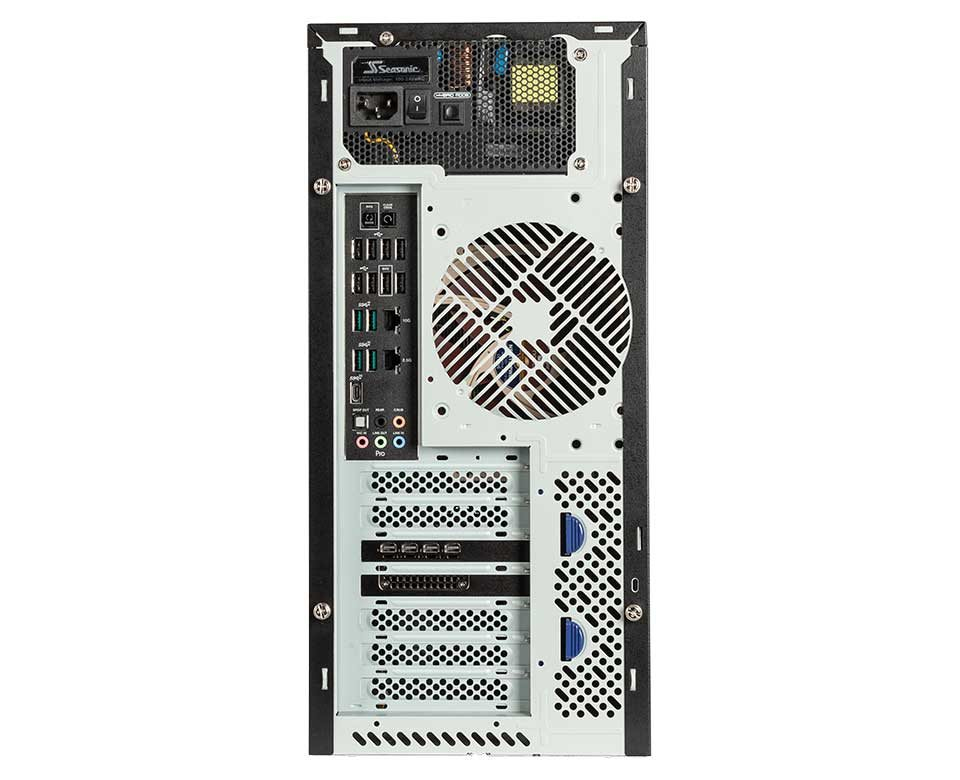

BUSINESSline Workstation WS2301
Model BUSINESSline Workstation WS2301Part no. 850548EAN 4250749707654
78 specifications
- ProcessorIntel Xeon W
- Memory32 GB
- Storage500 GB
- GraphicsNVIDIA Quadro RTX A2000
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel Xeon W
- Memory
- 32 GB
- Storage
- 500 GB
- Graphics
- NVIDIA Quadro RTX A2000
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- BUSINESSline Workstation WS2301
- Part numbers
- 850548, 850629, 850652, 850466
- EAN / UPC
- 4250749707654, 4250749710265, 4250749710814, 4250749706046
- Also known as
- bluechip BUSINESSline Workstation WS2301 Intel® Xeon® w3-2423 Prozessor / bis zu 4.20 GHz, Windows 11 Pro, Intel® W790, 32 GB DDR5, 500 GB NVMe SSD, 1 × 10 Gbit
Specifications
78 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Xeon W |
| Processor model | w3-2423 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 2.1 GHz |
| Performance cores | 6 |
| Efficient cores | 0 |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Processor socket | LGA 4677 (Socket E) |
| Maximum turbo power | 144 W |
| Processor base power | 120 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 2 TB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots | 8x DIMM |
| Memory clock speed | 4400 MHz |
| ECC | Yes |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| Hot-swap drive bays | Yes |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | No |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA Quadro RTX A2000 |
| Discrete graphics card memory | 12 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board graphics card model | Not available |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Maximum discrete graphics card resolution | 7680 x 4320 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel W790 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,10000 Mbit/s |
| LAN controller | Intel I226-V |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Placement supported | Vertical |
| Number of 5.25" bays | 4 |
| Number of 2.5" bays | 5 |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC S1220A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 490 mm |
| Height | 435 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
