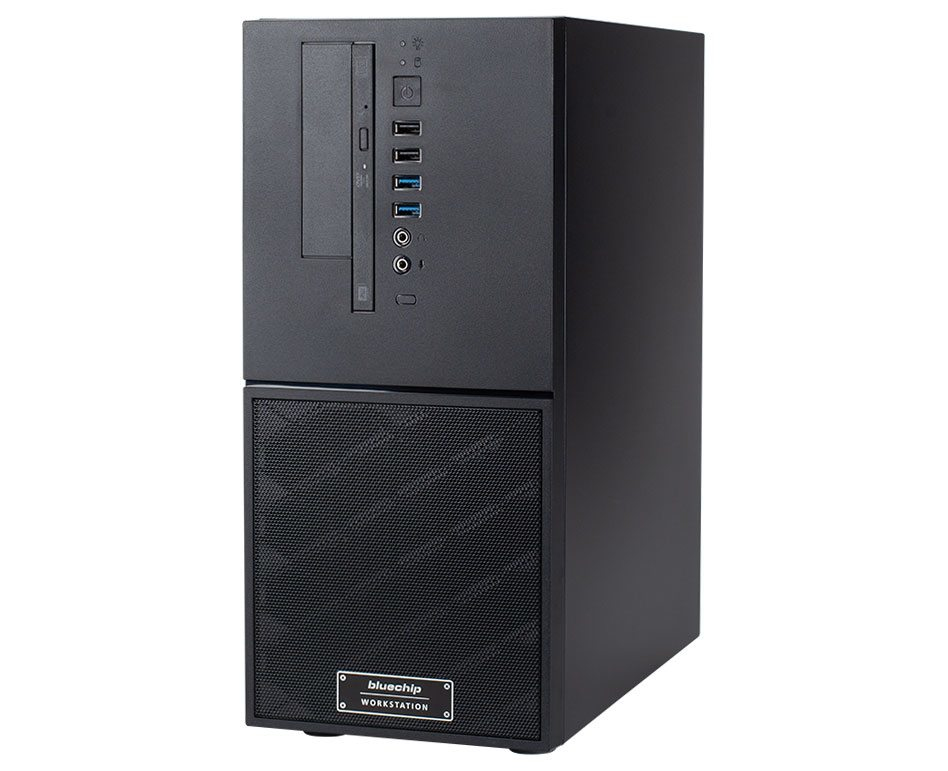

BUSINESSline Workstation WS1103
Model BUSINESSline Workstation WS1103Part no. 850598EAN 4250749708965
84 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage500 GB
- GraphicsNVIDIA RTX 2000 Ada
- TypeWorkstation
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 500 GB
- Graphics
- NVIDIA RTX 2000 Ada
- Type
- Workstation
- OS
- Windows 11 Pro
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- BUSINESSline Workstation WS1103
- Part numbers
- 850598, 850653, 850670, 850702, 850537, 850547
- EAN / UPC
- 4250749708965, 4250749710821, 4250749711439, 4250749712009 +2 more
- Also known as
- bluechip BUSINESSline Workstation WS1103 Intel® Core™ i5 Prozessor 14400 / bis zu 4.70 GHz, Windows 11 Pro, Intel® B760, 16 GB DDR4, 500 GB NVMe SSD, RJ45 (2,5
Specifications
84 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14400 |
| Processor cores | 10 |
| Processor threads | 16 |
| Processor boost frequency | 4.7 GHz |
| Performance cores | 6 |
| Efficient cores | 4 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 3.5 GHz |
| Performance-core base frequency | 2.5 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 20 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Processor socket | LGA 1700 |
| Maximum turbo power | 148 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 3200 MHz |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 500 GB |
| Optical drive type | DVD±RW |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 500 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 500 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA RTX 2000 Ada |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 730 |
| Graphics card Mini DisplayPort ports quantity | 4 |
| Maximum discrete graphics card resolution | 7680 x 4320 pixels |
Performance
| Specification | Value |
|---|---|
| Product type | Workstation |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| PS/2 ports quantity | 1 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 650 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Placement supported | Vertical |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC897 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 310 mm |
| Height | 365 mm |
Certificates
| Specification | Value |
|---|---|
| Certification | CE |
