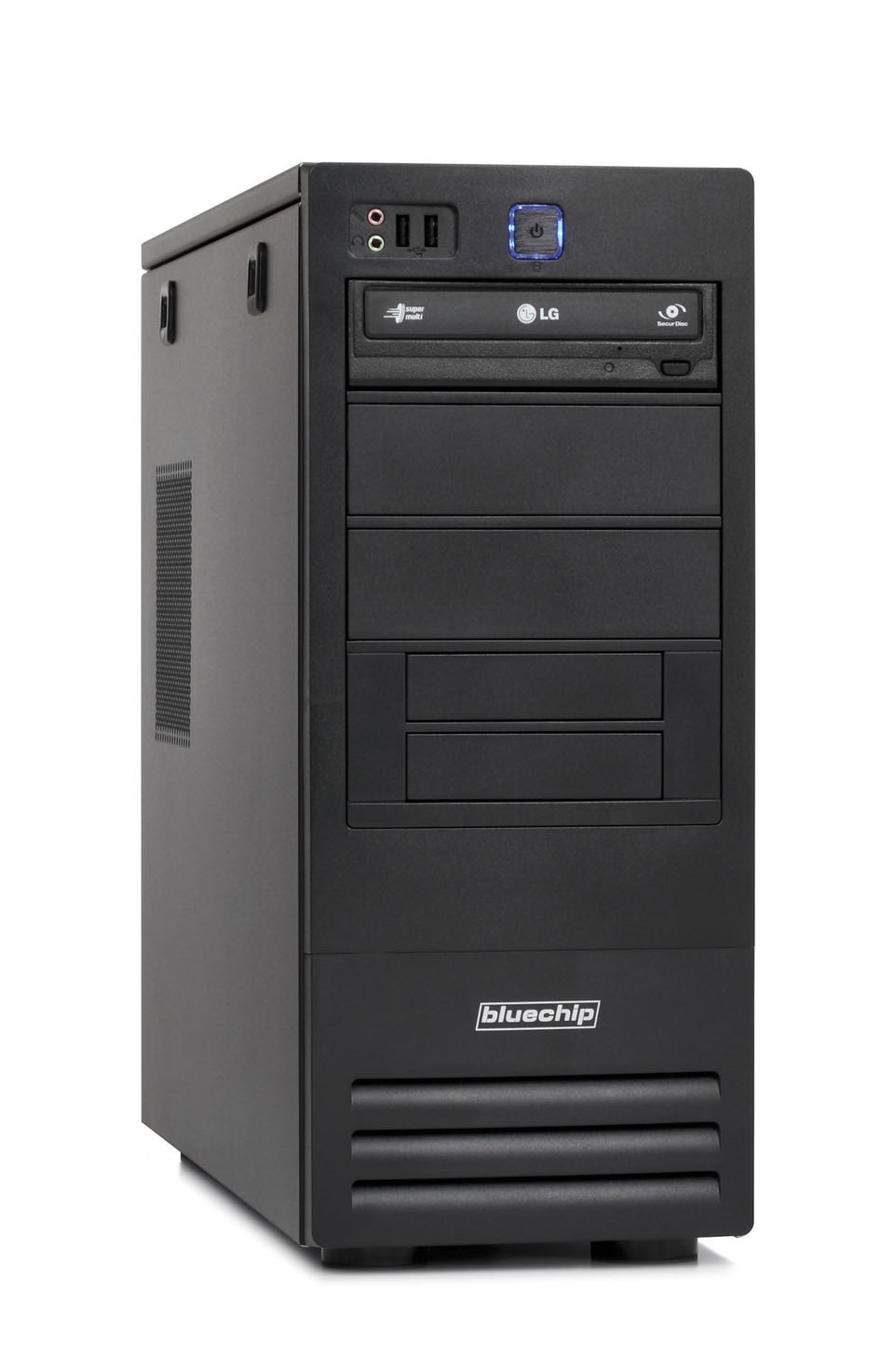

bluechip BUSINESSline T7990
Model BUSINESSline T7990Part no. 556064EAN 4250749701706
92 specifications
- ProcessorIntel® Core™ i7 X-series
- Memory16 GB
- Storage1.12 TB
- GraphicsNVIDIA® GeForce® GTX 1060
- TypePC
- OSWindows 10 Pro
Overview
- Processor
- Intel® Core™ i7 X-series
- Memory
- 16 GB
- Storage
- 1.12 TB
- Graphics
- NVIDIA® GeForce® GTX 1060
- Type
- PC
- OS
- Windows 10 Pro
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- BUSINESSline T7990
- Part numbers
- 556064, 555045
- EAN / UPC
- 4250749701706
- Also known as
- bluechip BUSINESSline T7990
Specifications
92 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 X-series |
| Processor generation | 6th gen Intel® Core™ i7 |
| Processor model | i7-6800K |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.6 GHz |
| Processor frequency | 3.4 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Broadwell |
| Thermal Design Power (TDP) | 140 W |
| Maximum number of PCI Express lanes | 28 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | LGA 2011-v3 |
| Maximum internal memory supported by processor | 128 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133,2400 MHz |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 4 x 4 GB |
| Memory clock speed | 2400 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1.12 TB |
| Optical drive type | DVD±RW |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| HDD capacity | 1 TB |
| HDD interface | SATA III |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| Discrete graphics card model | NVIDIA® GeForce® GTX 1060 |
| Discrete graphics card memory | 6 GB |
| Discrete graphics memory type | GDDR5 |
| Graphics card DVI-D ports quantity | 1 |
| Graphics card DisplayPorts quantity | 1 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® X99 |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt ports quantity | 0 |
| Thunderbolt 2 ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 600 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Midi Tower |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Smart Response Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor ARK ID | 94189 |
| Scalability | 1S |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Conflict-Free processor | Yes |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC1150 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 180 mm |
| Depth | 435 mm |
| Height | 490 mm |
