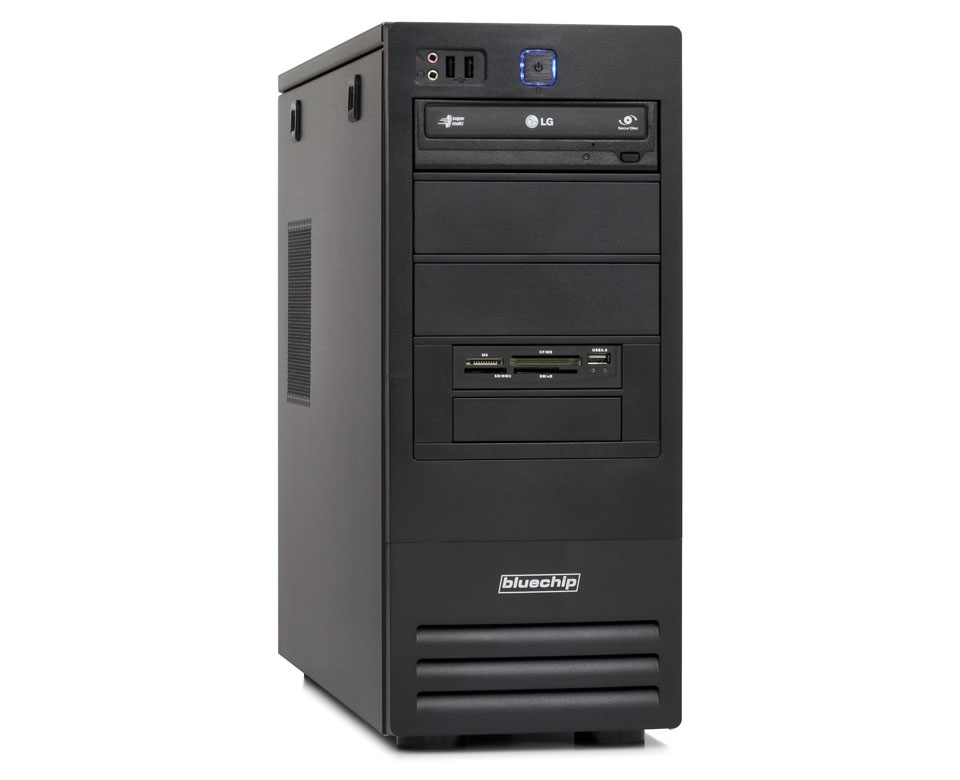

bluechip BUSINESSline T5500

Model BUSINESSline T5500Part no. 556507EAN 4250749710333

156 specifications

ProcessorIntel® Core™ i5
Memory8 GB
Storage1.12 TB
GraphicsNot available
TypePC
OSWindows 10 Pro

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 8 GB
Storage: 1.12 TB
Graphics: Not available
Type: PC
OS: Windows 10 Pro

Brand: bluechip
Category: PCs/Workstations
Model: BUSINESSline T5500
Part numbers: 556507, 556521, 556045, 556572, 556608, 555044 +6 more
EAN / UPC: 4250749710333, 4250749712016, 4250749701690, 4250749702376 +7 more
Also known as: bluechip BUSINESSline T5500

Specifications

156 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	6th gen Intel® Core™ i5
Processor model	i5-6500
Processor cores	4
Processor threads	4
Processor boost frequency	3.6 GHz
Processor frequency	3.2 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
FSB Parity	No
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-6500 Desktop series
Processor codename	Skylake
Thermal Design Power (TDP)	65 W
Processor thermal power	65 W
Tcase	71 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	R0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	2133,1333,1600,1866 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No
Memory voltage supported by processor	1.35 V

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory layout (slots x size)	1 x 8 GB
Memory clock speed	2133 MHz
Memory channels	Dual-channel
Non-ECC	Yes

Storage

Specification	Value
Total storage capacity	1.12 TB
Optical drive type	DVD Super Multi DL
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA III
Card reader integrated	Yes
Compatible memory cards	CF, CF Type II, MMC, MS Duo, MS PRO, MS PRO Duo, Memory Stick (MS), RS-MMC, SD, xD
RAID support	Yes
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 530
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	1912
On-board graphics card OpenGL version	4.4
Graphics card Open GL support	Yes

Performance

Specification	Value
Product type	PC
Virtual Reality (VR) ready	Yes
Motherboard chipset	Intel® Z170
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1
BD interface type	SATA

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x16 slots	2
PCI Express x16 (Gen 3.x) slots	2
PCI slots	2

Power

Specification	Value
Power supply	500 W

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Number of 5.25" bays	3
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	14 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel HD Graphics	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	88184
Processor code	SR2BX
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.2, AVX 2.0, SSE4.1
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	High Definition Audio

Weight & dimensions

Specification	Value
Width	180 mm
Depth	490 mm
Height	435 mm
