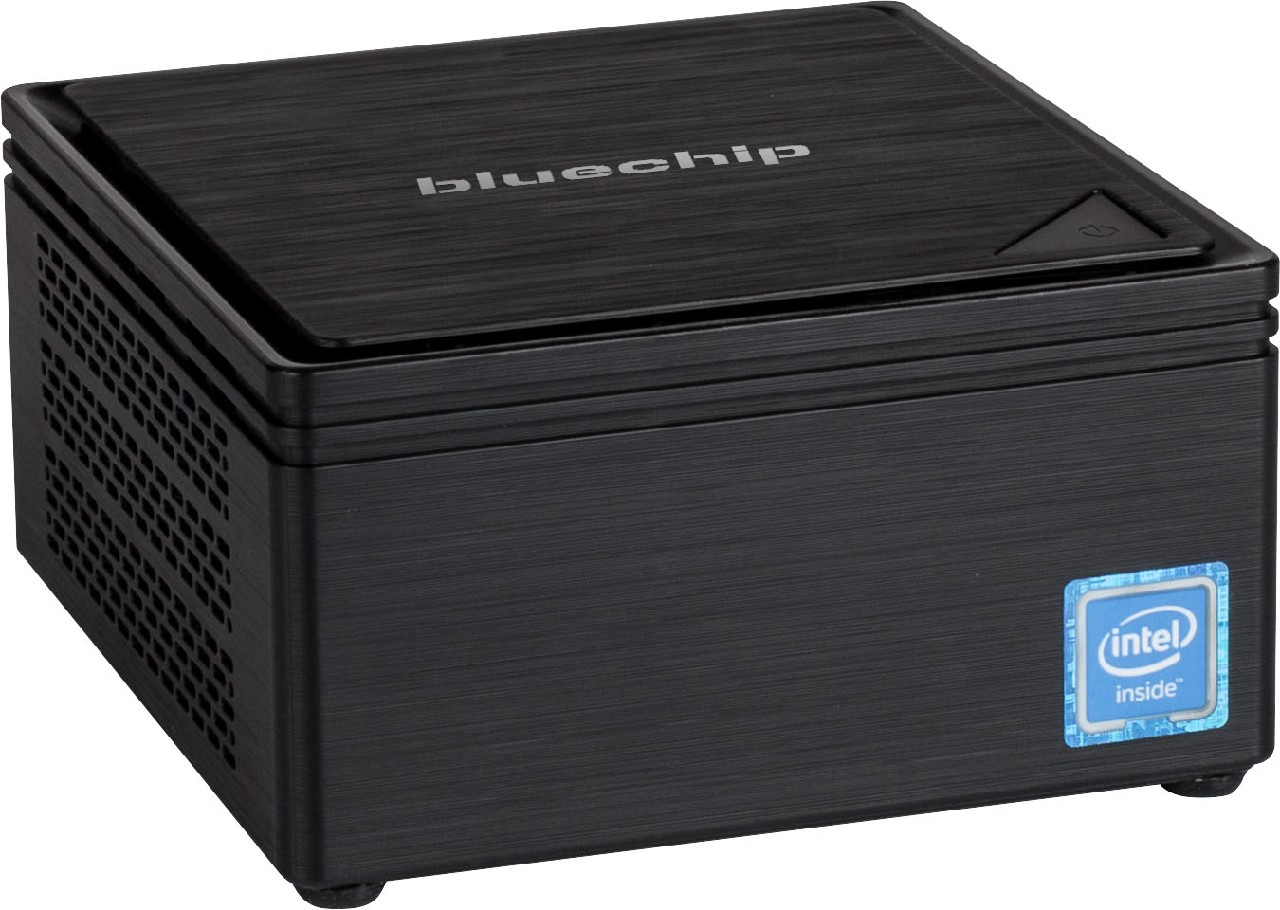

BUSINESSline S1700

Model BUSINESSline S1700Part no. 556108

131 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage128 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 128 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: bluechip
Category: PCs/Workstations
Model: BUSINESSline S1700
Part number: 556108
Also known as: bluechip BUSINESSline S1700

Specifications

131 specifications in 13 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	N3350
Processor cores	2
Processor threads	2
Processor boost frequency	2.4 GHz
Processor frequency	1.1 GHz
Processor cache	2 MB
Processor cache type	L2
System bus rate	5 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Celeron N3000 series
Processor codename	Apollo Lake
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Tjunction	105 °C
Maximum number of PCI Express lanes	6
PCI Express configurations	1x2+2x1, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1296
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	LPDDR4-SDRAM, DDR3L-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1866,2400 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	1x SO-DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	128 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	SATA

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 500
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	200 MHz
On-board graphics card burst frequency	650 MHz
On-board graphics card dynamic frequency (max)	650 MHz
On-board graphics card ID	0x5A85
Number of execution units	12

Performance

Specification	Value
Product type	Mini PC
Market positioning	Business

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.2

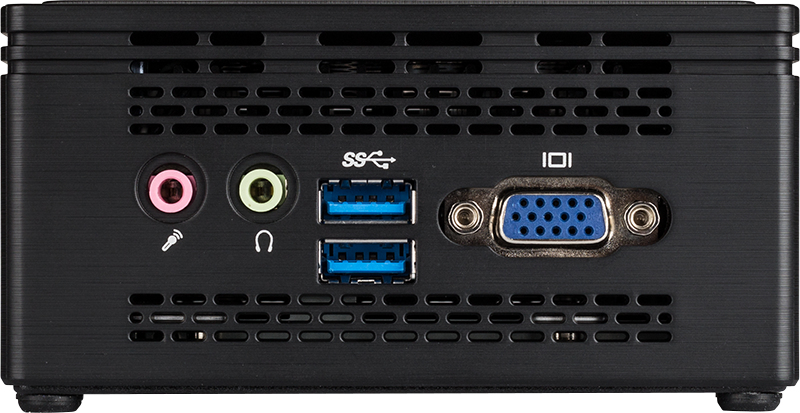

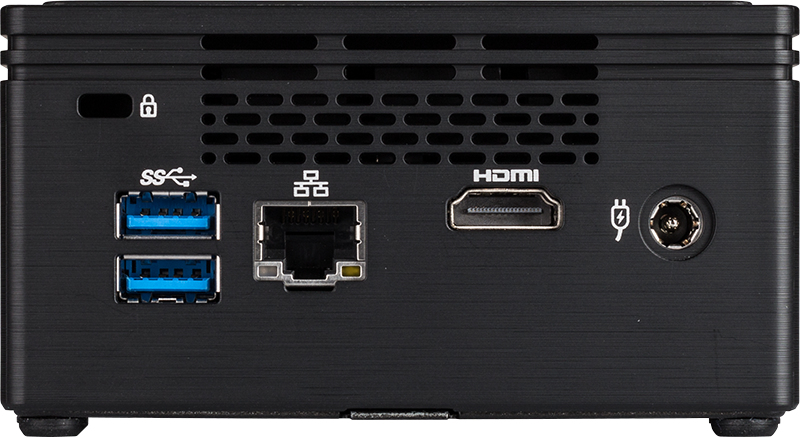

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
Mini HDMI ports quantity	0

Power

Specification	Value
Power supply input voltage	100 - 240 V

Design

Specification	Value
Panel mounting interface	75 x 75,100 x 100 mm
VESA mounting	Yes
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology version	0.00
Intel Smart Idle Technology	No
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	95598
Processor package size	24 x 31 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
