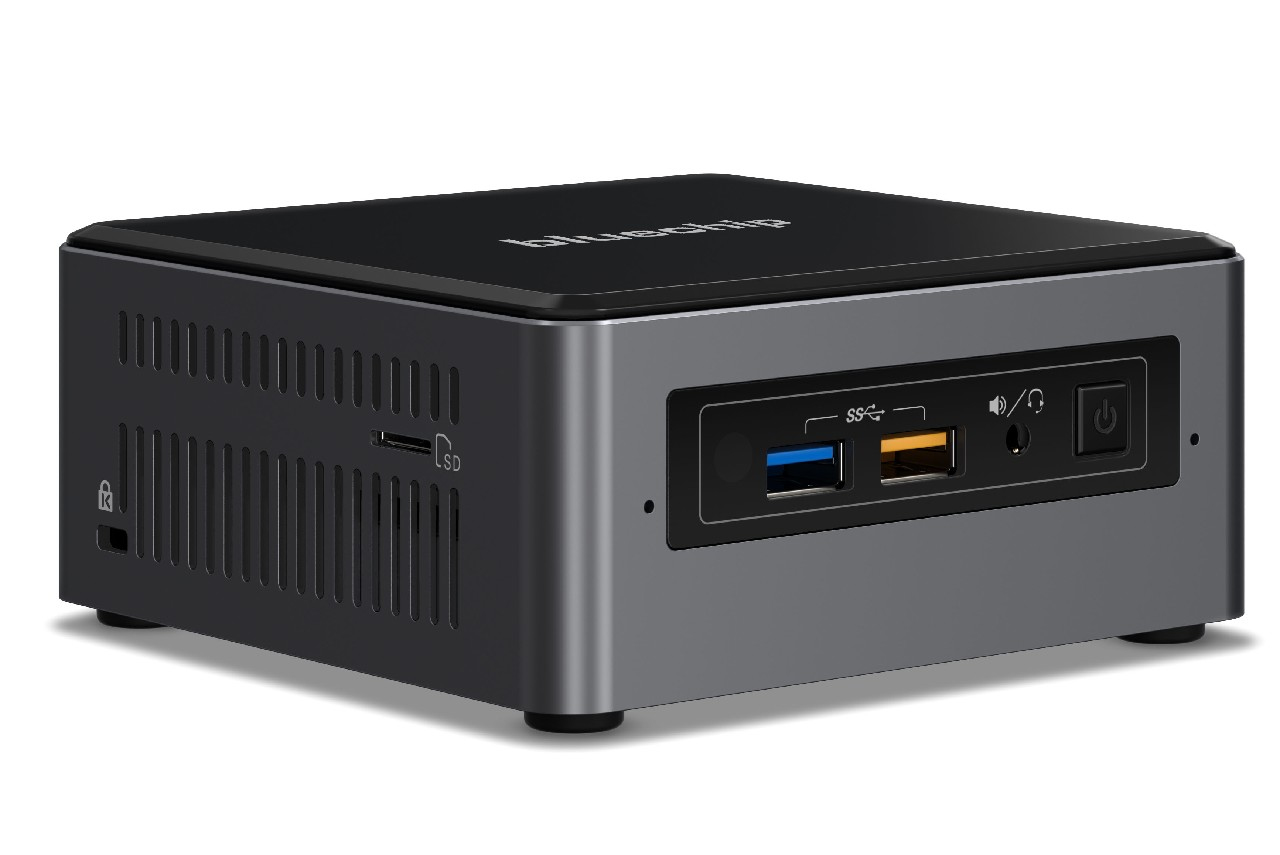

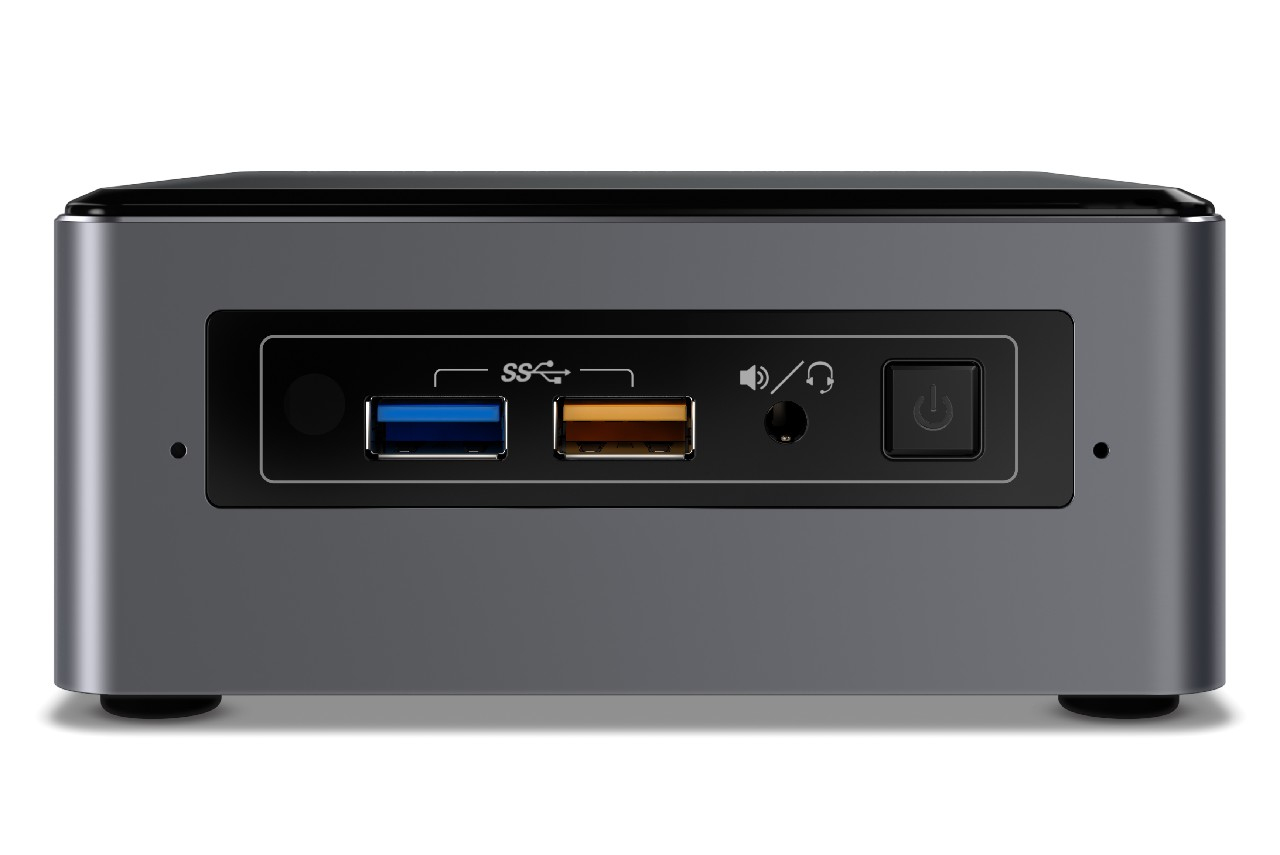

BUSINESSline NUC1755

Model BUSINESSline NUC1755Part no. 556130

104 specifications

Overview

104 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	7th gen Intel® Core™ i5
Processor model	i5-7260U
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-700 Desktop Series
Processor codename	Kaby Lake
Thermal Design Power (TDP)	15 W
Configurable TDP-down	9.5 W
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	BGA 1356
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3L, DDR4-SDRAM, LPDDR3-SDRAM
Memory clock speeds supported by processor	1600,1866,2133 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	256 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	256 GB
Card reader integrated	Yes

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel Iris Plus Graphics
On-board graphics card model	Intel® Iris™ Plus Graphics 640
Maximum on-board graphics card memory	32 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	300 MHz
On-board graphics card dynamic frequency (max)	950 MHz
On-board graphics card DirectX version	12.0
On-board graphics card OpenGL version	4.4

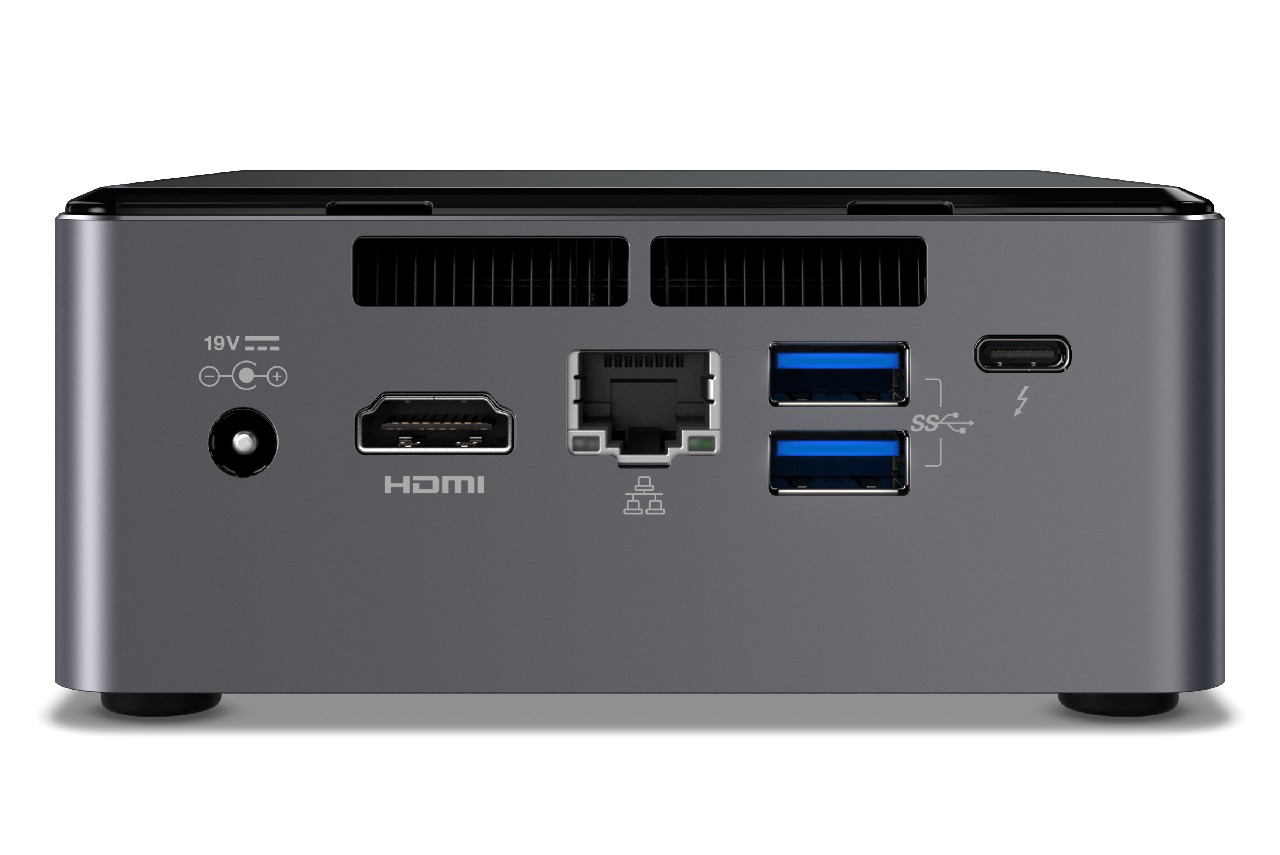

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
HDMI ports quantity	1
VGA (D-Sub) ports quantity	0
DVI port	No

Specification	Value
Chassis type	Mini PC
Product colour	Anthracite

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Flex Memory Access	Yes
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor package size	42 x 24 x 1.3 mm
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes
