BUSINESSline N11070
Model BUSINESSline N11070Part no. 556167EAN 4250749700945
131 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- Mini PC
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- BUSINESSline N11070
- Part number
- 556167
- EAN / UPC
- 4250749700945
- Also known as
- bluechip BUSINESSline N11070
Specifications
131 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10710U |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| System bus rate | 4 GT/s |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Comet Lake |
| Thermal Design Power (TDP) | 15 W |
| Configurable TDP-up | 25 W |
| Configurable TDP-up frequency | 1.6 GHz |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Tjunction | 100 °C |
| Maximum number of PCI Express lanes | 16 |
| PCI Express configurations | 1x4, 2x2, 1x2+2x1, 4x1 |
| PCI Express slots version | 3.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1528 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR3-SDRAM |
| Memory clock speeds supported by processor | 2666,2133 MHz |
| Memory bandwidth supported by processor (max) | 41.66 GB/s |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | NVMe, PCI Express 3.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SDXC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® UHD Graphics |
| Maximum on-board graphics card memory | 32 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 300 MHz |
| On-board graphics card dynamic frequency (max) | 1150 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x9BCA |
| On-board graphics card OpenGL version | 4.5 |
| Maximum resolution | 3840 x 2160 pixels |
| Number of execution units | 24 |
| Video adapter resolution | 4K-UHD 3840 × 2160 @60Hz |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Home & office |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| LAN controller | Intel® I219-V |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
| Ethernet interface type | Gigabit Ethernet |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0a |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 0 |
| Microphone in | No |
| DVI port | No |
| M.2 card slot (storage) | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Anthrazit / Schwarz |

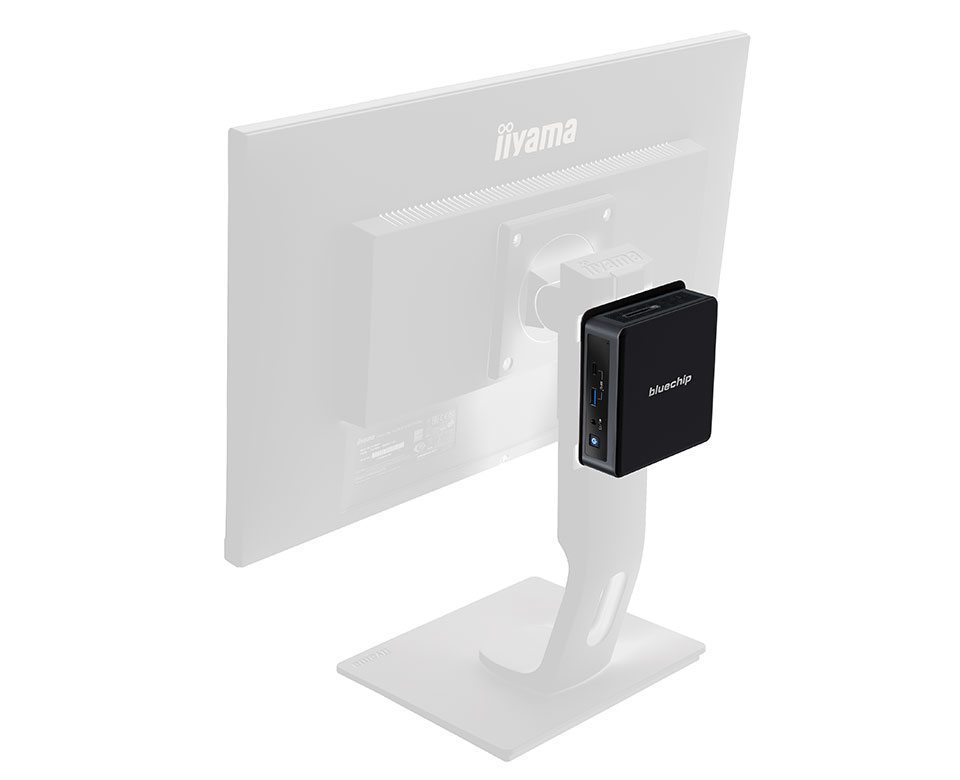

| VESA mounting | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Anthracite, Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel TSX-NI | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 196448 |
| Processor package size | 46 x 24 mm |
| Supported instruction sets | SSE4.1, SSE4.2, AVX 2.0 |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | Yes |
| Intel® My WiFi Technology (Intel® MWT) | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 117 mm |
| Depth | 112 mm |
| Height | 38 mm |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
| Certification | CE |
