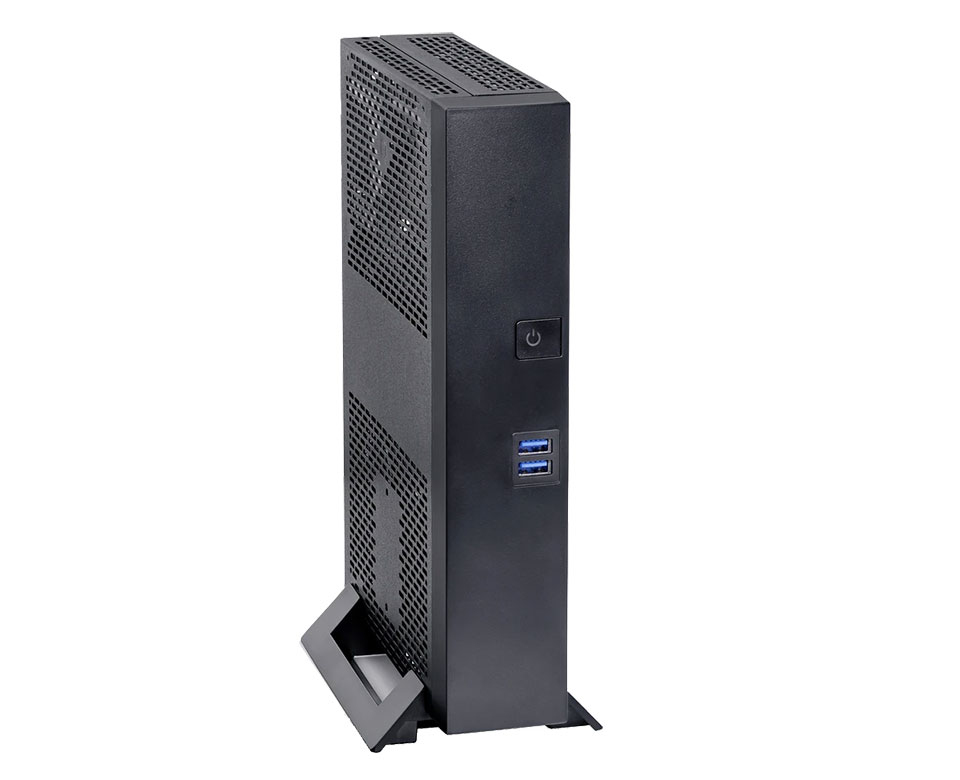

BUSINESSline M14100k-P
Model BUSINESSline M14100k-PPart no. 556599EAN 4250749711606
53 specifications
- ProcessorAMD Ryzen Embedded R1000
- Memory4 GB
- Storage250 GB
- GraphicsNot available
- TypeMini PC
- Processor manufacturerAMD
Overview
- Processor
- AMD Ryzen Embedded R1000
- Memory
- 4 GB
- Storage
- 250 GB
- Graphics
- Not available
- Type
- Mini PC
- Processor manufacturer
- AMD
- Brand
- bluechip
- Category
- PCs/Workstations
- Model
- BUSINESSline M14100k-P
- Part number
- 556599
- EAN / UPC
- 4250749711606
- Also known as
- bluechip BUSINESSline M14100k-P AMD Embedded R1305G SoC Dual-Core / bis zu 2.80 GHz, 4 GB DDR4, 250 GB 2,5" SSD, 2 × RJ45 (1 Gb/s), AMD Radeon™ Vega Graphics, o
Specifications
53 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Embedded R1000 |
| Processor model | R1305G |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor frequency | 1.5 GHz |
| Processor cache | 4 MB |
| Maximum turbo power | 10 W |
| Processor base power | 8 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 3200 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Total SSDs capacity | 250 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 250 GB |
| SSD interface | SATA III |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Vega Graphics |
| On-board graphics card model | AMD Radeon Vega 3 |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Motherboard chipset | AMD SoC |
| Audio output channels | 5.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 3 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x4 (Gen 3.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Certified refurbished | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC256 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 191 mm |
| Height | 52 mm |
