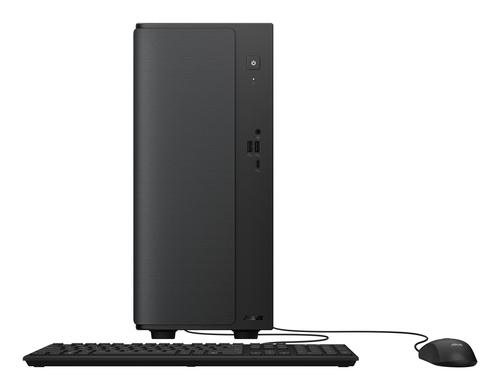

V500 Mini Tower VM701MG-0R54300060 Copilot+ PC AMD Ryzen™ AI 5 430
16 GB DDR5-SDRAM 512 GB SSD PC Black
Model VM701MG-0R54300060Part no. 90PF06D1-M002T0EAN 199291755345
85 specifications
- ProcessorAMD Ryzen™ AI 5
- Memory16 GB
- Storage512 GB
- GraphicsNot available
- TypePC
- OSNo
Overview
- Processor
- AMD Ryzen™ AI 5
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- PC
- OS
- No
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- VM701MG-0R54300060
- Part number
- 90PF06D1-M002T0
- EAN / UPC
- 199291755345, 4711636755344
- Also known as
- ASUS V500 Mini Tower VM701MG-0R54300060 Copilot+ PC AMD Ryzen™ AI 5 430 16 GB DDR5-SDRAM 512 GB SSD PC Black
Specifications
85 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ AI 5 |
| Processor generation | AMD Ryzen AI 400 Series |
| Processor model | 430 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.5 GHz |
| Processor frequency | 2 GHz |
| L2 cache | 4 MB |
| L3 cache | 8 MB |
| Processor cache type | L2 & L3 |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | Yes |
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 58 TOPs |
| NPU performance up to | 50 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory data transfer rate | 5600 MT/s |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 840M |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Everyday |
| Password protection | Yes |
| Password protection type | HDD, User |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi | No |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-in | Yes |
| Microphone in | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | Dark Wood |
| Volume | 15 L |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | No |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158.2 mm |
| Depth | 301.7 mm |
| Height | 356.8 mm |
| Weight | 6 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | REACH, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
| Keyboard layout | QWERTY |
| Keyboard language | English |
