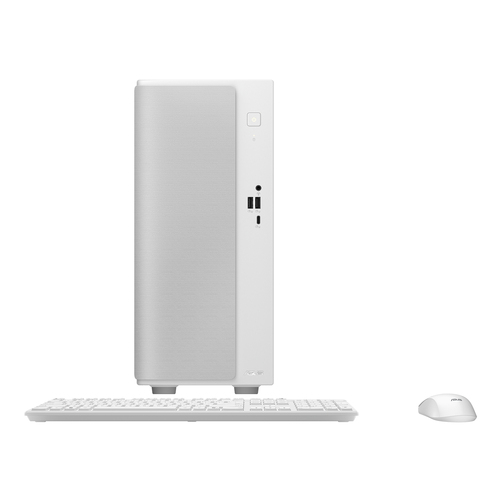

V500 Mini Tower VM501MH-0R7260042W AMD Ryzen™ 7 260
16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home PC White
Model VM501MH-0R7260042WPart no. 90PF0642-M00640EAN 4711636392730
83 specifications
- ProcessorAMD Ryzen™ 7
- Memory16 GB
- Storage1 TB
- GraphicsNot available
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- VM501MH-0R7260042W
- Part number
- 90PF0642-M00640
- EAN / UPC
- 4711636392730
- Also known as
- ASUS V500 Mini Tower VM501MH-0R7260042W AMD Ryzen™ 7 260 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home PC White
Specifications
83 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 200 Series |
| Processor model | 260 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache type | L2 & L3 |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 38 TOPs |
| NPU performance up to | 16 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 780M |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Everyday |
| Password protection | Yes |
| Password protection type | User, HDD |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000,10,100 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

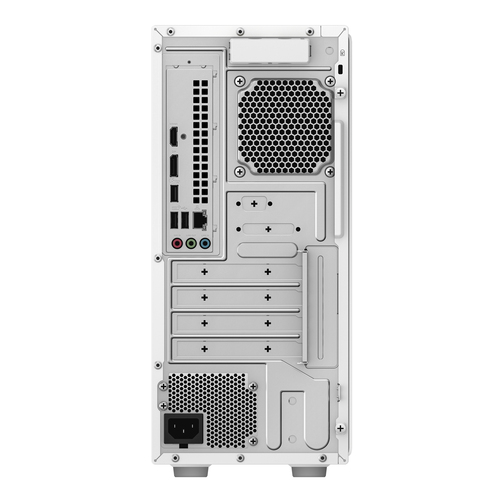

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Colour name | White |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | Microsoft 365 (30-day trial) |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 158.2 mm |
| Depth | 301.7 mm |
| Height | 356.8 mm |
| Weight | 6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 395 mm |
| Package depth | 246 mm |
| Package height | 510 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Keyboard included | Yes |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
