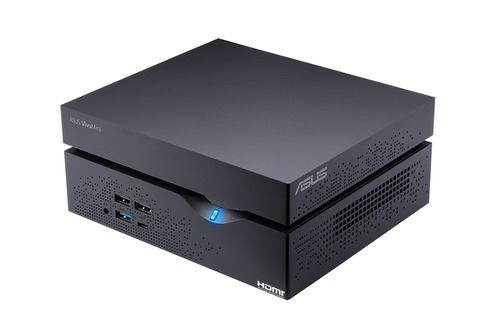

ASUS VivoMini VC66-710YRTA PC/workstation Intel® Core™ i3 i3-7100

4 GB DDR4-SDRAM 128 GB SSD Windows 10 Mini PC Black

Model VC66-710YRTA

140 specifications

ProcessorIntel® Core™ i3
Memory4 GB
Storage128 GB
GraphicsNot available
SpeedWi-Fi 5 (802.11ac)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i3
Memory: 4 GB
Storage: 128 GB
Graphics: Not available
Speed: Wi-Fi 5 (802.11ac)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: VC66-710YRTA
Part number: VC66-710YRTA
Also known as: ASUS VivoMini VC66-710YRTA PC/workstation Intel® Core™ i3 i3-7100 4 GB DDR4-SDRAM 128 GB SSD Windows 10 Mini PC Black

Specifications

140 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	7th gen Intel® Core™ i3
Processor model	i3-7100
Processor cores	2
Processor threads	4
Processor frequency	3.9 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Thermal Design Power (TDP)	51 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	S0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR3L-SDRAM, DDR4-SDRAM
Memory clock speeds supported by processor	1333,1600,2133,2400 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR4-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	2400 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	128 GB
Optical drive type	No
Storage media	SSD
Number of SSDs installed	1
SSD capacity	128 GB
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x5912
On-board graphics card OpenGL version	4.4

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H110

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt ports quantity	0
Thunderbolt 2 ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	Yes
Mini HDMI ports quantity	0
Mini DisplayPorts quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	1
Parallel ports quantity	0
Modem (RJ-11) ports	0

Power

Specification	Value
Power supply	120 W

Design

Specification	Value
Chassis type	Mini PC
Volume	2 L
VESA mounting	Yes
Cable lock slot	Yes
Cable lock slot type	Kensington
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 10
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	97455
Processor code	SR35C
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	177.4 mm
Depth	153 mm
Height	74.1 mm
Weight	1.5 kg

Packaging content

Specification	Value
VESA mount included	Yes
AC adapter included	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
