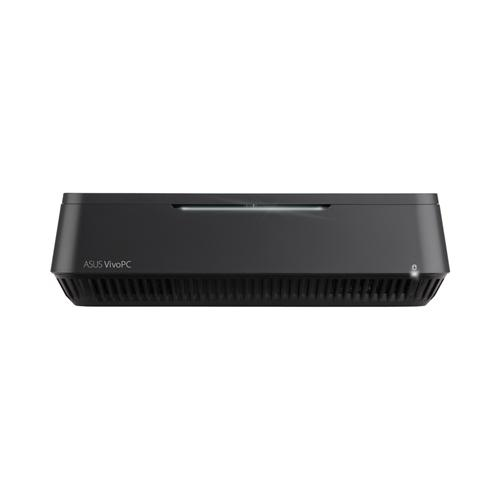

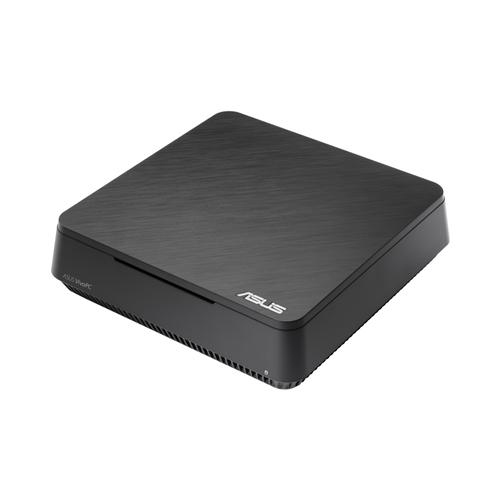

VivoPC VC60 Intel® Core™ i5 i5-3210M

4 GB DDR3-SDRAM 500 GB HDD Windows 8 Desktop Mini PC Black

Model VC60Part no. 90MS0021-M01700EAN 4716659637363

140 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: VC60
Part numbers: 90MS0021-M01700, 90MS0021-M02400, 90MS0021-M00840, 90MS0021-M00830
EAN / UPC: 4716659637363, 4716659637349, 4712900102543
Also known as: ASUS VivoPC VC60 Intel® Core™ i5 i5-3210M 4 GB DDR3-SDRAM 500 GB HDD Windows 8 Desktop Mini PC Black

Specifications

140 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3210M
Processor cores	2
Processor threads	4
Processor boost frequency	3.1 GHz
Processor frequency	2.5 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3200 Mobile series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	35 W
Tjunction	105 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	BGA 1023
CPU multiplier (bus/core ratio)	25
Stepping	L1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM, DDR3L-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	No
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA II
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	MMC, SD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4000
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x166

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel HM76 Express

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth	Yes
Bluetooth version	4.0

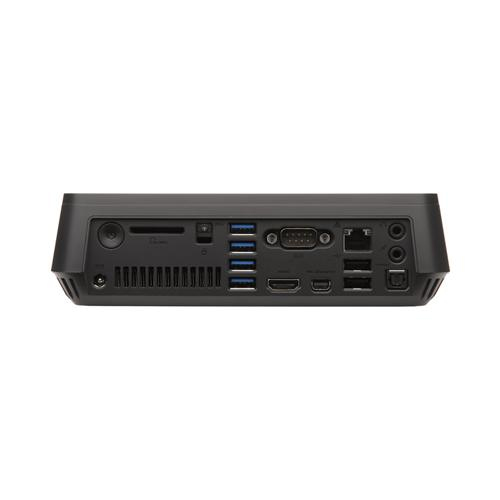

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
Mini DisplayPorts quantity	1
S/PDIF out port	Yes
Serial ports quantity	1

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Desktop
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Bundled software	Anti-Virus Trial Adobe Acrobat Reader ASUS WebStorage Intel Smart Connect Technology Office 2013 Trial Window Live

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	65708
Processor code	SR0N0
Processor package size	31.0 x 24.0 (BGA1023)
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
Integrated 4G WiMAX	Yes
