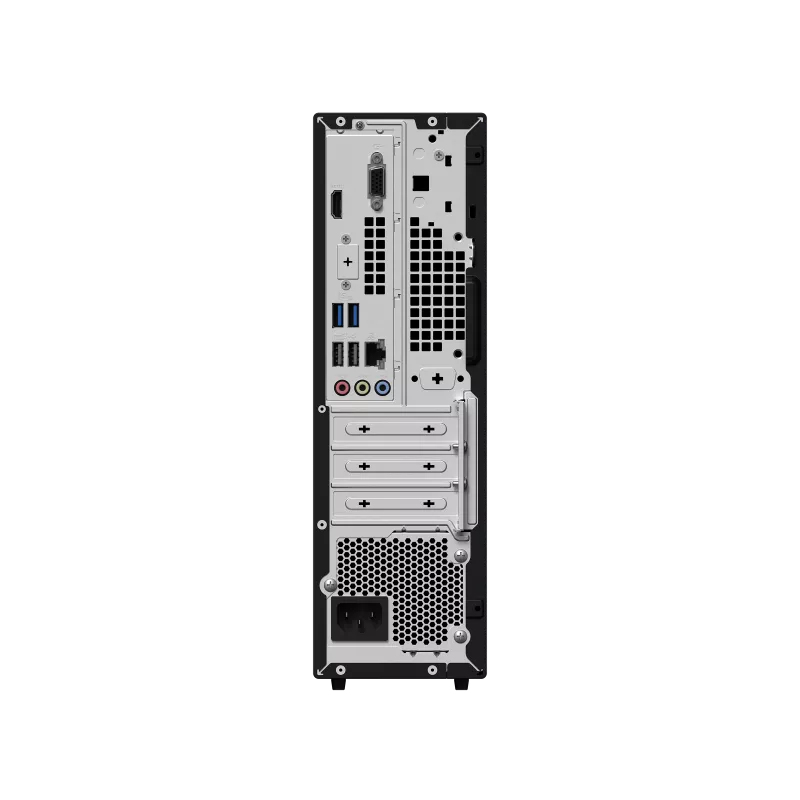

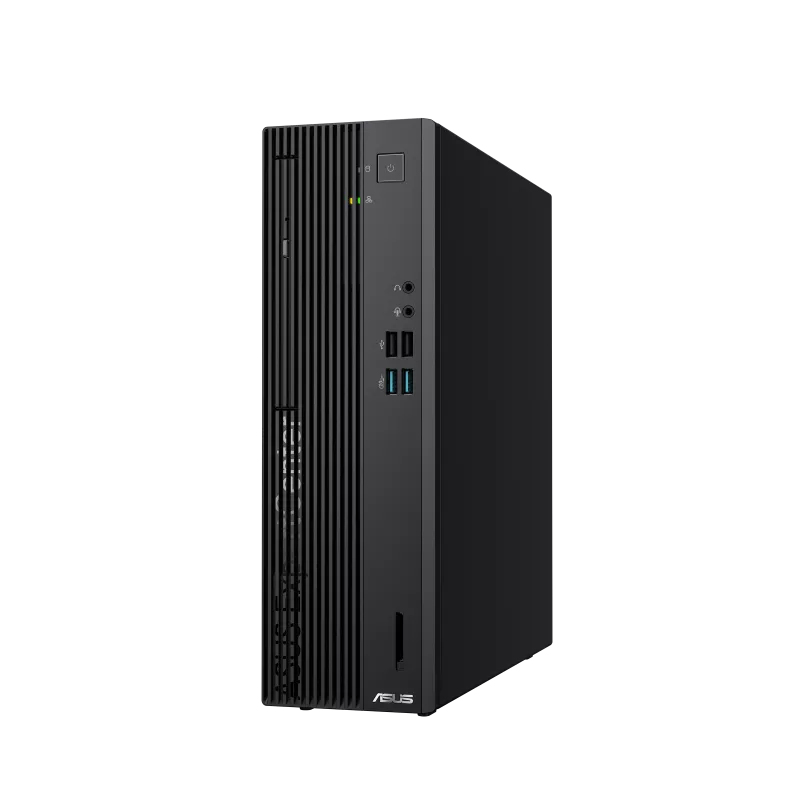

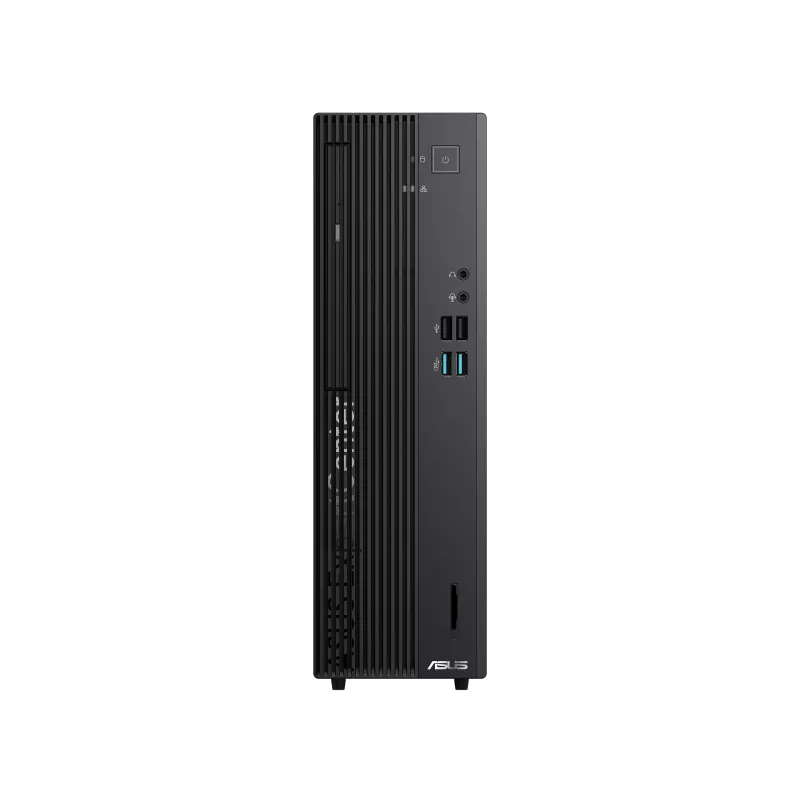

ExpertCenter D5 SFF S501SER-514500017W Intel® Core™ i5 i5-14500
16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home PC Grey
Model S501SER-514500017WPart no. 90PF05M2-M00TP0EAN 4711387945087
84 specifications
- ProcessorIntel® Core™ i5
- Memory16 GB
- Storage1 TB
- GraphicsNot available
- SpeedWi-Fi 6E (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i5
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- Not available
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- S501SER-514500017W
- Part number
- 90PF05M2-M00TP0
- EAN / UPC
- 4711387945087
- Also known as
- ASUS ExpertCenter D5 SFF S501SER-514500017W Intel® Core™ i5 i5-14500 16 GB DDR5-SDRAM 1 TB SSD Windows 11 Home PC Grey
Specifications
84 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.6 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 154 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Home & office |
| Motherboard chipset | Intel B760 |
| Trusted Platform Module (TPM) | Yes |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Number of front USB ports | 4 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 4 |
| Number of rear audio ports | 3 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 180 W |
| 80 PLUS certification | 80 PLUS Bronze |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Colour name | Extreme Dark Gray (2D) |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Grey |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Trial software | McAfee®, Microsoft 365 |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 296 mm |
| Height | 309 mm |
| Weight | 6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 168 mm |
| Package depth | 490 mm |
| Package height | 210 mm |
| Package weight | 6.25 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
