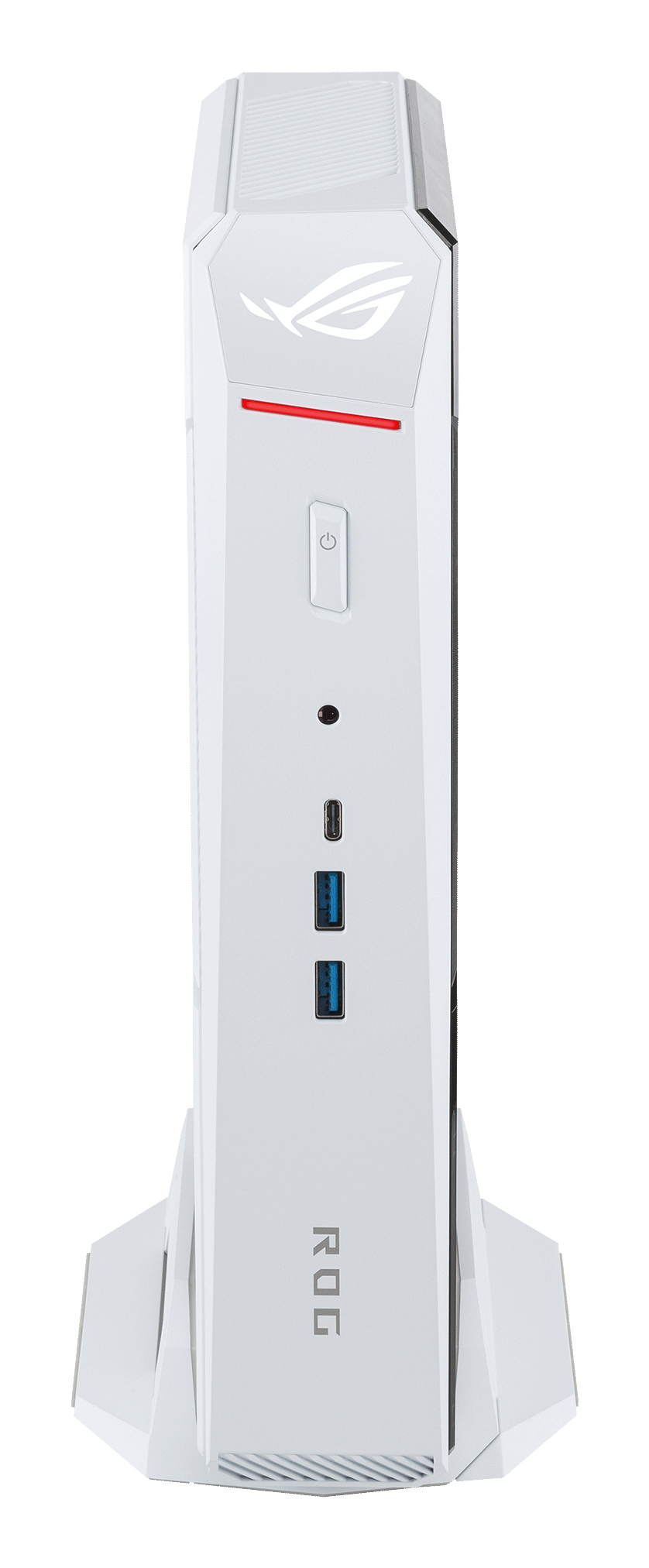

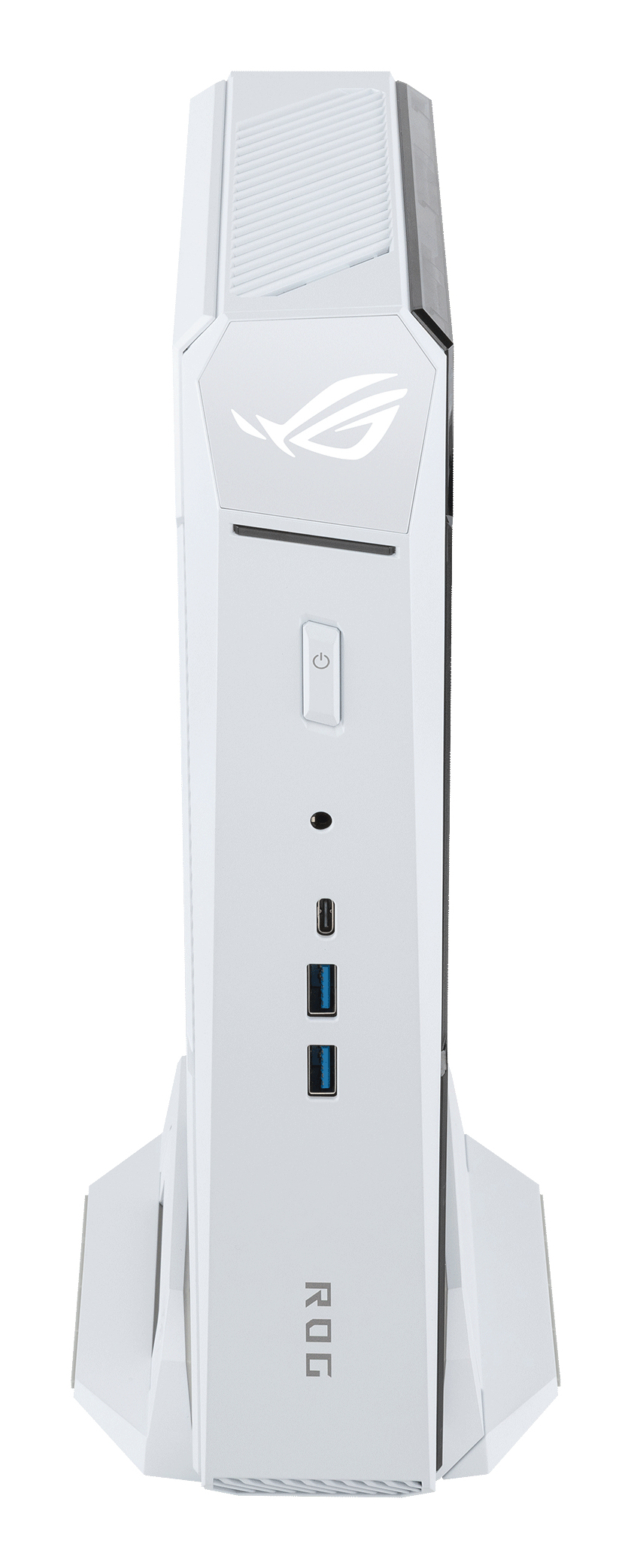

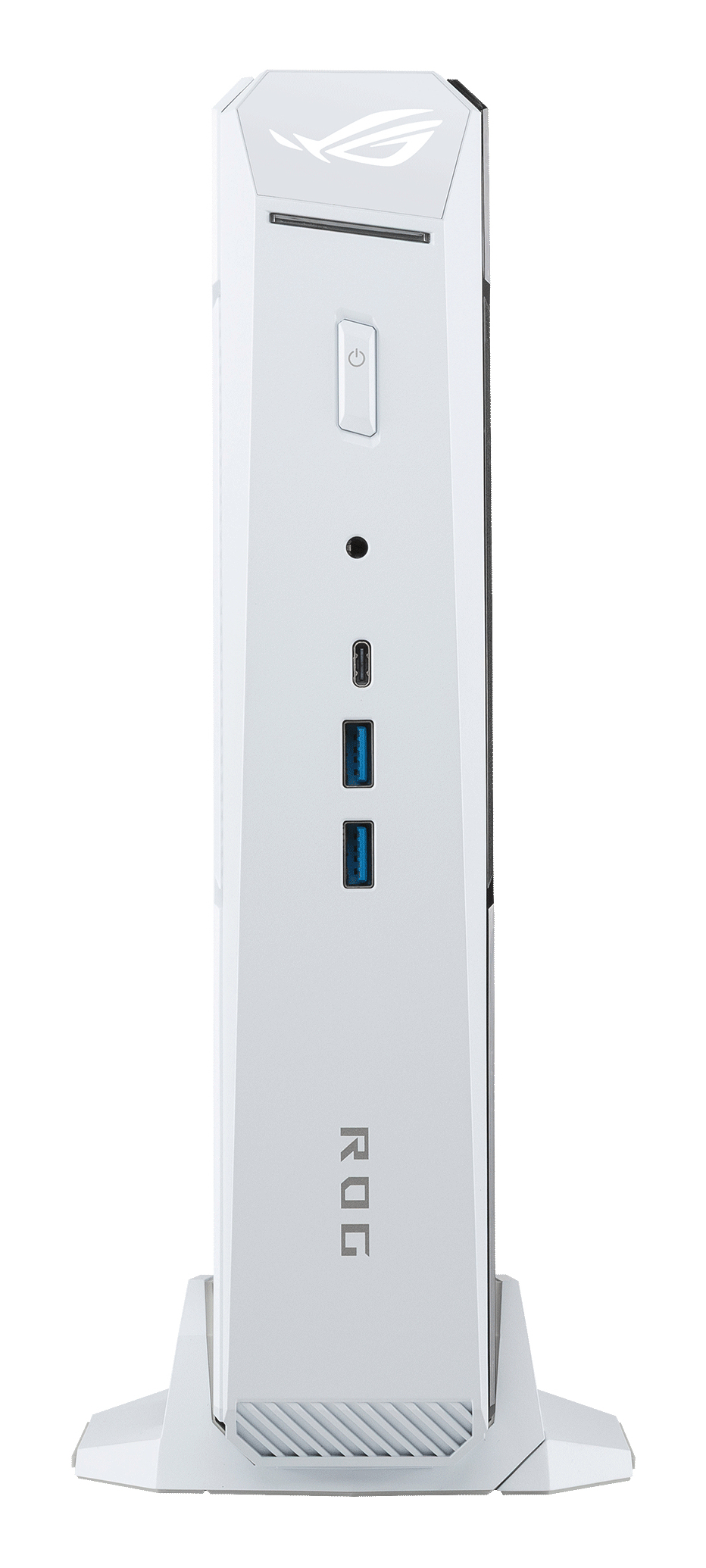

ROG RNUC16JNK9X2AAAU Intel Core Ultra 9 290HX Plus
64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home Mini PC White
Model RNUC16JNK9X2AAAUPart no. 90AS00S2-M00290EAN 199291629653
87 specifications
- ProcessorIntel Core Ultra 9
- Memory64 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 5080
- SpeedWi-Fi 7 (802.11be)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 9
- Memory
- 64 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 5080
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- RNUC16JNK9X2AAAU
- Part number
- 90AS00S2-M00290
- EAN / UPC
- 199291629653
- Also known as
- ASUS ROG RNUC16JNK9X2AAAU Intel Core Ultra 9 290HX Plus 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5080 Windows 11 Home Mini PC White
Specifications
87 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 290HX Plus |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.5 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.5 GHz |
| Efficient-core Max Turbo Frequency | 4.7 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 1.8 GHz |
| Processor cache | 36 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 2114 |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Market positioning | Gaming |
| Motherboard chipset | Intel HM870 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| LAN controller | Realtek RTL8125D |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer | Intel |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| WLAN controller model | Killer Wi-Fi BE1750x |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

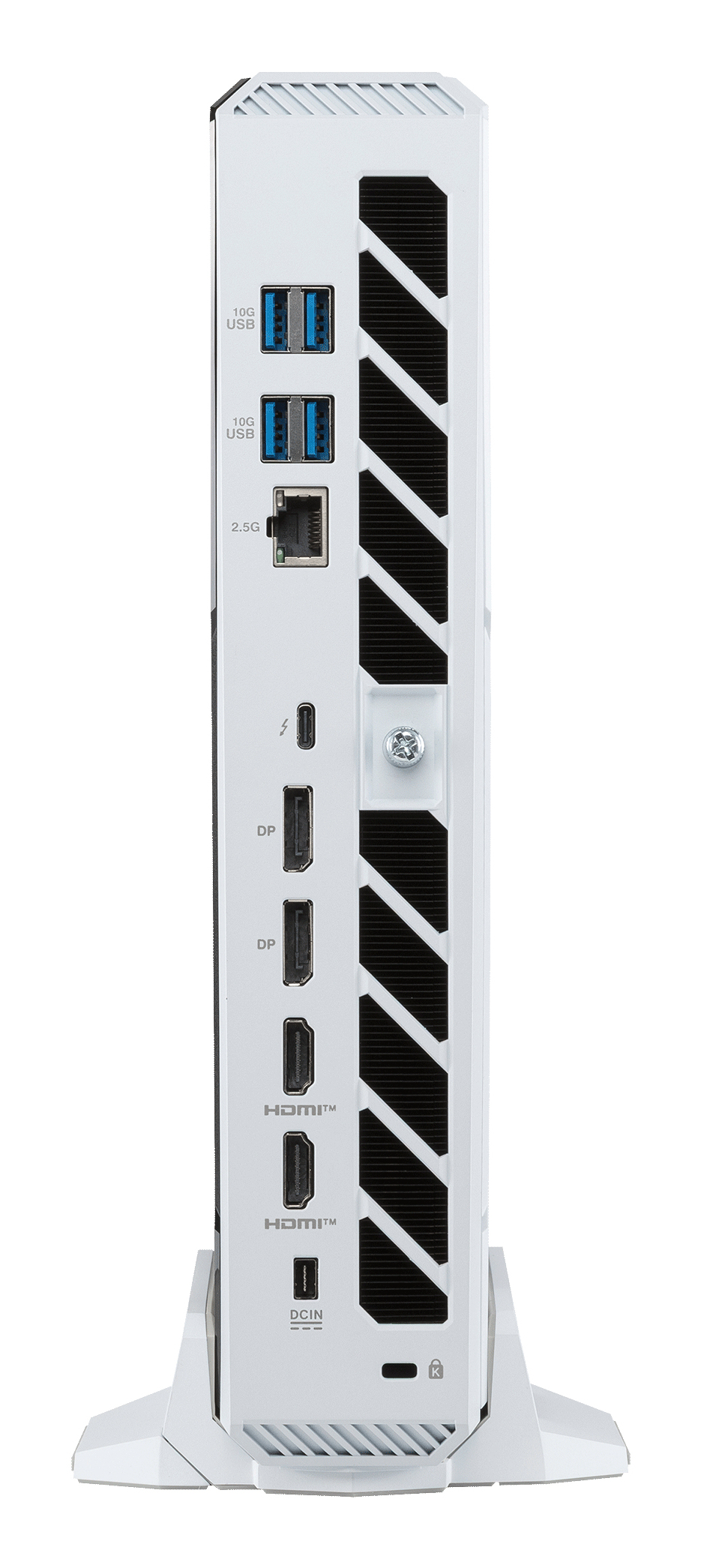

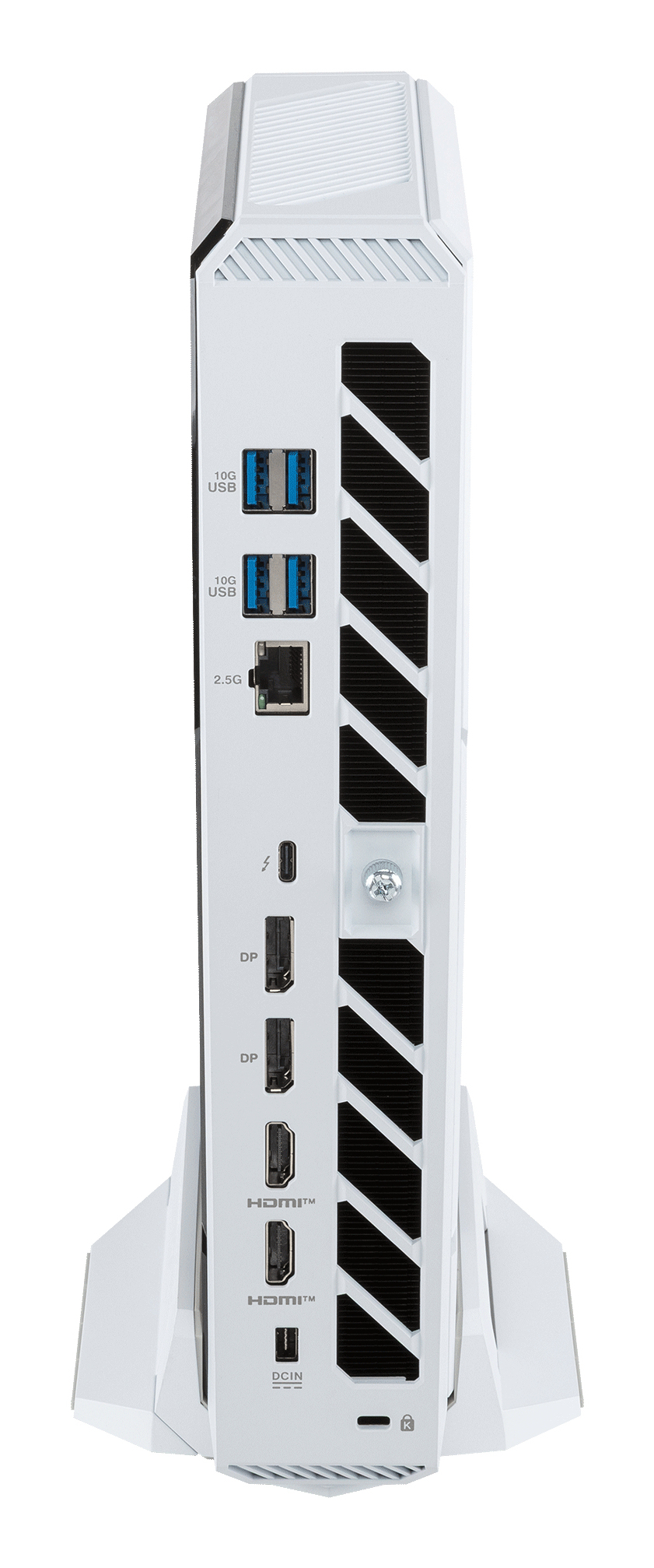

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 380 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | White |
| Product colour | White |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio chip | Realtek ALC3342-CG |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 282.4 mm |
| Depth | 189.5 mm |
| Height | 56.5 mm |
| Weight | 3.12 kg |
