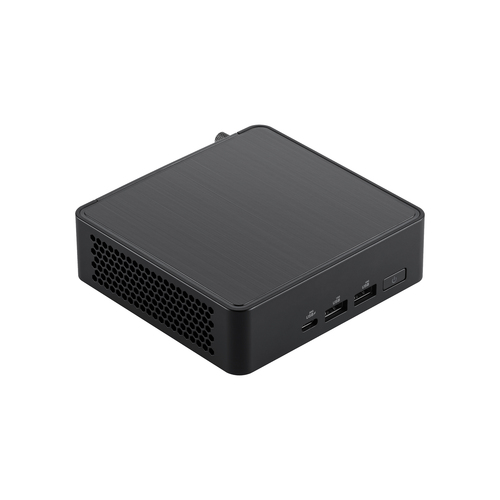

NUC 14 Pro RNUC14RVKU7088C0I Intel Core Ultra 7 155H

32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

Model RNUC14RVKU7088C0IPart no. 90AS0071-M000F0EAN 197105705692

82 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: RNUC14RVKU7088C0I
Part number: 90AS0071-M000F0
EAN / UPC: 197105705692, 4711387705698
Also known as: ASUS NUC 14 Pro RNUC14RVKU7088C0I Intel Core Ultra 7 155H 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black

82 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Core Ultra 7
Processor generation	Intel® Core™ Ultra (Series 1)
Processor model	155H
Processor cores	16
Processor threads	22
Processor boost frequency	4.8 GHz
Performance cores	6
Efficient cores	8
Low Power Efficient-cores	2
Performance-core Max Turbo Frequency	4.8 GHz
Efficient-core Max Turbo Frequency	3.8 GHz
Low Power Efficient-core Max Turbo Frequency	2.5 GHz
Performance-core base frequency	1.4 GHz
Efficient-core base frequency	0.9 GHz
Low Power Efficient-core Base Frequency	700 MHz
Processor cache	24 MB
Processor cache type	Smart Cache
Maximum turbo power	115 W
Processor base power	28 W

Specification	Value
Neural processor unit (NPU)	Intel AI Boost
Sparsity support	Yes
Windows Studio effects support	Yes
AI software frameworks supported by NPU	DirectML, ONNX RT, OpenVINO, Windows ML

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel Arc Graphics
On-board graphics card model	Intel Arc Graphics

Specification	Value
Product type	Mini PC
Market positioning	Everyday

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN controller manufacturer	Intel
Wi-Fi standards	Wi-Fi 6E (802.11ax)
WLAN controller model	Intel Wi-Fi 6E AX211
Bluetooth	Yes
Bluetooth version	5.3

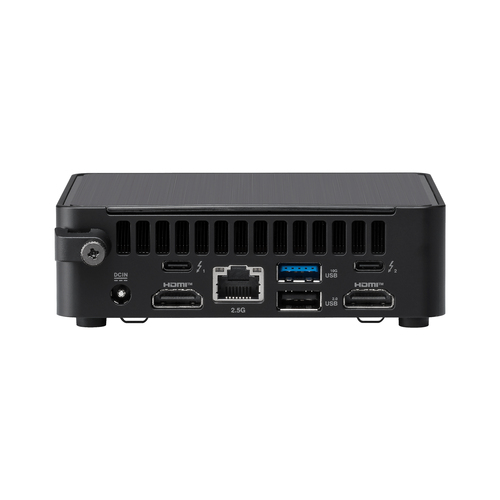

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
USB 3.2 Gen 2x2 Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
Intel® Thunderbolt 4	Yes
Thunderbolt 4 ports quantity	2
HDMI ports quantity	2
HDMI version	2.1
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
