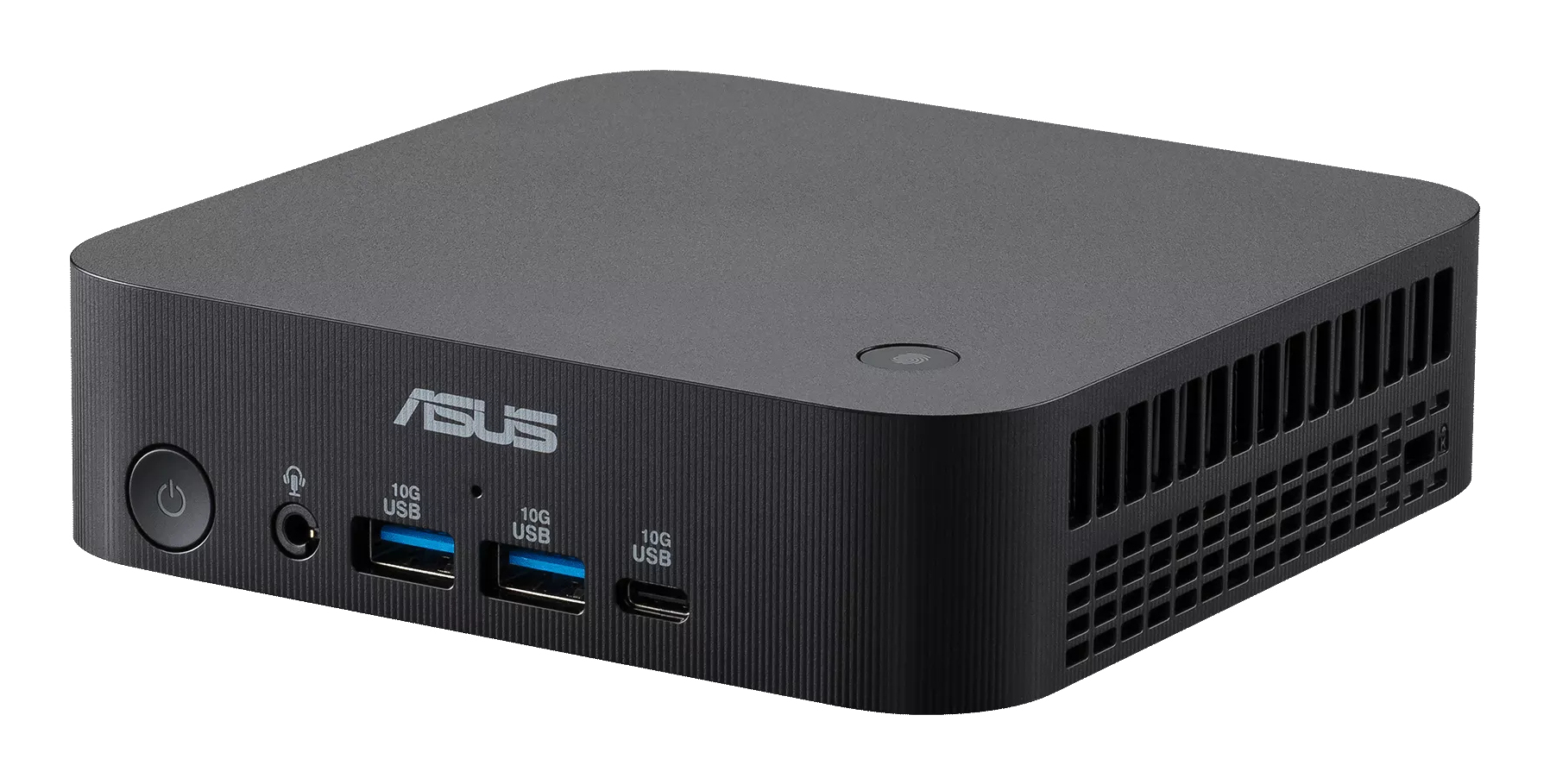

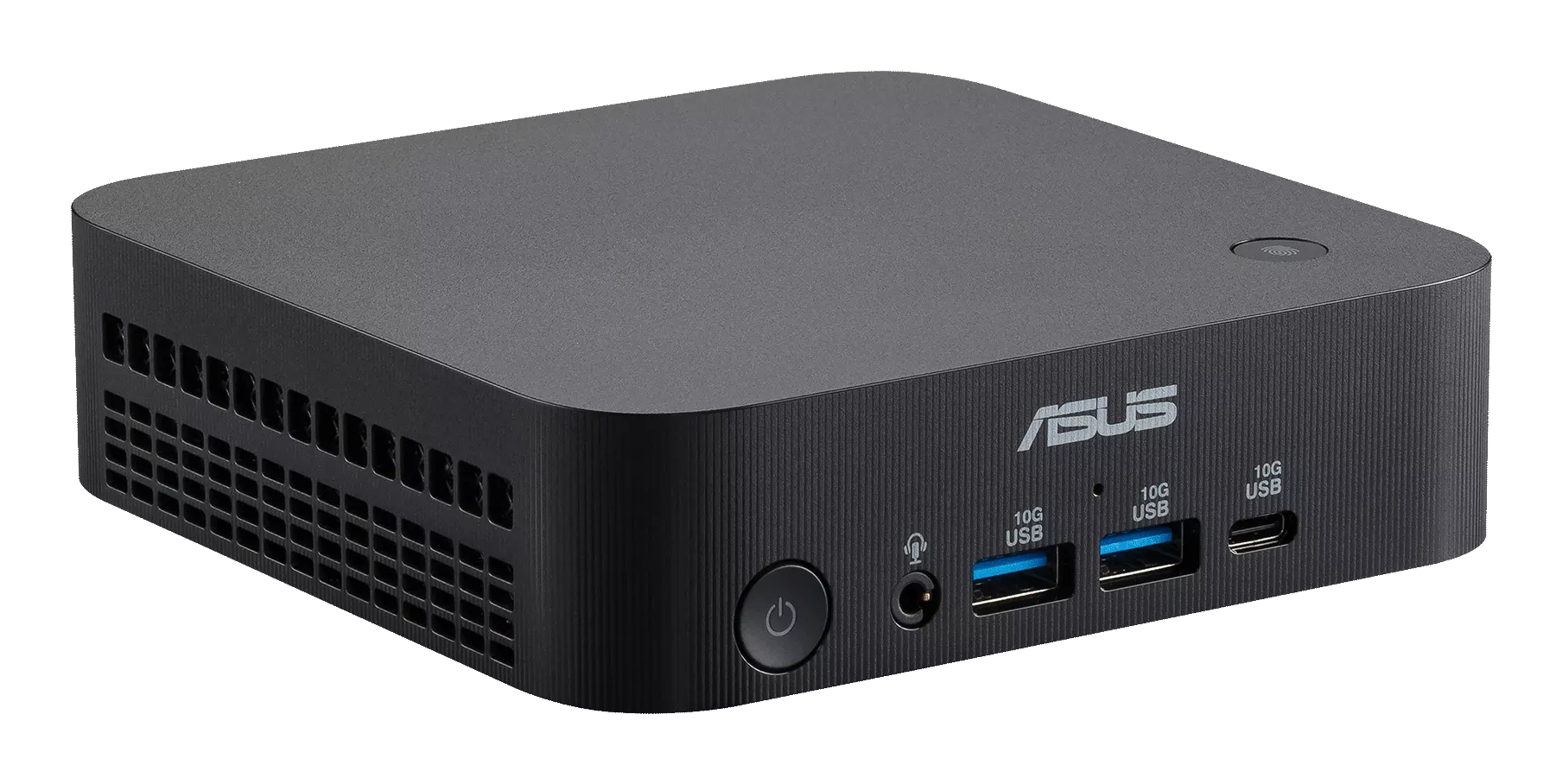

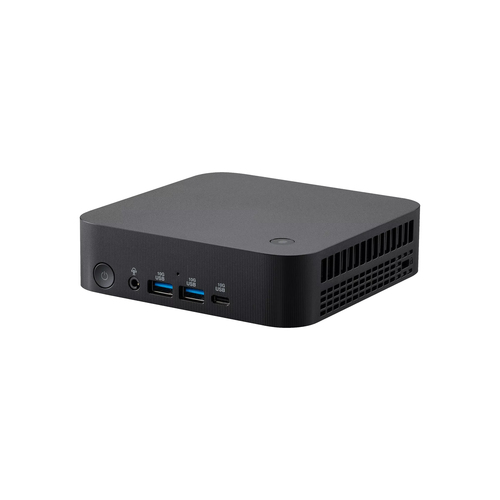

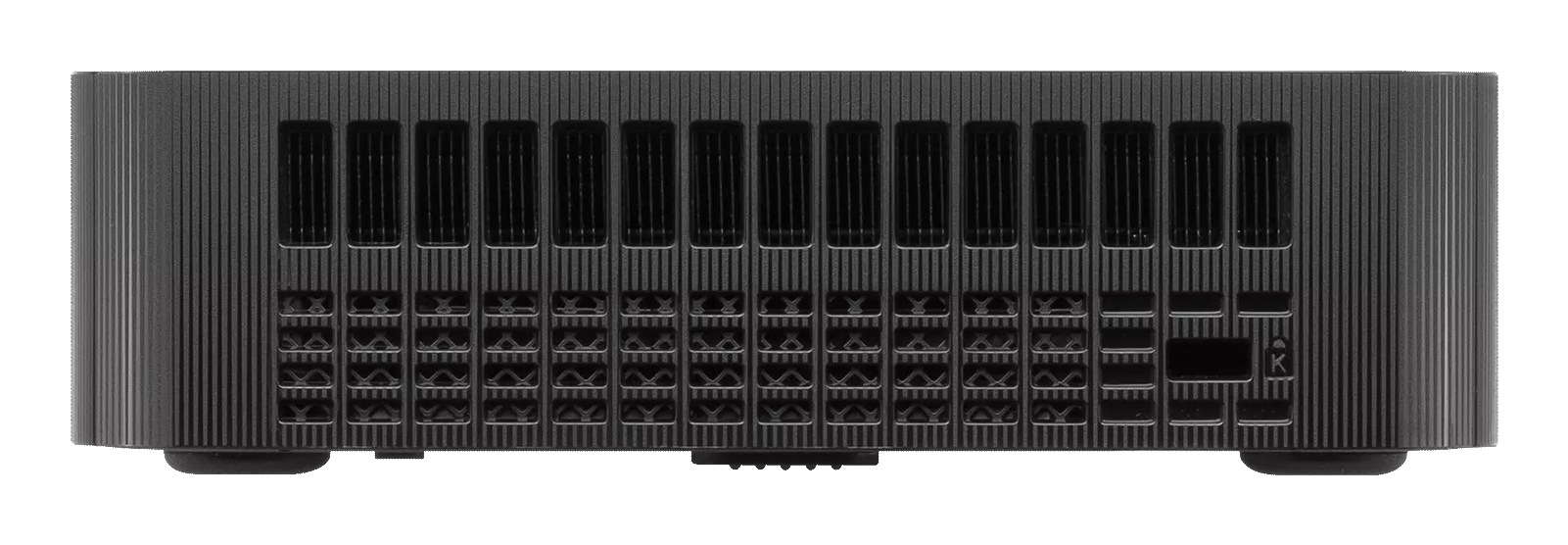

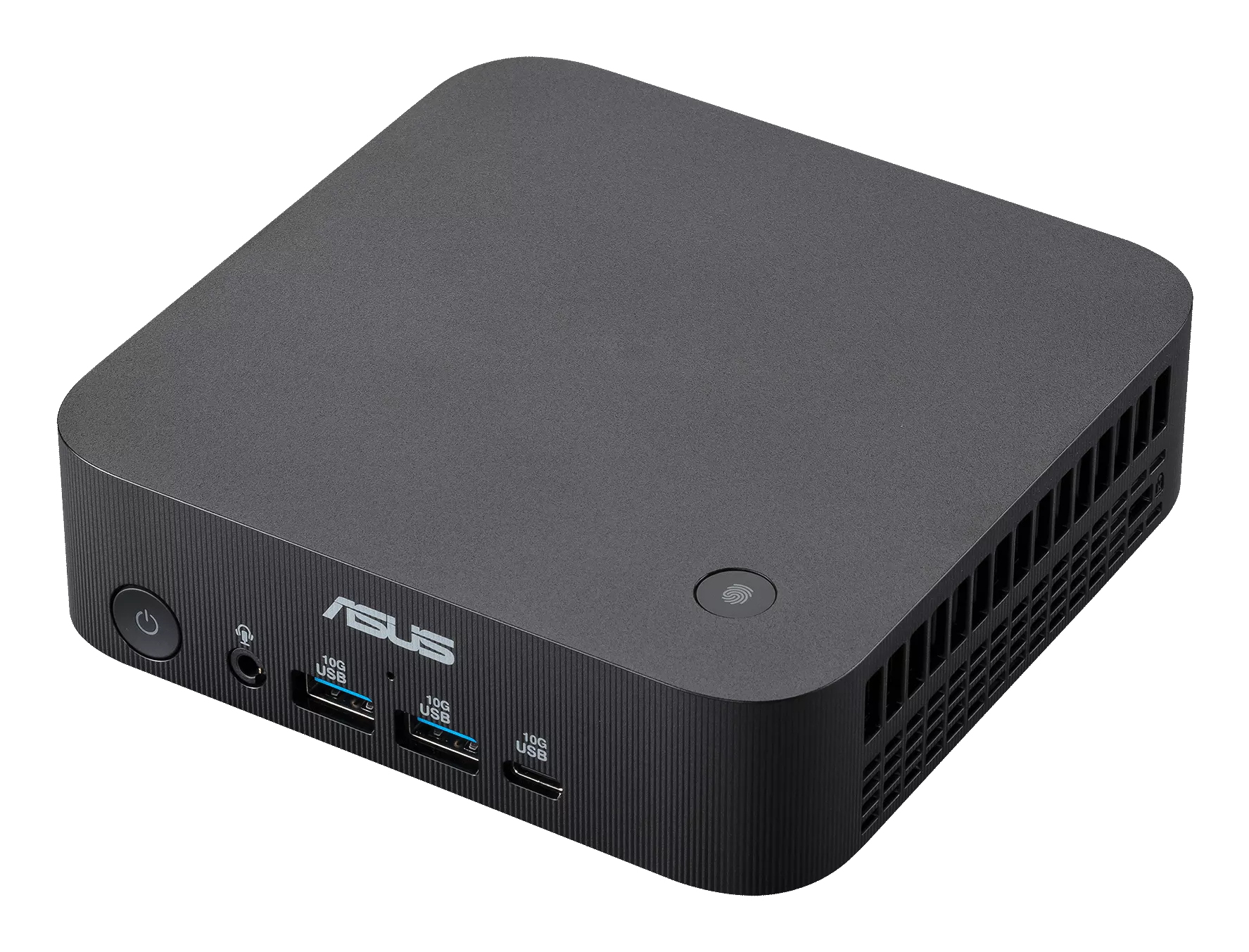

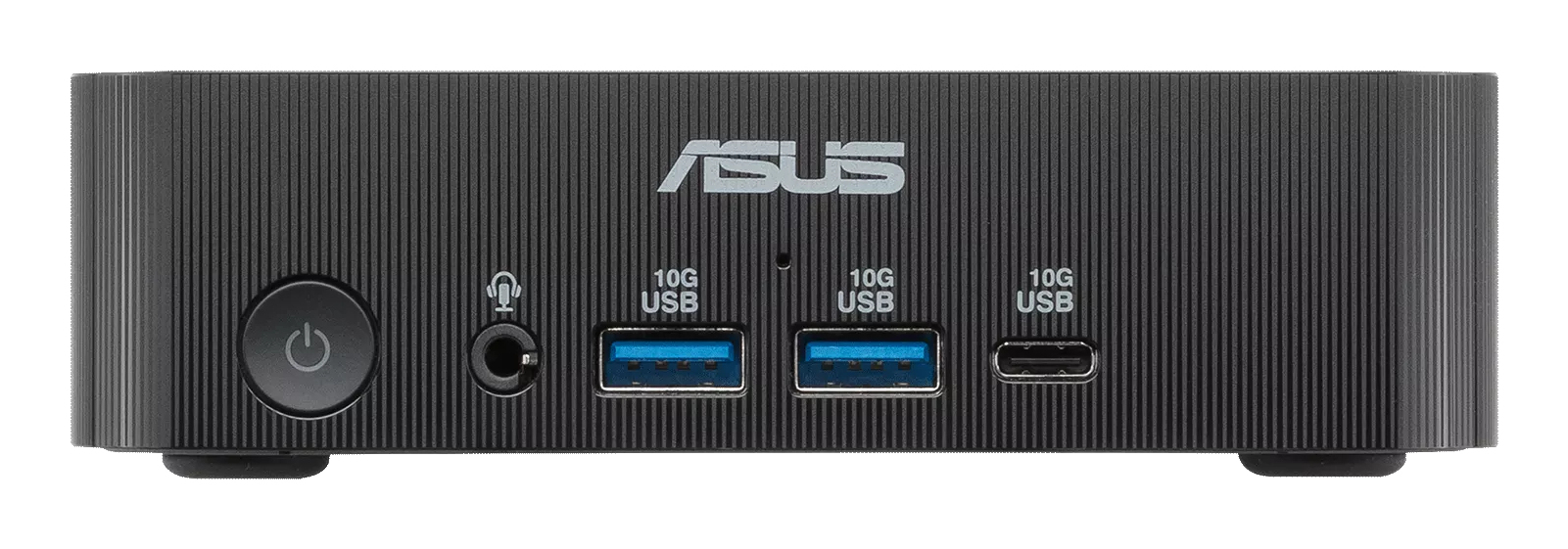

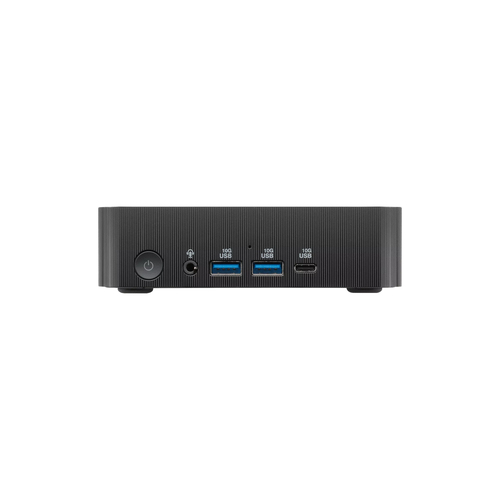

ExpertCenter PN54-S1-SYS735PETL0 AMD Ryzen™ 7 260
32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Model PN54-S1-SYS735PETL0Part no. 90MS0391-M00020EAN 199291204935
66 specifications
- ProcessorAMD Ryzen™ 7
- Memory32 GB
- Storage512 GB
- GraphicsNot available
- SpeedWi-Fi 7 (802.11be)
- TypeMini PC
Overview
- Processor
- AMD Ryzen™ 7
- Memory
- 32 GB
- Storage
- 512 GB
- Graphics
- Not available
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PN54-S1-SYS735PETL0
- Part number
- 90MS0391-M00020
- EAN / UPC
- 199291204935, 4711636204934
- Also known as
- ASUS ExpertCenter PN54-S1-SYS735PETL0 AMD Ryzen™ 7 260 32 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Specifications
66 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 200 Series |
| Processor model | 260 |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 5.1 GHz |
| Processor frequency | 3.8 GHz |
| Processor cache type | L2 & L3 |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Neural processor unit (NPU) | AMD Ryzen AI |
| Total processor performance up to | 38 TOPs |
| NPU performance up to | 16 TOPs |
Memory
| Specification | Value |
|---|---|
| Internal memory | 32 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon |
| On-board graphics card model | AMD Radeon 780M |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB4 Gen 3x2 ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 120 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Colour name | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 130 mm |
| Depth | 130 mm |
| Height | 34 mm |
| Weight | 550 g |
Energy efficiency
ENERGY STAR certified
Computers · model PN54-S1 · certified Aug 7, 2025 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Typical energy consumption | 25.3 kWh/year |
| Short-idle power | 5.4 W |
| Long-idle power | 2.3 W |
| Sleep-mode power | 2.3 W |
| Off-mode power | 0.2 W |
