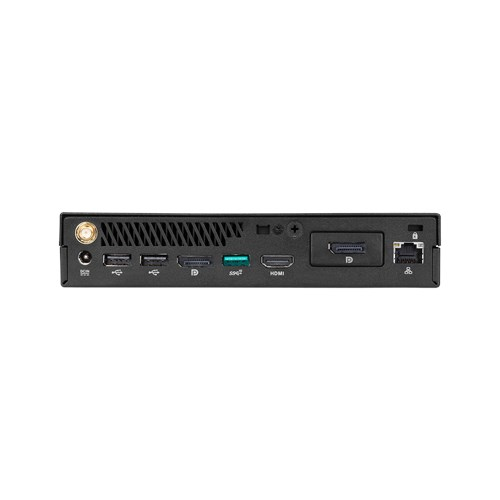

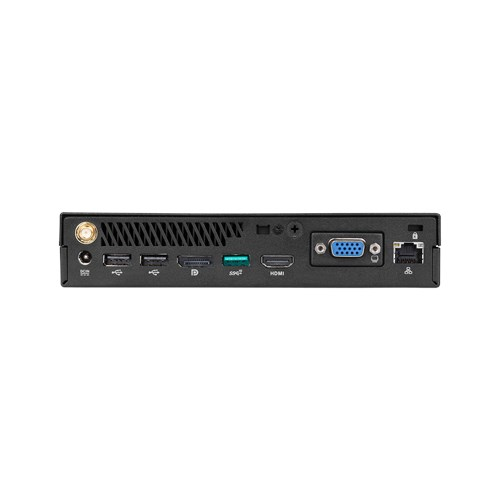

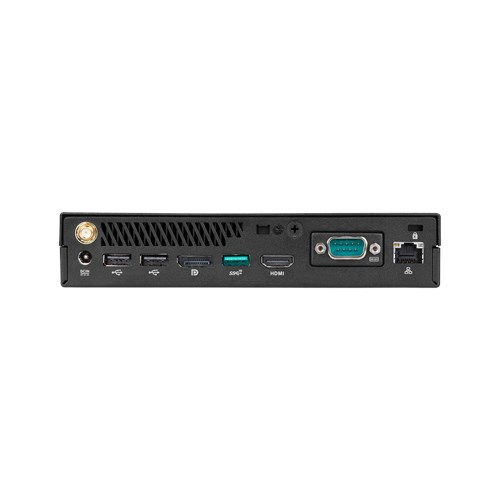

ASUS PB60-B3009ZD Intel® Core™ i3 i3-8100T

8 GB DDR4-SDRAM 628 GB HDD+SSD Windows 10 Pro Mini PC Black

Model PB60-B3009ZDPart no. 90MS01E1-M00090EAN 4718017022088

128 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: PB60-B3009ZD
Part number: 90MS01E1-M00090
EAN / UPC: 4718017022088
Also known as: ASUS PB60-B3009ZD Intel® Core™ i3 i3-8100T 8 GB DDR4-SDRAM 628 GB HDD+SSD Windows 10 Pro Mini PC Black

128 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor model	i3-8100T
Processor cores	4
Processor threads	4
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Coffee Lake
Thermal Design Power (TDP)	35 W
Configurable TDP-down	25 W
Configurable TDP-down frequency	2.4 GHz
Tjunction	82 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1151 (Socket H4)
Stepping	B0
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Memory bandwidth supported by processor (max)	37.5 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	628 GB
Optical drive type	No
Storage media	HDD+SSD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	M.2
Card reader integrated	No

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E91
On-board graphics card OpenGL version	4.5

Specification	Value
Product type	Mini PC

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes

Specification	Value
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Processor ARK ID	129944
Processor code	SR3Y8
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015A
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
