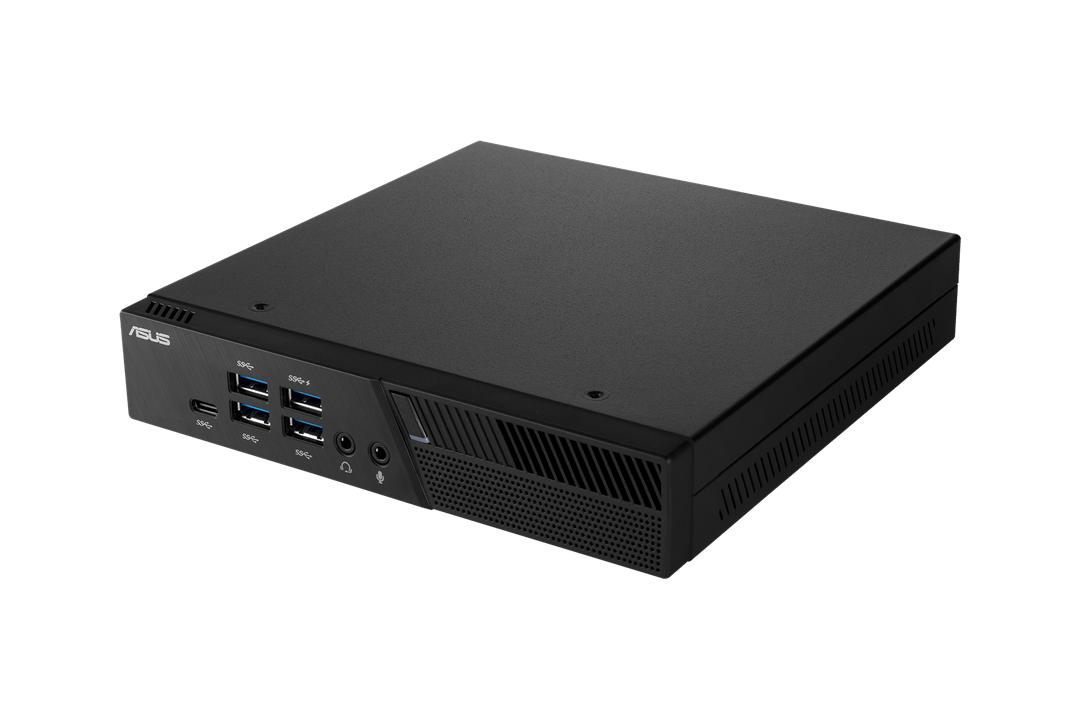

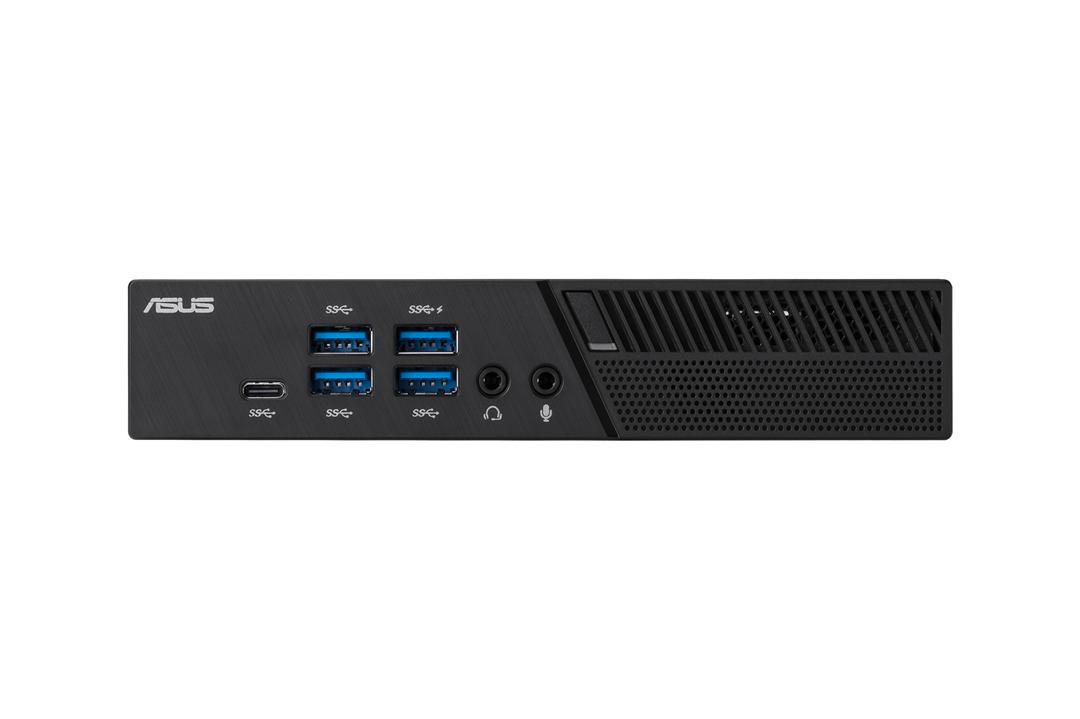

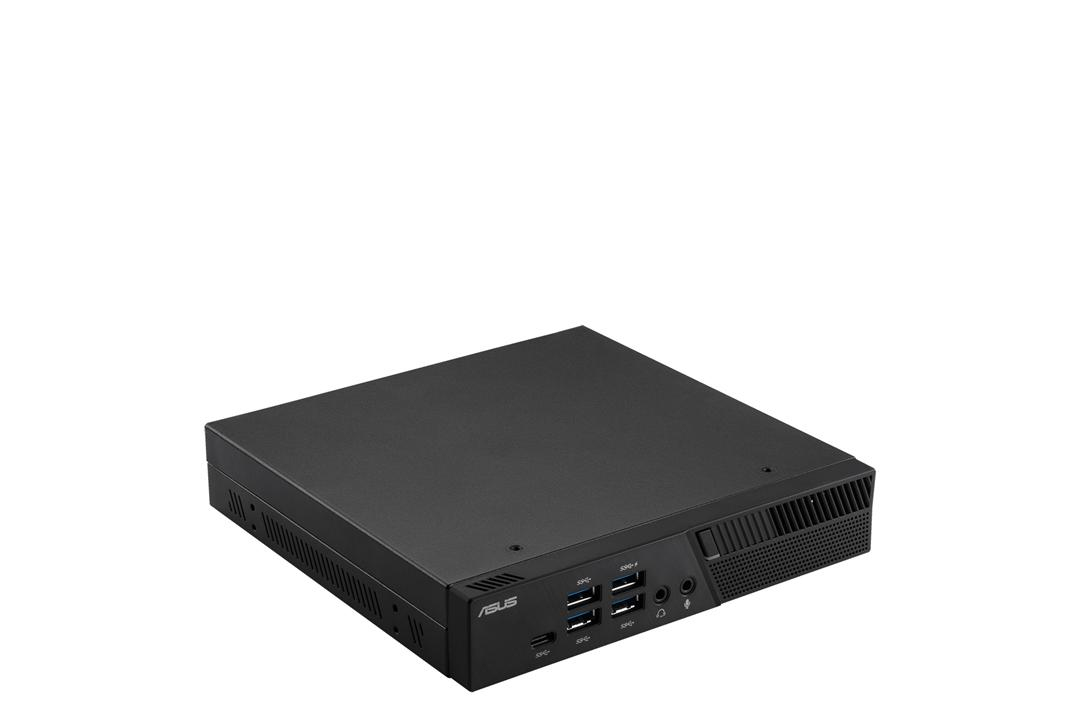

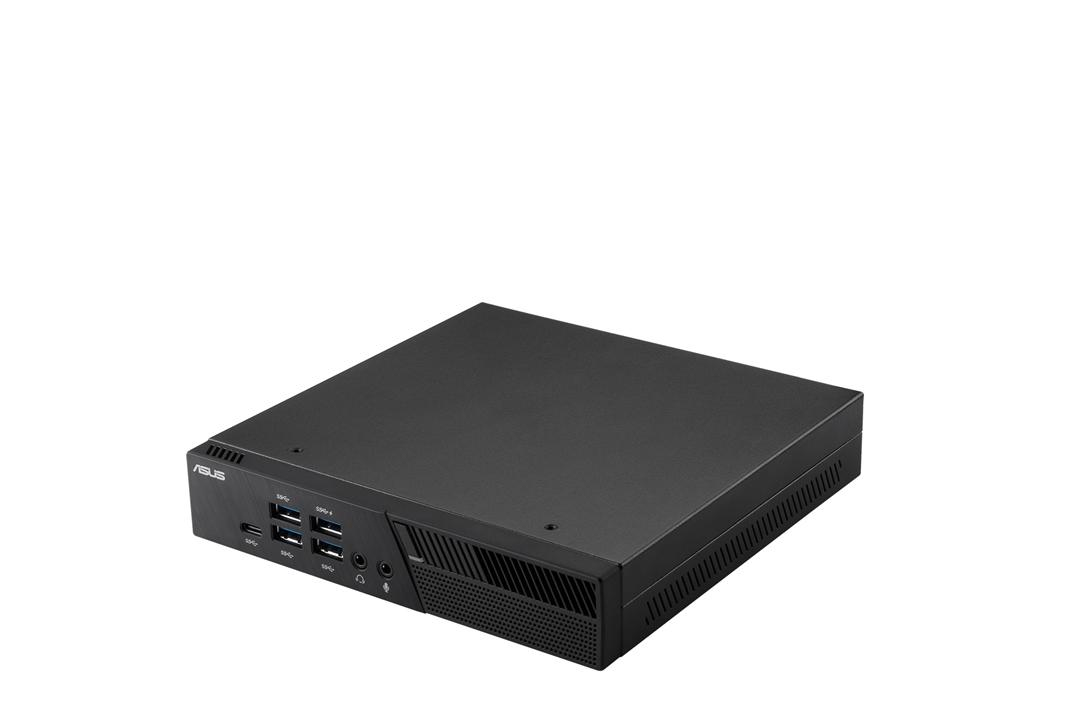

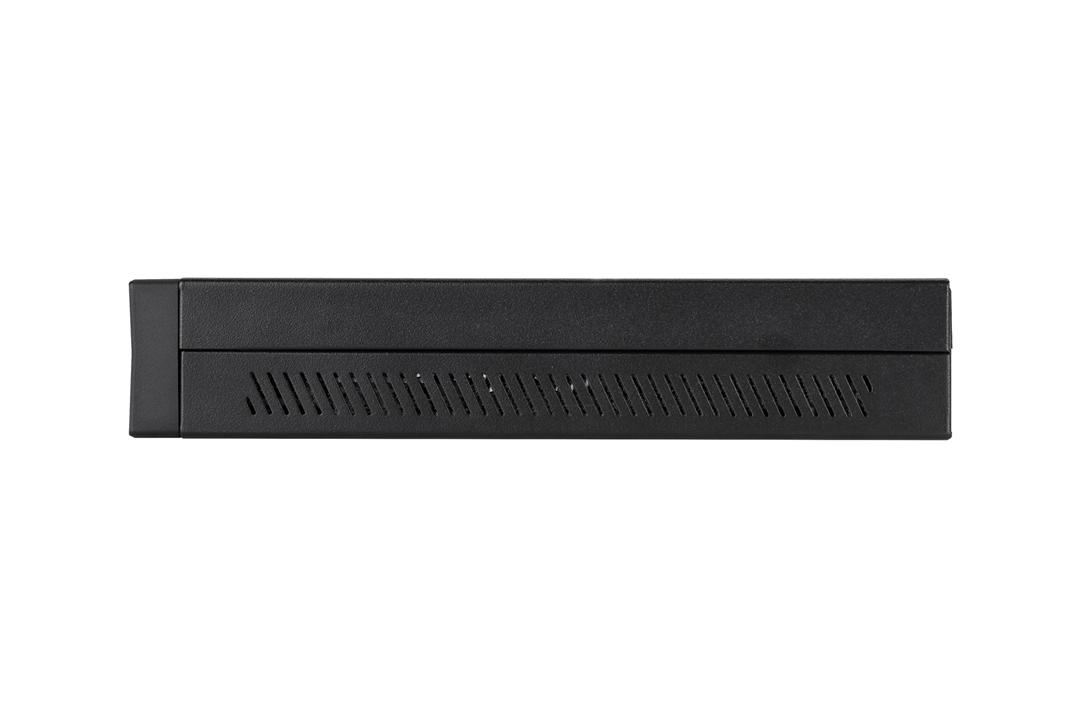

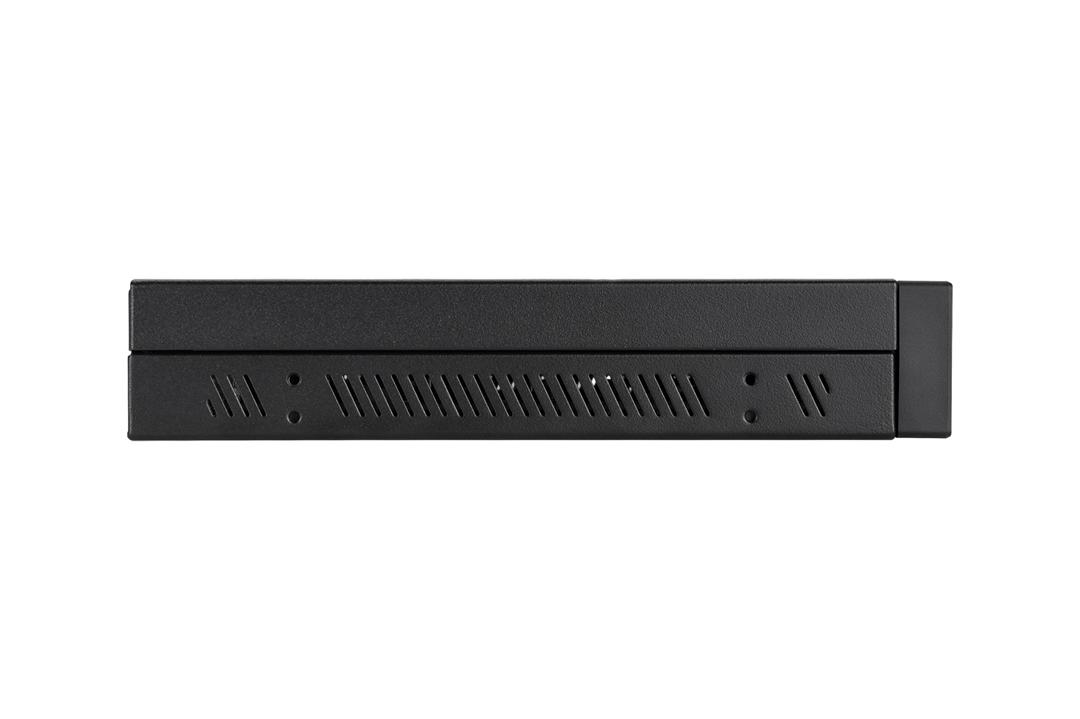

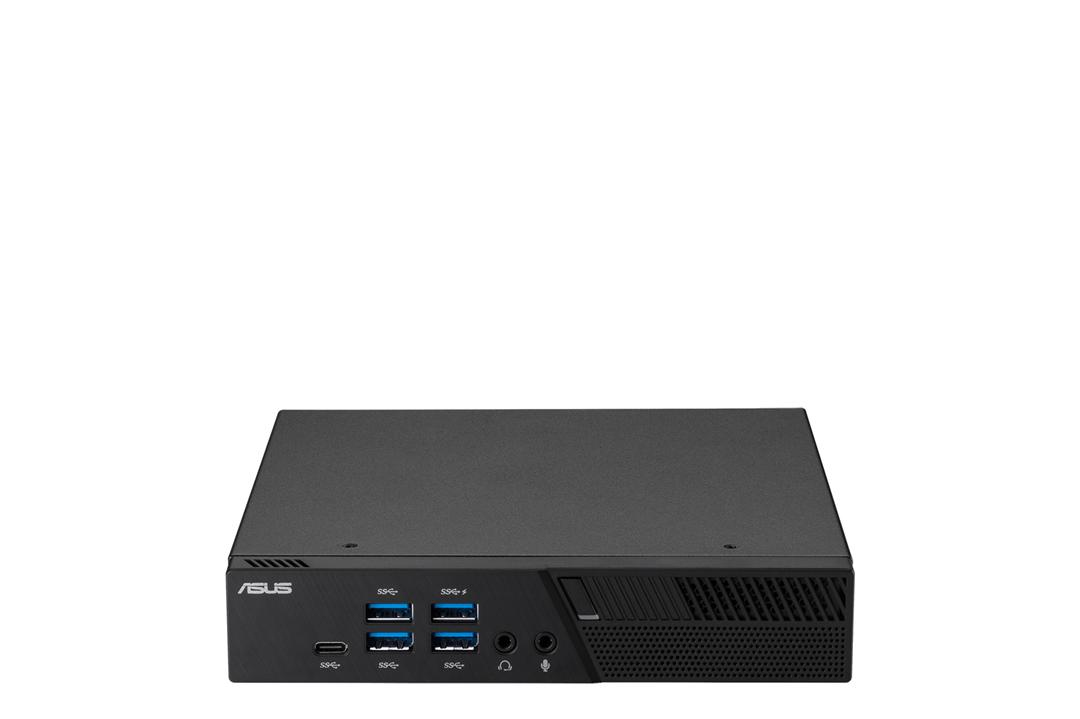

PB40-BC166ZV Intel® Celeron® N4000
4 GB DDR4-SDRAM 64 GB eMMC Windows 10 Pro Mini PC Black
Model PB40-BC166ZVPart no. 90MS0191-M01660EAN 4718017572293
100 specifications
- ProcessorIntel® Celeron®
- Memory4 GB
- Storage64 GB
- GraphicsNot available
- SpeedWi-Fi 5 (802.11ac)
- OSWindows 10 Pro
Overview
- Processor
- Intel® Celeron®
- Memory
- 4 GB
- Storage
- 64 GB
- Graphics
- Not available
- Speed
- Wi-Fi 5 (802.11ac)
- OS
- Windows 10 Pro
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- PB40-BC166ZV
- Part number
- 90MS0191-M01660
- EAN / UPC
- 4718017572293
- Also known as
- ASUS PB40-BC166ZV Intel® Celeron® N4000 4 GB DDR4-SDRAM 64 GB eMMC Windows 10 Pro Mini PC Black
Specifications
100 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N4000 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor boost frequency | 2.6 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 4 MB |
| Processor lithography | 14 nm |
| Processor operating modes | 64-bit |
| Processor codename | Gemini Lake |
| Thermal Design Power (TDP) | 6 W |
| Scenario Design Power (SDP) | 4.8 W |
| Tjunction | 105 °C |
| Maximum number of PCI Express lanes | 6 |
| PCI Express configurations | 1x2, 1x2+2x1, 1x4, 2x1, 4x1 |
| PCI Express slots version | 2.0 |
| Number of processors installed | 1 |
| Processor socket | BGA 1090 |
| Maximum internal memory supported by processor | 8 GB |
| Memory types supported by processor | DDR4-SDRAM, LPDDR4-SDRAM |
| Memory clock speeds supported by processor | 2400 MHz |
Memory
| Specification | Value |
|---|---|
| Internal memory | 4 GB |
| Maximum internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Optical drive type | No |
| Storage media | eMMC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 600 |
| Maximum on-board graphics card memory | 8 GB |
| Number of displays supported (on-board graphics) | 3 |
| On-board graphics card base frequency | 200 MHz |
| On-board graphics card burst frequency | 650 MHz |
| On-board graphics card dynamic frequency (max) | 650 MHz |
| On-board graphics card DirectX version | 12.0 |
| On-board graphics card ID | 0x3185 |
| Number of execution units | 12 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| DVI port | No |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Identity Protection Technology version | 1.00 |
| Intel Secure Key Technology version | 1.00 |
| Intel Smart Response Technology version | 0.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Processor ARK ID | 128988 |
| Processor package size | 25 x 24 mm |
| Thermal Monitoring Technologies | Yes |
| UART | Yes |
| Intel® Smart Response Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 175 mm |
| Height | 34.2 mm |
| Weight | 700 g |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
