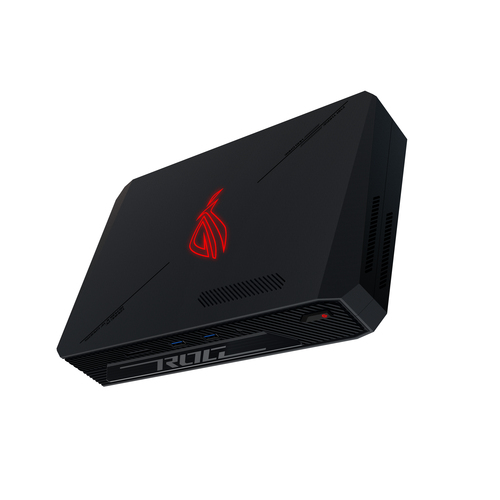

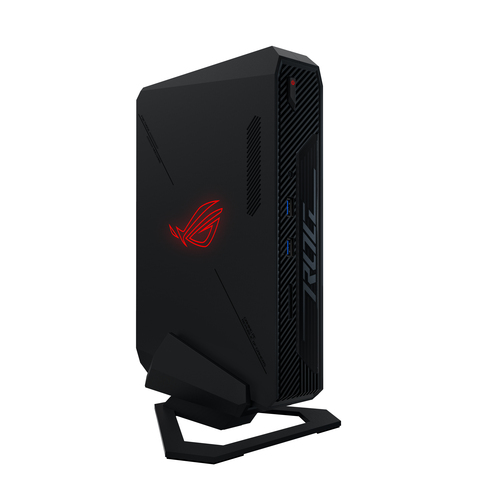

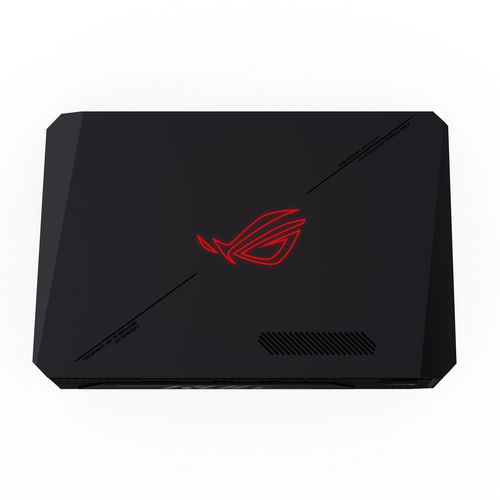

NUC 14 ROG RNUC14SRKU7168A2I
Model NUC 14 ROG RNUC14SRKU7168A2IPart no. 90AS0051-M00050EAN 4711387490310
85 specifications
- ProcessorIntel Core Ultra 7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 4060
- SpeedWi-Fi 6E (802.11ax)
- TypeMini PC
Overview
- Processor
- Intel Core Ultra 7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 4060
- Speed
- Wi-Fi 6E (802.11ax)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- NUC 14 ROG RNUC14SRKU7168A2I
- Part number
- 90AS0051-M00050
- EAN / UPC
- 4711387490310
- Also known as
- ASUS ROG NUC 14 RNUC14SRKU7168A2I Intel Core Ultra 7 155H 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Windows 11 Home Mini PC Black
Specifications
85 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel® Core™ Ultra (Series 1) |
| Processor model | 155H |
| Processor cores | 16 |
| Processor threads | 22 |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 4.8 GHz |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Low Power Efficient-core Max Turbo Frequency | 2.5 GHz |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Maximum turbo power | 115 W |
| Processor base power | 28 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 8 GB |
| Memory slots | 2x SO-DIMM |
| Memory channels | Dual-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 3 |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics memory type | GDDR6 |
| Number of discrete graphics cards | 1 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel Arc Graphics |
| On-board graphics card model | Intel Arc Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Killer |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 1 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4a |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| DC-in jack | Yes |
| Number of front USB ports | 2 |
| Number of rear USB ports | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 330 W |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
Display
| Specification | Value |
|---|---|
| Display included | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 270 mm |
| Depth | 180 mm |
| Height | 50 mm |
