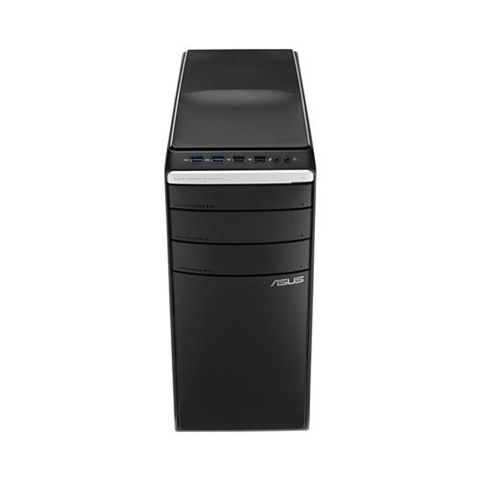

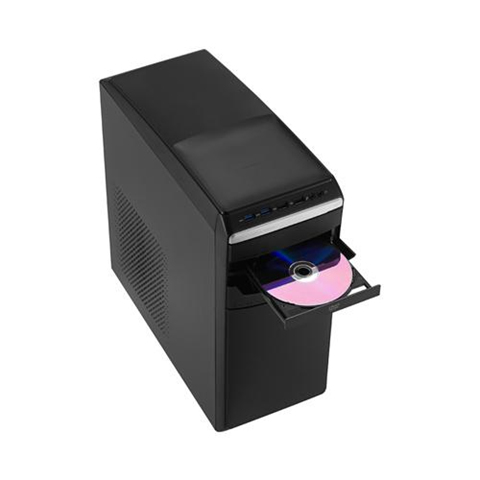

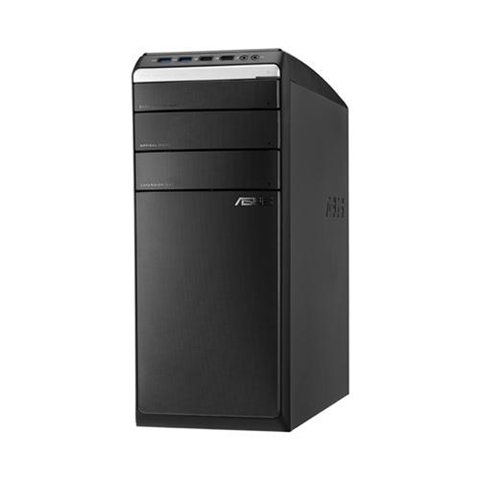

M M51BC-US003S PC AMD FX™ FX-8300
16 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 8570 Windows 8 Desktop Black
Model M51BC-US003SEAN 886227573233
75 specifications
- ProcessorAMD FX™
- Memory16 GB
- Storage1 TB
- GraphicsAMD Radeon HD 8570
- SpeedWi-Fi 5 (802.11ac)
- TypePC
Overview
- Processor
- AMD FX™
- Memory
- 16 GB
- Storage
- 1 TB
- Graphics
- AMD Radeon HD 8570
- Speed
- Wi-Fi 5 (802.11ac)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- M51BC-US003S
- Part number
- M51BC-US003S
- EAN / UPC
- 886227573233, 8862275732336
- Also known as
- ASUS M M51BC-US003S PC AMD FX™ FX-8300 16 GB DDR3-SDRAM 1 TB HDD AMD Radeon HD 8570 Windows 8 Desktop Black
Specifications
75 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD FX™ |
| Processor model | FX-8300 |
| Processor cores | 8 |
| Processor threads | 8 |
| Processor boost frequency | 4.2 GHz |
| Processor frequency | 3.3 GHz |
| L2 cache | 8 MB |
| Processor cache | 8 MB |
| L3 cache | 8 MB |
| Processor cache type | L3 |
| Number of processors installed | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 1600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 TB |
| Optical drive type | DVD Super Multi |
| Storage media | HDD |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | CF, Memory Stick (MS), MicroDrive, MicroSD (TransFlash), miniSD, MMC, MS Duo, MS Micro (M2), MS PRO, MS PRO Duo, RS-MMC, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | AMD Radeon HD 8570 |
| Discrete graphics card memory | 2 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | AMD 970 |
| Audio output channels | 7.1 channels |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 1 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x4 slots | 1 |
| PCI Express x16 slots | 1 |
Design
| Specification | Value |
|---|---|
| Chassis type | Desktop |
| Product colour | Black |
| Cooling type | Active |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Drivers included | Yes |
Processor special features
| Specification | Value |
|---|---|
| Intel® Small Business Advantage (Intel® SBA) | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Intel® Smart Response Technology | No |
| Intel® Rapid Start Technology | No |
| Intel® Turbo Boost Technology | No |
| Intel Smart Connect Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 175 mm |
| Depth | 400 mm |
| Height | 420 mm |
| Weight | 9.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 242 mm |
| Package depth | 550 mm |
| Package height | 510 mm |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
