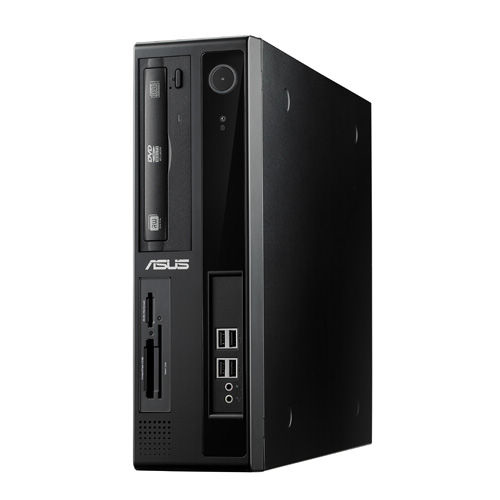

ASUS K K5130-EU005D Intel Pentium G G2030

4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 620 FreeDOS Desktop PC Black

Model K5130-EU005DPart no. 90PD0022-M00660EAN 4716659574484

123 specifications

ProcessorIntel Pentium G
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® GT 620
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel Pentium G
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® GT 620
Type: PC
OS: FreeDOS

Brand: ASUS
Category: PCs/Workstations
Model: K5130-EU005D
Part number: 90PD0022-M00660
EAN / UPC: 4716659574484
Also known as: ASUS K K5130-EU005D Intel Pentium G G2030 4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® GT 620 FreeDOS Desktop PC Black

Specifications

123 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G2030
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	3 MB
L3 cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G2000 Series for Desktop
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	55 W
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
Stepping	P0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 620
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	2
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	1
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS
Drivers included	Yes
Bundled software	Trend Micro Titanium Internet Security Trial, Office 2010 Professional(60-day trial), Nero 12, Microsoft Pack, Adobe Reader, SKYPE (WIN8), Freshpaint (WIN8), WIN8 UI Games

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	74749
Processor code	SR163
Processor package size	37.5 x 37.5 mm
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	350 mm
Height	389 mm
Weight	8.6 kg

Packaging data

Specification	Value
Package width	230 mm
Package depth	490 mm
Package height	508 mm
Package weight	10.1 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
