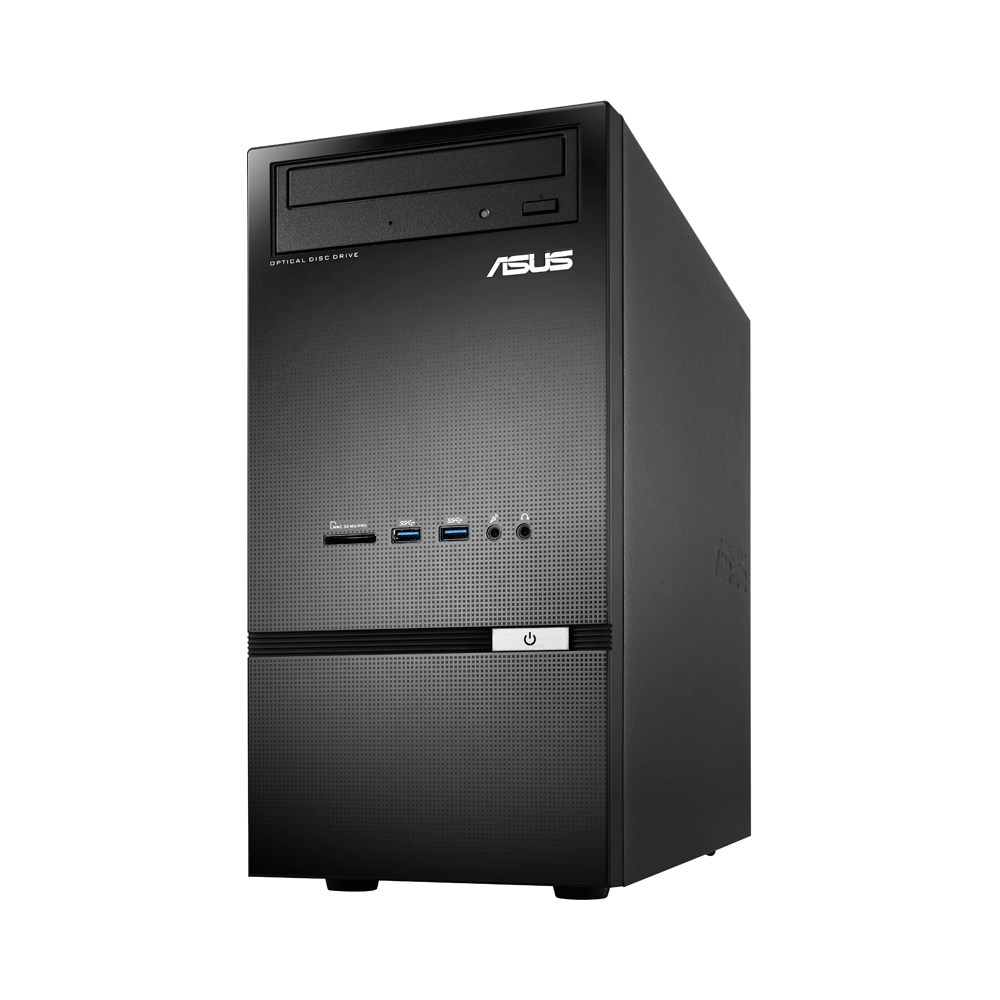

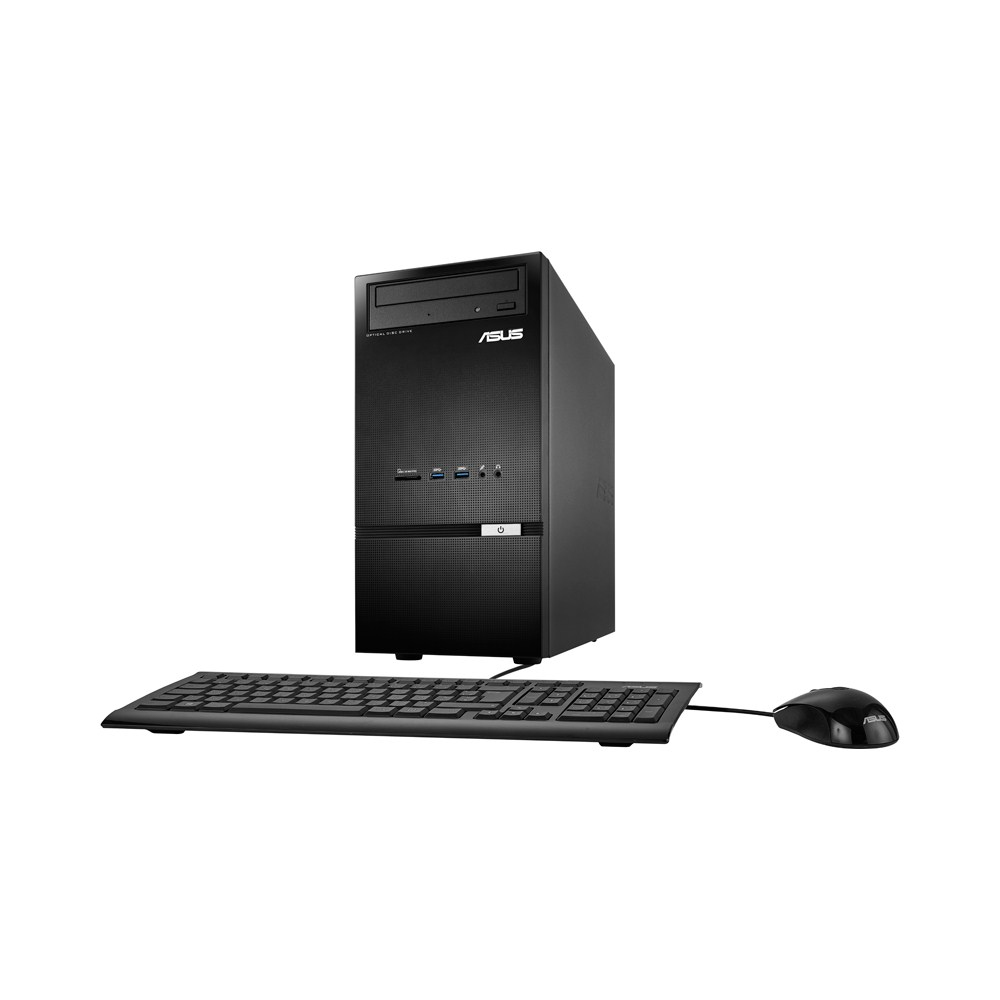

ASUS K K30AM-J-BING-IT002S Intel® Celeron® J1800

4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 PC Black

Model K30AM-J-BING-IT002SPart no. 90PD00Z1-M00400EAN 4716659877585

122 specifications

ProcessorIntel® Celeron®
Memory4 GB
Storage1 TB
GraphicsNot available
TypePC
OSWindows 8.1

See all specifications

Overview

Processor: Intel® Celeron®
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: Windows 8.1

Brand: ASUS
Category: PCs/Workstations
Model: K30AM-J-BING-IT002S
Part number: 90PD00Z1-M00400
EAN / UPC: 4716659877585
Also known as: ASUS K K30AM-J-BING-IT002S Intel® Celeron® J1800 4 GB DDR3-SDRAM 1 TB HDD Windows 8.1 PC Black

Specifications

122 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron®
Processor model	J1800
Processor cores	2
Processor threads	2
Processor boost frequency	2.58 GHz
Processor frequency	2.41 GHz
Processor cache	1 MB
Processor cache type	L2
FSB Parity	No
Processor lithography	22 nm
Processor operating modes	32-bit, 64-bit
Processor series	Intel Celeron Processor J1000 series for Desktop
Processor codename	Bay Trail
Thermal Design Power (TDP)	10 W
Tjunction	105 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	B3
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1333 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x SO-DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA
HDD size	3.5"
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	688 MHz
On-board graphics card dynamic frequency (max)	792 MHz

Performance

Specification	Value
Product type	PC

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes

Expansion slots

Specification	Value
PCI Express x1 slots	1

Design

Specification	Value
Placement supported	Horizontal
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8.1
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	0.00
Intel Rapid Storage Technology	No
Intel Small Business Advantage (SBA) version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	36 bit
Processor ARK ID	78866
Processor code	SR1SD
Processor package size	25 X 27 mm
Thermal Monitoring Technologies	No
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C

Weight & dimensions

Specification	Value
Width	180 mm
Depth	390 mm
Height	350 mm
Weight	8.7 kg

Packaging data

Specification	Value
Package width	230 mm
Package depth	509 mm
Package height	490 mm
Package weight	8.7 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes
