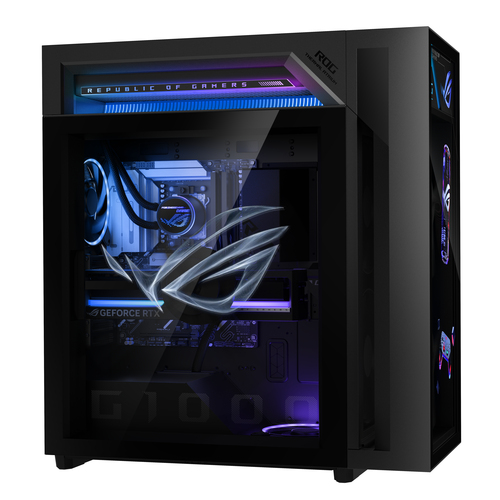

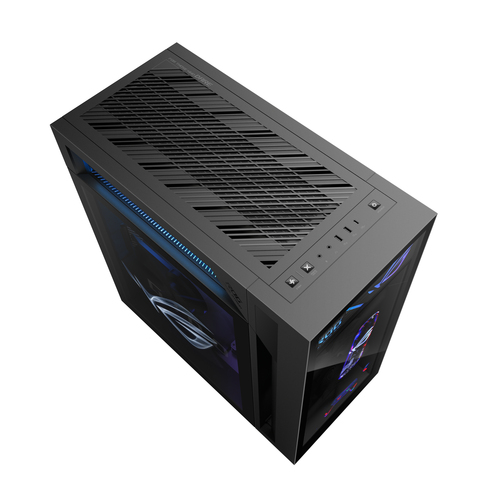

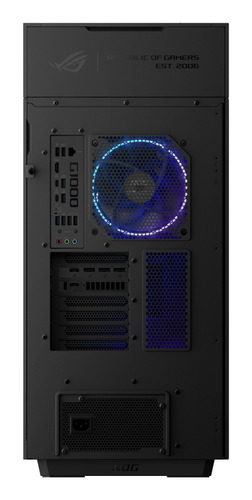

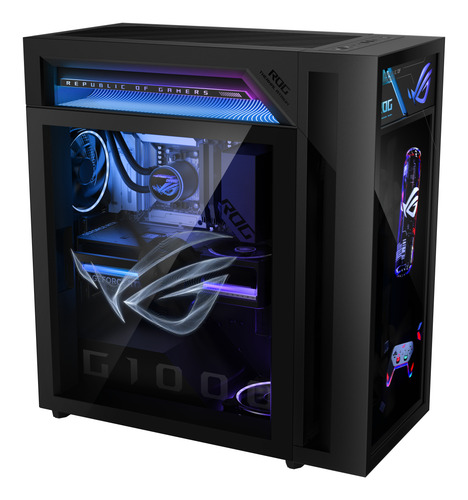

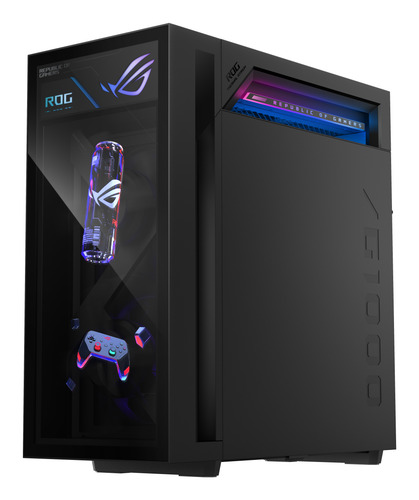

ROG GM1000TY-R9950X086W AMD Ryzen™ 9
9950X3D 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5090 Windows 11 Home Tower PC Liquid cooling system Black
Model GM1000TY-R9950X086WPart no. 90PF0651-M006Z0
96 specifications
- ProcessorAMD Ryzen™ 9
- Memory64 GB
- Storage2 TB
- GraphicsNVIDIA GeForce RTX 5090
- SpeedWi-Fi 7 (802.11be)
- TypePC
Overview
- Processor
- AMD Ryzen™ 9
- Memory
- 64 GB
- Storage
- 2 TB
- Graphics
- NVIDIA GeForce RTX 5090
- Speed
- Wi-Fi 7 (802.11be)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- GM1000TY-R9950X086W
- Part number
- 90PF0651-M006Z0
- Also known as
- ASUS ROG GM1000TY-R9950X086W AMD Ryzen™ 9 9950X3D 64 GB DDR5-SDRAM 2 TB SSD NVIDIA GeForce RTX 5090 Windows 11 Home Tower PC Liquid cooling system Black
Specifications
96 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 9 |
| Processor generation | AMD Ryzen 9000 Series |
| Processor model | 9950X3D |
| Processor cores | 16 |
| Processor threads | 32 |
| Processor boost frequency | 5.7 GHz |
| Processor frequency | 4.3 GHz |
| L2 cache | 16 MB |
| L3 cache | 128 MB |
| Processor cache type | L2 & L3 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 64 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 4x DIMM |
| Memory clock speed | 4800 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2 TB |
| Optical drive type | No |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 10 |
| Total SSDs capacity | 2 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 2 TB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5090 |
| Discrete graphics card memory | 32 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | AMD |
| On-board graphics card family | AMD Radeon Graphics |
| On-board graphics card model | AMD Radeon Graphics |
| CUDA | Yes |
| NVIDIA G-SYNC | Yes |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 2 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Gaming |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| Microphone in | Yes |
| Number of front USB ports | 3 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 10 |
| Number of rear audio ports | 3 |
| Number of SATA III connectors | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 3 |
| PCI Express x16 (Gen 5.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 1000 W |
| 80 PLUS certification | 80 PLUS Gold |
Design
| Specification | Value |
|---|---|
| Chassis type | Tower |
| Colour name | Black |
| Volume | 104 L |
| Placement supported | Vertical |
| Liquid cooling system | Yes |
| Product colour | Black |
| Introduction year | 2026 |
| Viewing window | Yes |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Home |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers; McAfee 30 days free trial |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 582.7 mm |
| Height | 614.8 mm |
| Weight | 40 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | No |
| Keyboard included | No |
