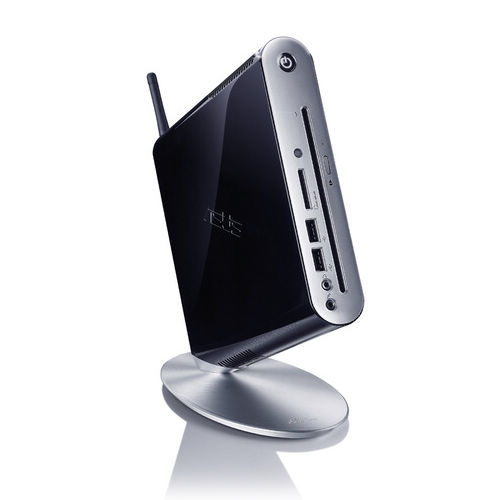

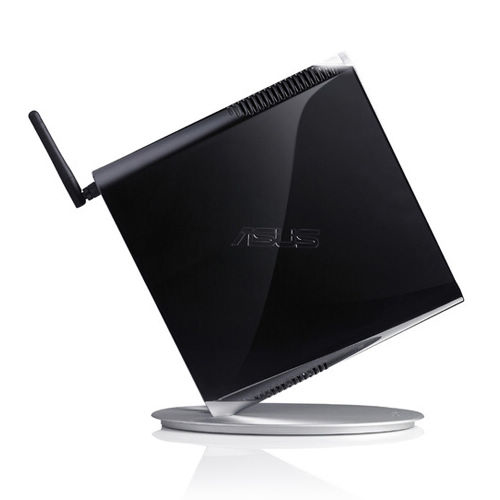

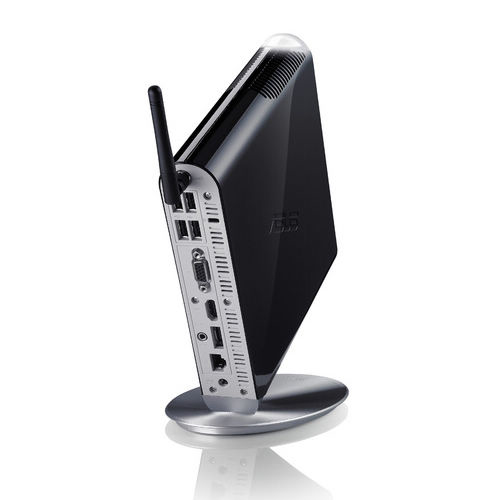

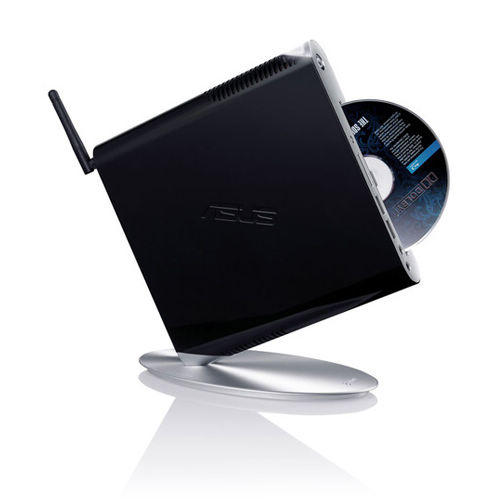

ASUS EeeBox PC EB1503-B0240 Intel Atom® D2550

4 GB DDR3-SDRAM 500 GB HDD NVIDIA® GeForce® 610M Windows 7 Home Premium Small Desktop Mini PC Black

Model EB1503-B0240Part no. 90PE2IA2233100296C0QEAN 4716659836759

95 specifications

ProcessorIntel Atom®
Memory4 GB
Storage500 GB
GraphicsNVIDIA® GeForce® 610M
SpeedWi-Fi 4 (802.11n)
TypeMini PC

See all specifications

Overview

Processor: Intel Atom®
Memory: 4 GB
Storage: 500 GB
Graphics: NVIDIA® GeForce® 610M
Speed: Wi-Fi 4 (802.11n)
Type: Mini PC

Brand: ASUS
Category: PCs/Workstations
Model: EB1503-B0240
Part number: 90PE2IA2233100296C0Q
EAN / UPC: 4716659836759
Also known as: ASUS EeeBox PC EB1503-B0240 Intel Atom® D2550 4 GB DDR3-SDRAM 500 GB HDD NVIDIA® GeForce® 610M Windows 7 Home Premium Small Desktop Mini PC Black

Specifications

95 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D2550
Processor cores	2
Processor threads	4
Processor frequency	1.86 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Atom D2500 Series
Processor codename	Cedarview
Thermal Design Power (TDP)	10 W
Tjunction	100 C
Maximum number of PCI Express lanes	4
Number of processors installed	1
Processor socket	BGA 559
Stepping	B3
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	800,1066 MHz
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	4 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	1066 MHz
Memory channels	Single-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Storage media	HDD
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	5400 RPM
Card reader integrated	Yes
Compatible memory cards	MMC, SD, SDHC, SDXC

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® 610M
Discrete graphics card memory	0.5 GB
On-board graphics card model	Integrated
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	640 MHz

Performance

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel NM10

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
S/PDIF out port	Yes

Power

Specification	Value
Power supply	65 W

Design

Specification	Value
Chassis type	Small Desktop
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Physical Address Extension (PAE)	36 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	65470
Processor code	SR0VY
Processor package size	22 X 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	39 mm
Depth	193 mm
Height	193 mm
Weight	1.2 kg

Packaging content

Specification	Value
Cables included	AC
Stand included	Yes
VESA mount included	Yes
AC adapter included	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	BSMI/CB/CE/FCC/UL/C-Tick

Sustainability

Specification	Value
Sustainability certificates	EPEAT Gold, ENERGY STAR
