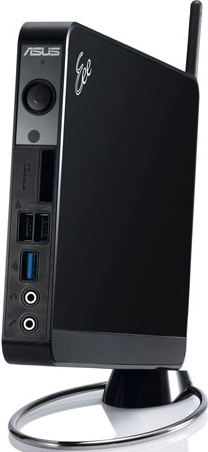

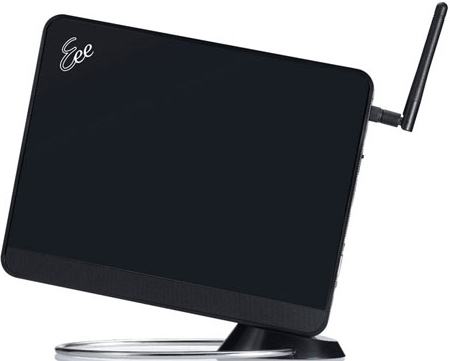

ASUS EeeBox PC EB1012P Intel Atom® D510

2 GB DDR2-SDRAM NVIDIA® ION™ Windows 7 Home Premium Small Desktop Mini PC Black

Model EB1012PPart no. EB1012P-W034EEAN 4716659043447

113 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: EB1012P
Part numbers: EB1012P-W034E, EB1012P-B007G, EB1012P-B022E, EB1012P-B0090, EB1012P-B058E, 90PE2AA21111E113MC0Q +3 more
EAN / UPC: 4716659043447, 610839358274, 610839323838, 610839333196 +6 more
Also known as: ASUS EeeBox PC EB1012P Intel Atom® D510 2 GB DDR2-SDRAM NVIDIA® ION™ Windows 7 Home Premium Small Desktop Mini PC Black

113 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Processor codename	Pineview
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Number of processors installed	1
Processor socket	BGA 559
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Platform	PC
Stepping	B0
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® ION™
Discrete graphics card memory	0.512 GB
On-board graphics card model	Integrated
Graphics card family	NVIDIA

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel NM10

Specification	Value
USB 2.0 ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
S/PDIF out port	Yes
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
Chassis type	Small Desktop
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Specification	Value
Display included	No

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor code	SLBLA
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Specification	Value
Compliance industry standards	IEEE 802.3/802.3u/802.3ab
Certification	Energy Star 5.0, EPEAT GOLD
