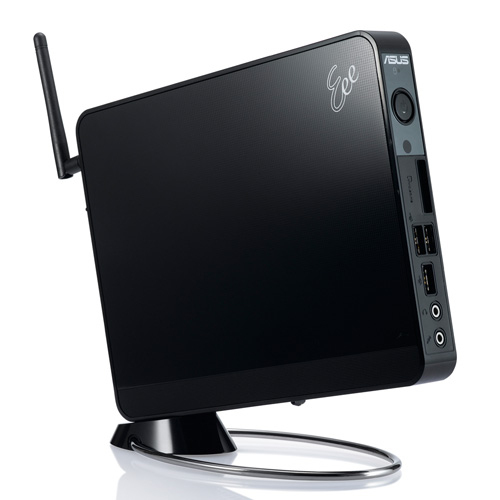

ASUS EeeBox PC EB1012-B0016 PC Intel Atom® 330

2 GB DDR2-SDRAM 160 GB NVIDIA® ION™ Black

Model EB1012-B0016

105 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: EB1012-B0016
Part number: EB1012-B0016
Also known as: ASUS EeeBox PC EB1012-B0016 PC Intel Atom® 330 2 GB DDR2-SDRAM 160 GB NVIDIA® ION™ Black

105 specifications in 12 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	330
Processor cores	2
Processor threads	4
Processor frequency	1.6 GHz
Processor cache	1 MB
Processor cache type	L2
Processor front side bus	533 MHz
Bus type	FSB
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Thermal Design Power (TDP)	8 W
Tcase	85.2 °C
Tjunction	100 °C
Processor socket	BGA 437
Number of Processing Die Transistors	94 M
Processing Die size	52 mm²
CPU multiplier (bus/core ratio)	12
Processor core voltage (AC)	1.25 - 1.40 V
Stepping	C0
ECC supported by processor	No

Specification	Value
Total storage capacity	160 GB
Optical drive type	No
HDD interface	SATA
HDD speed	5400 RPM
HDD size	2.5"
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC

Specification	Value
Discrete graphics card model	NVIDIA® ION™
Graphics card family	NVIDIA

Specification	Value
Product type	PC

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
eSATA ports quantity	1
DC-in jack	Yes
Serial ports quantity	0
Parallel ports quantity	0

Specification	Value
Power supply type	DC
Power supply	40 W
Desktop power supply with standby +5V	2.1 A

Specification	Value
Product colour	Black

Specification	Value
Display included	No

Specification	Value
Embedded options available	No
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Physical Address Extension (PAE)	Yes
Processor ARK ID	35641
Processor code	SLG9Y
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
