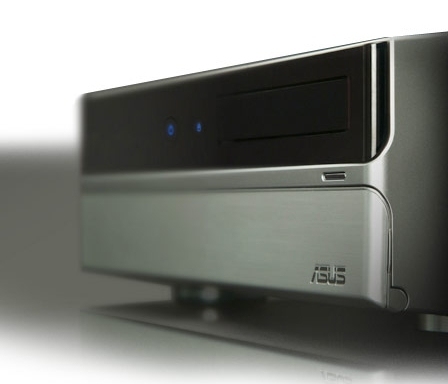

ASUS DAV Center D22
Model DAV Center D22Part no. 90PE01C1142520C9UCONEAN 4719543936986
91 specifications
- ProcessorIntel® Core™2 Duo
- Memory1 GB
- Storage250 GB
- GraphicsNVIDIA® GeForce® 7600 GS
- TypePC
- OSWindows Vista Home Premium
Overview
- Processor
- Intel® Core™2 Duo
- Memory
- 1 GB
- Storage
- 250 GB
- Graphics
- NVIDIA® GeForce® 7600 GS
- Type
- PC
- OS
- Windows Vista Home Premium
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- DAV Center D22
- Part numbers
- 90PE01C1142520C9UCON, 90PE01C1142520C9UC0N
- EAN / UPC
- 4719543936986
- Also known as
- ASUS DAV Center D22 Intel® Core™2 Duo E6300 1 GB DDR2-SDRAM 250 GB NVIDIA® GeForce® 7600 GS Windows Vista Home Premium Small Desktop PC
Specifications
91 specifications in 14 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™2 Duo |
| Processor model | E6300 |
| Processor cores | 2 |
| Processor threads | 2 |
| Processor frequency | 1.86 GHz |
| Processor cache | 2 MB |
| Processor cache type | L2 |
| Processor front side bus | 1066 MHz |
| Bus type | FSB |
| FSB Parity | No |
| Processor lithography | 65 nm |
| Processor operating modes | 64-bit |
| Processor codename | Conroe |
| Thermal Design Power (TDP) | 65 W |
| Tcase | 61.4 °C |
| Processor socket | LGA 775 (Socket T) |
| Number of Processing Die Transistors | 167 M |
| Processing Die size | 111 mm² |
| CPU multiplier (bus/core ratio) | 7 |
| Stepping | R0 |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR2-SDRAM |
| Memory clock speed | 533 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 250 GB |
| Optical drive type | DVD Super Multi DL |
| HDD interface | SATA II |
| HDD speed | 7200 RPM |
| Card reader integrated | Yes |
| Compatible memory cards | MS duo, MS pro, MS pro duo, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® 7600 GS |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Mbps |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | Yes |
| PS/2 ports quantity | 0 |
| Firewire (IEEE 1394) ports | 2 |
| eSATA ports quantity | 2 |
| TV-out | Yes |
| TV-out type | S-Video |
| Serial ports quantity | 0 |
| Parallel ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Chassis type | Small Desktop |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Vista Home Premium |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Rapid Storage Technology | No |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | No |
| Intel® AES New Instructions (Intel® AES-NI) | No |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 27248 |
| Processor code | SLGW2 |
| Processor package size | 37.5 x 37.5 mm |
| Thermal Monitoring Technologies | Yes |
| Intel® Turbo Boost Technology | No |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 357 mm |
| Depth | 398 mm |
| Height | 95 mm |
Features
| Specification | Value |
|---|---|
| TV tuner type | Analogue & DVB-T |
Other features
| Specification | Value |
|---|---|
| TV tuner integrated | Yes |
What people say
Reviews & ratings
ASUS DAV Center D22
No reviews yet
Be the first to tell others how ASUS DAV Center D22 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare ASUS DAV Center D22

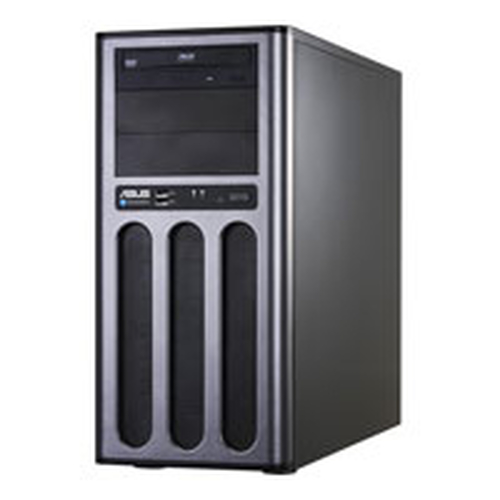

All pcs/workstations comparisons- ASUS DAV Center D22 vsASUS Tower Barebone Server SystemCompare specs

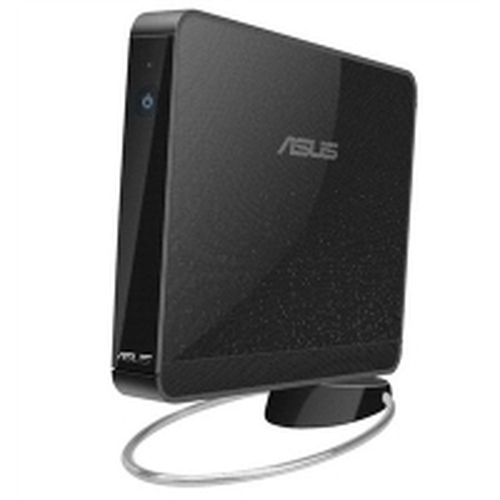

- ASUS DAV Center D22 vsASUS EeeBox PC B202Compare specs
