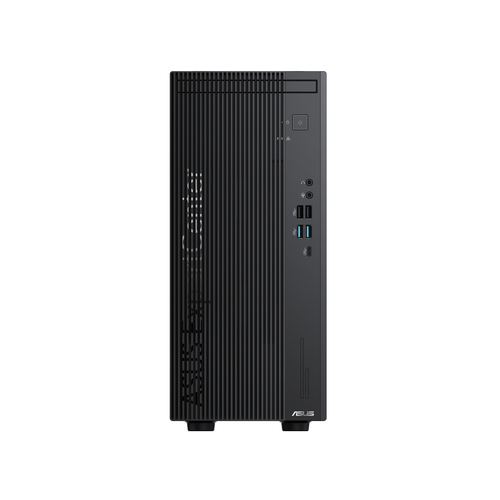

ExpertCenter D7 Mini Tower D700MER-713700014X Intel® Core™ i7 i7-13700
16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Windows 11 Pro PC Black
Model D700MER-713700014XPart no. 90PF04M1-M00E70EAN 4711387750315
99 specifications
- ProcessorIntel® Core™ i7
- Memory16 GB
- Storage512 GB
- GraphicsNVIDIA GeForce RTX 4060
- SpeedWi-Fi 6 (802.11ax)
- TypePC
Overview
- Processor
- Intel® Core™ i7
- Memory
- 16 GB
- Storage
- 512 GB
- Graphics
- NVIDIA GeForce RTX 4060
- Speed
- Wi-Fi 6 (802.11ax)
- Type
- PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- D700MER-713700014X
- Part number
- 90PF04M1-M00E70
- EAN / UPC
- 4711387750315
- Also known as
- ASUS ExpertCenter D7 Mini Tower D700MER-713700014X Intel® Core™ i7 i7-13700 16 GB DDR5-SDRAM 512 GB SSD NVIDIA GeForce RTX 4060 Windows 11 Pro PC Black
Specifications
99 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700 |
| Processor cores | 16 |
| Processor threads | 24 |
| Processor boost frequency | 5.2 GHz |
| Performance cores | 8 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 4.1 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 30 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 219 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 128 GB |
| Internal memory type | DDR5-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 4x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | No |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | Yes |
| On-board graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 4060 |
| Discrete graphics card memory | 8 GB |
| Discrete graphics memory type | GDDR6 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
| Graphics card DisplayPorts quantity | 3 |
| Graphics card HDMI ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel B760 |
| Trusted Platform Module (TPM) | Yes |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Antenna type | 1x1 |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |

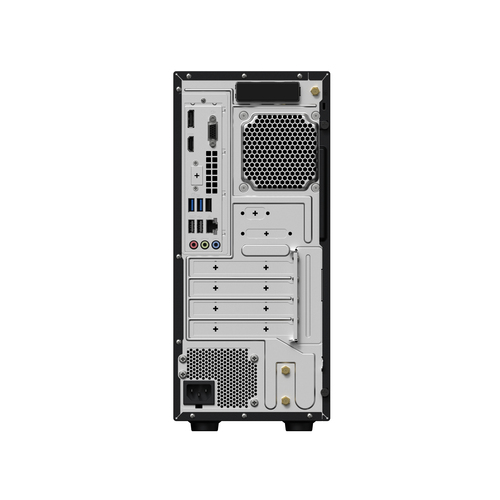

Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Line-out | Yes |
| Line-in | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of front USB ports | 5 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 5 |
| Number of rear audio ports | 6 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 500 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini Tower |
| Volume | 15 L |
| Placement supported | Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2024 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 155 mm |
| Depth | 296 mm |
| Height | 347 mm |
| Weight | 6 kg |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | REACH |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Gold |
