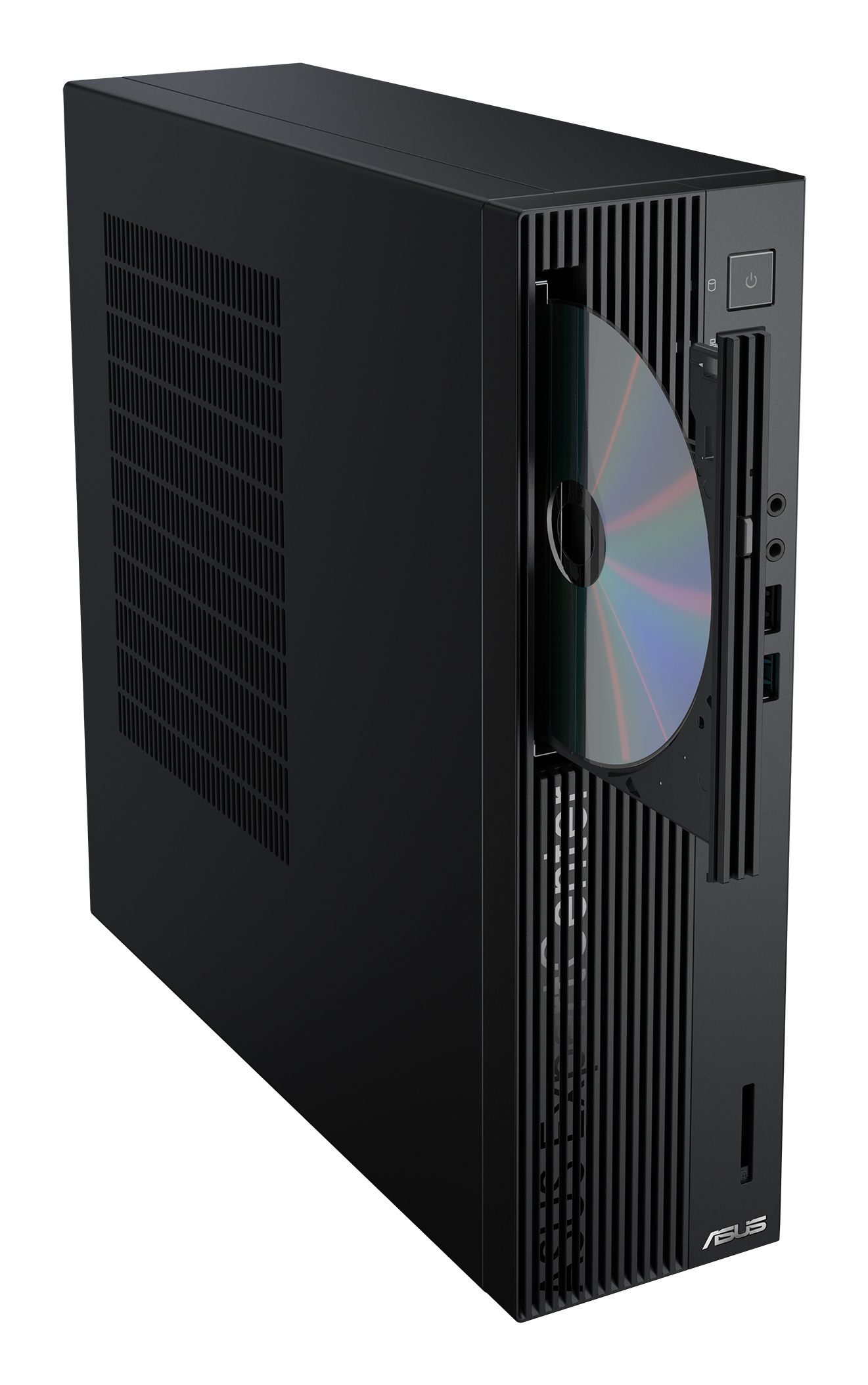

ExpertCenter D5 SFF D501SERES-514500001X Intel® Core™ i5 i5-14500
8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro PC Black
Model D501SERES-514500001XPart no. 90PF05M1-M003H0EAN 197105815872
99 specifications
- ProcessorIntel® Core™ i5
- Memory8 GB
- Storage512 GB
- GraphicsNot available
- TypePC
- OSWindows 11 Pro
Overview
- Processor
- Intel® Core™ i5
- Memory
- 8 GB
- Storage
- 512 GB
- Graphics
- Not available
- Type
- PC
- OS
- Windows 11 Pro
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- D501SERES-514500001X
- Part number
- 90PF05M1-M003H0
- EAN / UPC
- 197105815872, 4711387815878
- Also known as
- ASUS ExpertCenter D5 SFF D501SERES-514500001X Intel® Core™ i5 i5-14500 8 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro PC Black
Specifications
99 specifications in 19 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | Intel® Core™ i5 (14th gen) |
| Processor model | i5-14500 |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Performance-core base frequency | 2.6 GHz |
| Efficient-core base frequency | 1.9 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Maximum turbo power | 154 W |
| Processor base power | 65 W |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x DIMM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 512 GB |
| Optical drive type | DVD Super Multi |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, SD |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel UHD Graphics 770 |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Market positioning | Business |
| Motherboard chipset | Intel B760 |
| Password protection | Yes |
| Password protection type | HDD, User |
| Trusted Platform Module (TPM) | Yes |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 7.1 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 0 |
| Thunderbolt 3 ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Number of front USB ports | 4 |
| Number of front audio ports | 2 |
| Number of rear USB ports | 4 |
| Number of rear audio ports | 3 |
| Number of SATA III connectors | 4 |
Expansion slots
| Specification | Value |
|---|---|
| Number of 3.5" bays | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
Power
| Specification | Value |
|---|---|
| Power supply | 330 W |
| 80 PLUS certification | 80 PLUS Platinum |
Design
| Specification | Value |
|---|---|
| Chassis type | SFF |
| Colour name | Black |
| Number of 2.5" bays | 1 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Introduction year | 2025 |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 11 Pro |
| Operating system architecture | 64-bit |
| Trial software | 1-month trial for new Microsoft 365 customers. Credit card required, McAfee 30 days |
Display
| Specification | Value |
|---|---|
| Display included | No |
Audio
| Specification | Value |
|---|---|
| Audio system | High Definition Audio |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 93 mm |
| Depth | 296 mm |
| Height | 309 mm |
| Weight | 6 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 490 mm |
| Package depth | 168 mm |
| Package height | 510 mm |
| Package weight | 7.05 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse connectivity | Wired |
| Mouse included | Yes |
| Mouse included on selected markets | Yes |
| Keyboard included | Yes |
| Keyboard included on selected markets | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | REACH |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT Silver |
Keyboard
| Specification | Value |
|---|---|
| Keyboard connectivity | Wired |
