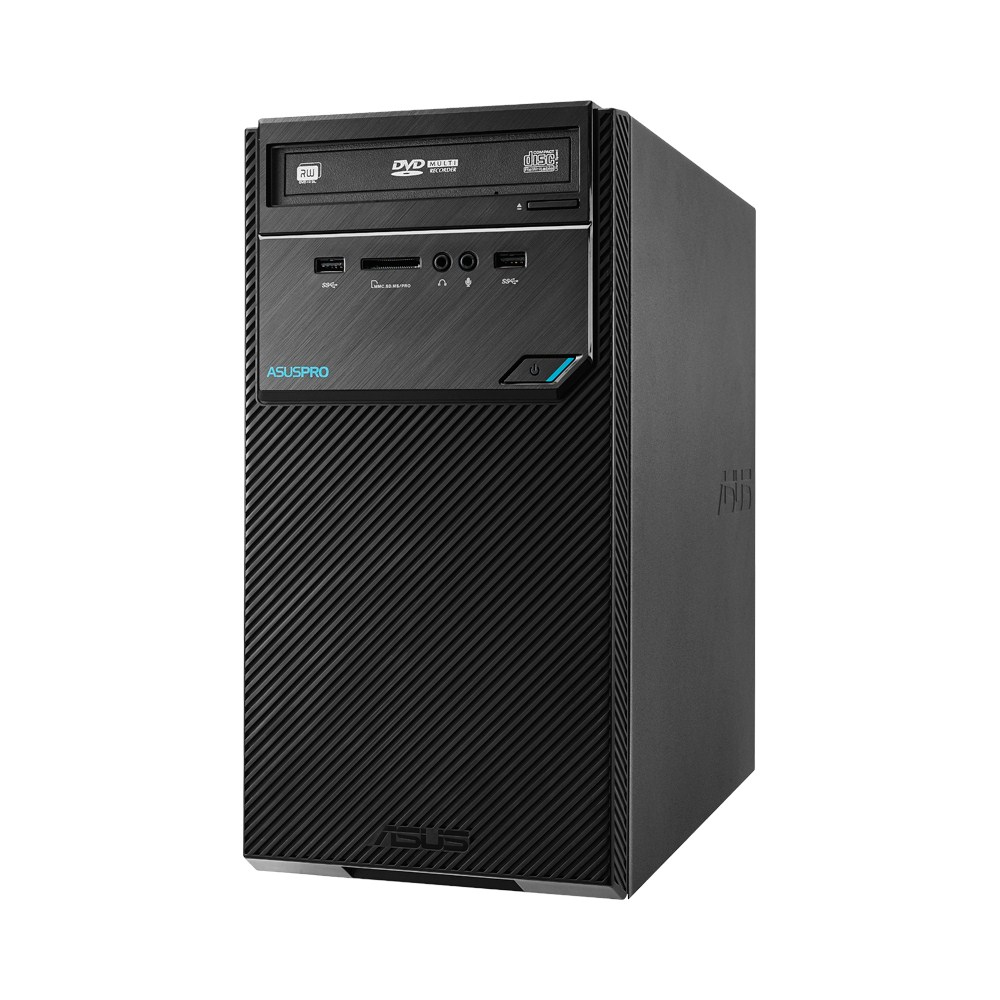

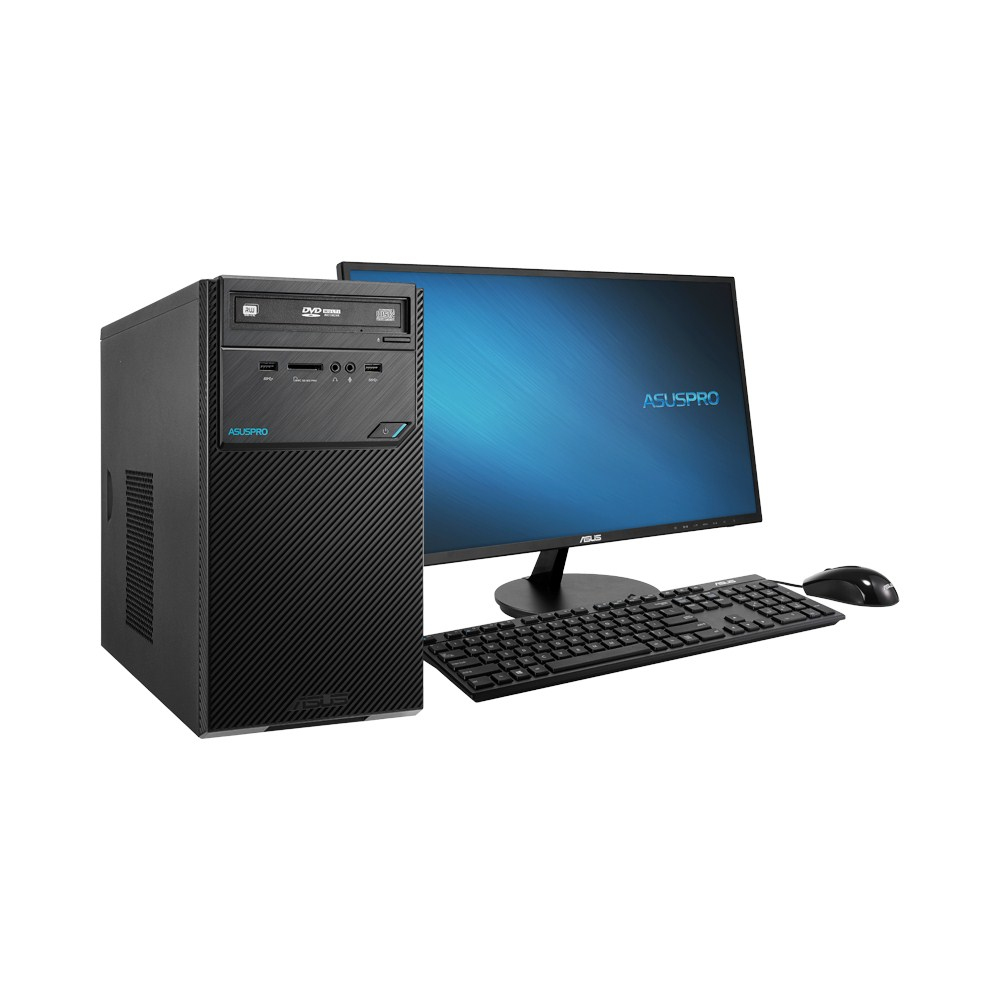

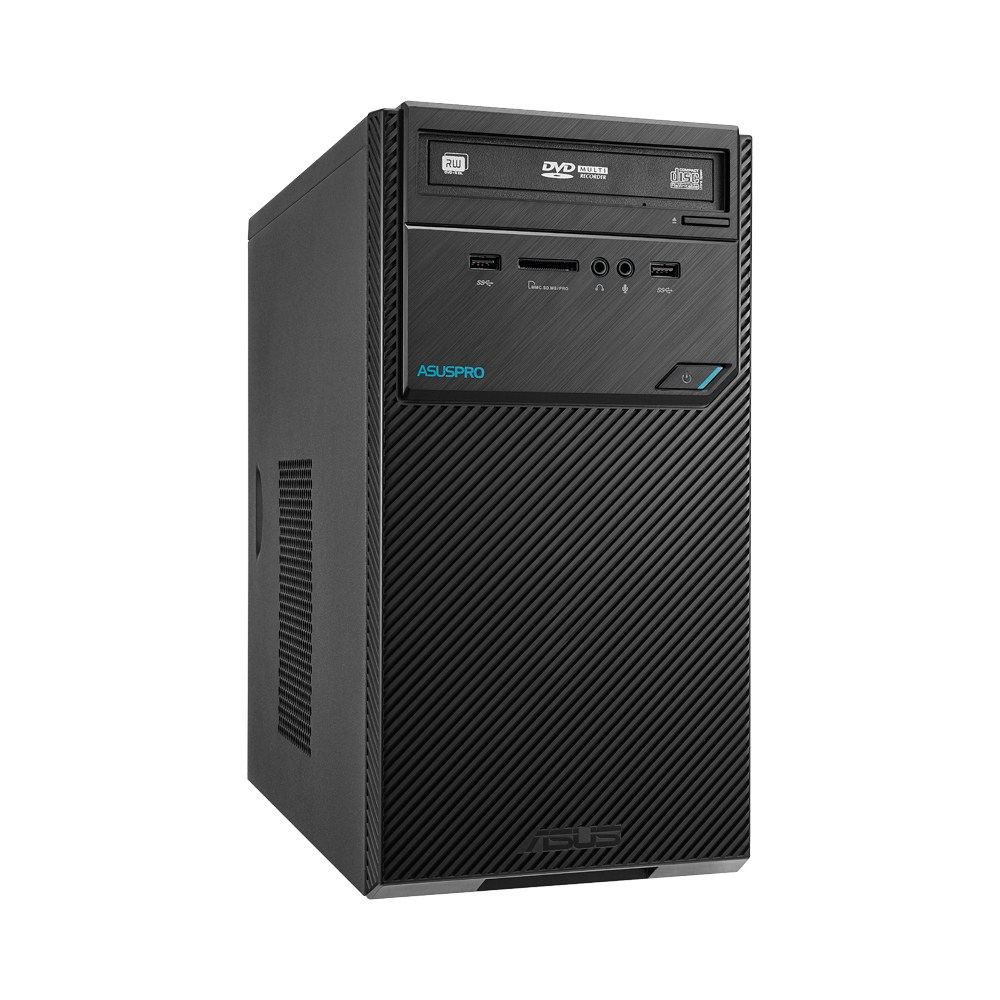

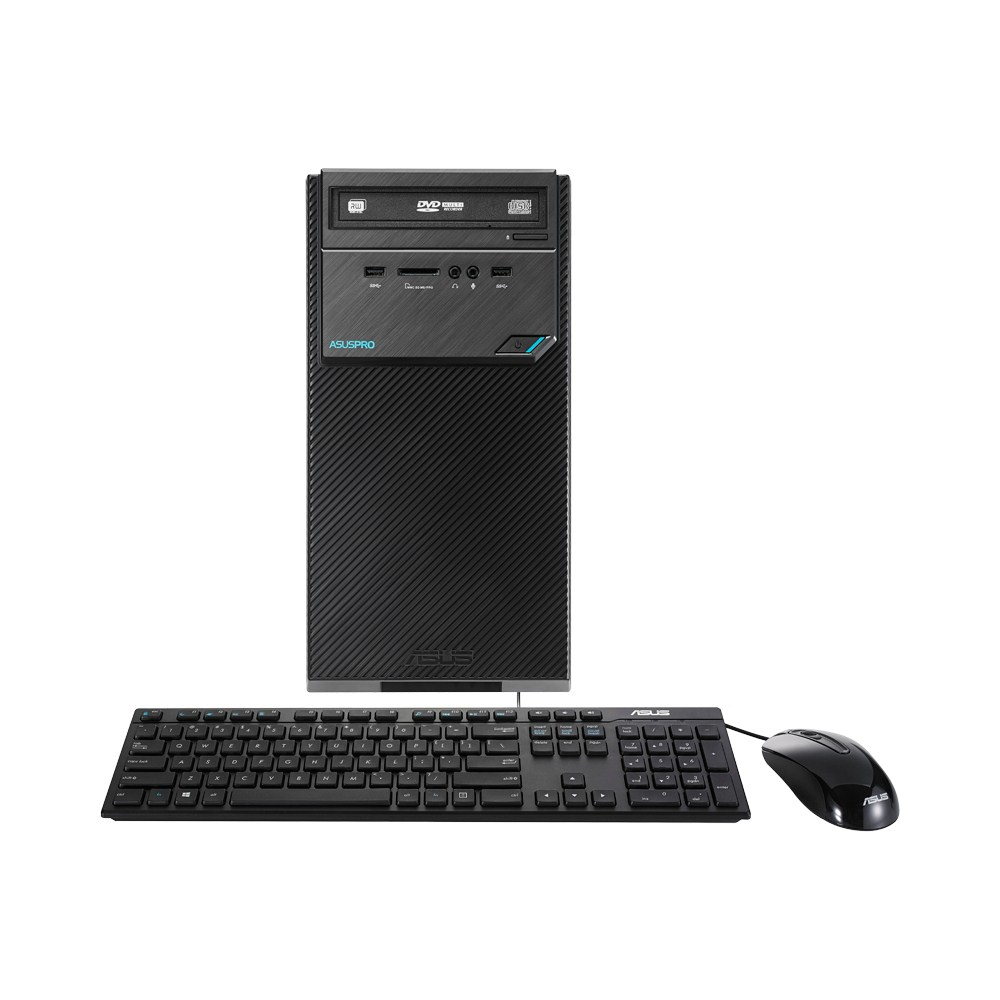

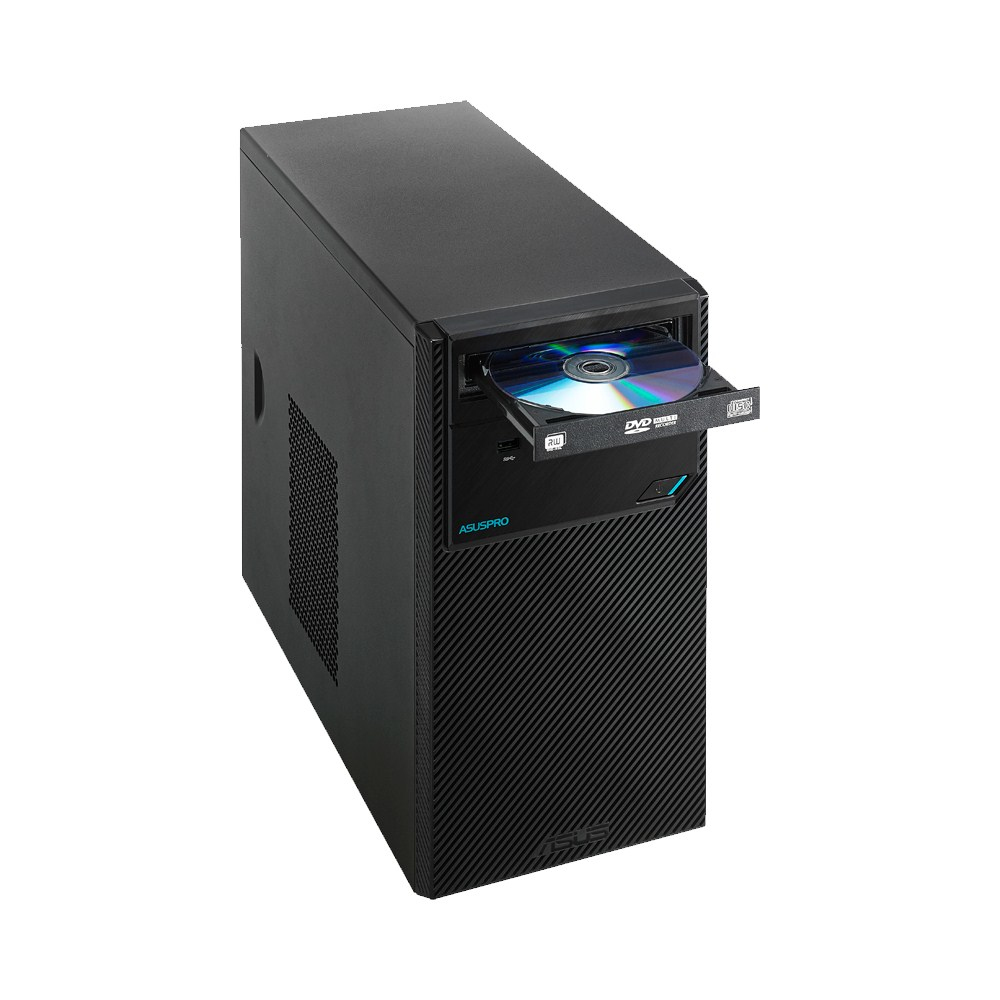

ASUS Pro Series D320MT-0G45000030 PC Intel® Pentium® N3700

4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Desktop Black

Model D320MT-0G45000030

144 specifications

ProcessorIntel® Pentium®
Memory4 GB
Storage500 GB
TypePC
OSFreeDOS
Weight11 kg

See all specifications

Overview

Processor: Intel® Pentium®
Memory: 4 GB
Storage: 500 GB
Type: PC
OS: FreeDOS
Weight: 11 kg

Brand: ASUS
Category: PCs/Workstations
Model: D320MT-0G45000030
Part numbers: D320MT-0G45000030, D320MT-I361000070, D320MT-I565000044
Also known as: ASUS Pro Series D320MT-0G45000030 PC Intel® Pentium® N3700 4 GB DDR3L-SDRAM 500 GB HDD FreeDOS Desktop Black

Specifications

144 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Pentium®
Processor model	N3700
Processor cores	4
Processor threads	4
Processor boost frequency	2.4 GHz
Processor frequency	1.6 GHz
Processor cache	2 MB
Processor cache type	L2
System bus rate	2.5 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor series	Intel® Pentium N3000 Series for Mobile
Processor codename	Braswell
Thermal Design Power (TDP)	6 W
Scenario Design Power (SDP)	4 W
Tjunction	90 °C
Maximum number of PCI Express lanes	4
PCI Express configurations	1x2, 1x4, 2x2, 2x1, 4x1
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	BGA 1170
Stepping	C0
Maximum internal memory supported by processor	8 GB
Memory types supported by processor	DDR3L-SDRAM
Memory clock speeds supported by processor	1600 MHz
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR3L-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	8 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	400 MHz
On-board graphics card burst frequency	700 MHz
On-board graphics card DirectX version	Yes
Graphics card Open GL support	Yes
Number of execution units	16

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H110
Password protection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	No

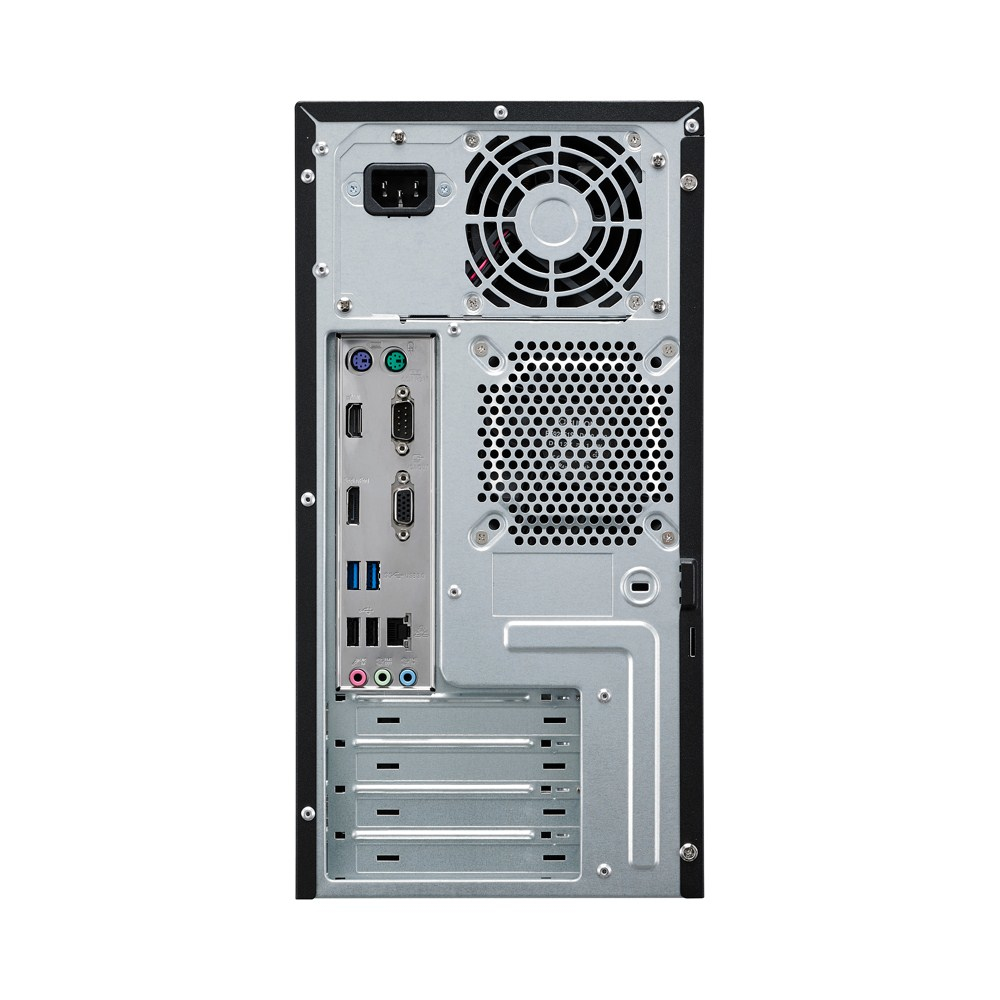

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
DisplayPorts quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Serial ports quantity	1
Total number of SATA connectors	2
Number of SATA III connectors	2

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	1
PCI Express x16 slots	1

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	1
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Boot	Yes
Intel Secure Boot Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	0.00
Intel Smart Connect Technology version	0.00
Intel Smart Response Technology version	0.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® High Definition Audio (Intel® HD Audio)	Yes
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® OS Guard	No
Intel® Pro Wireless Display (Intel® Pro WiDi)	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	87261
Processor code	SR29E
Processor package size	25 x 27 mm
Thermal Monitoring Technologies	Yes
UART	Yes
Intel® Smart Response Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes
Integrated 4G WiMAX	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	180 mm
Depth	364 mm
Height	393.5 mm
Weight	11 kg

Packaging data

Specification	Value
Package width	295 mm
Package depth	490 mm
Package height	520 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	BSMI, CB, CE, FCC, UL, CCC, CECP, RCM
