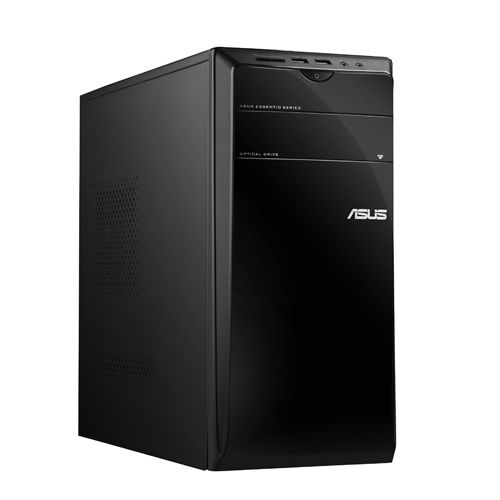

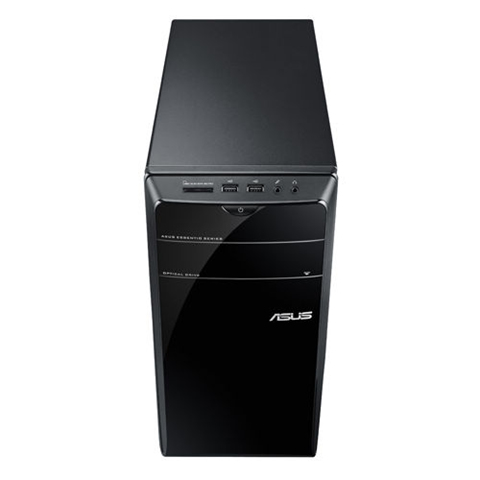

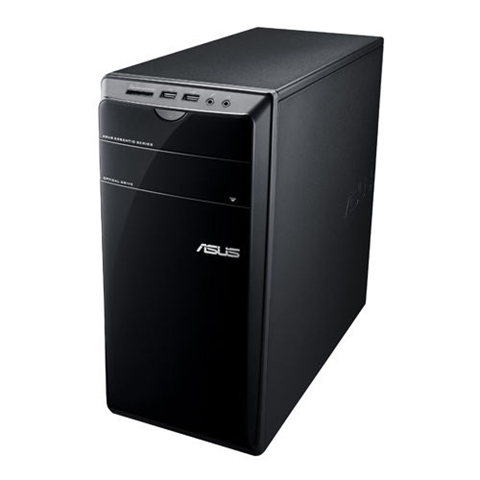

CM CM6731-PDC PC Intel Pentium G G630

2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

Model CM6731-PDC

103 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: CM6731-PDC
Part number: CM6731-PDC
Also known as: ASUS CM CM6731-PDC PC Intel Pentium G G630 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Black

103 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	27
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
HDD capacity	500 GB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	1

Specification	Value
Power supply	350 W

Specification	Value
Product colour	Black
Cooling type	Active

Specification	Value
Operating system installed	FreeDOS

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53483
Processor code	SR05S
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
