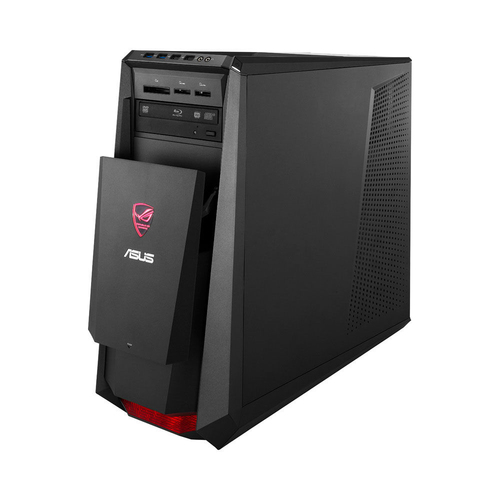

ASUS Essentio CM6330-DE007S Intel® Core™ i5 i5-3350P

8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 640 Windows 8 PC Black

Model CM6330-DE007SPart no. 90PD9CDBO591T8D04CKZEAN 4716659412694

104 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: CM6330-DE007S
Part numbers: 90PD9CDBO591T8D04CKZ, 90PD9CDB0591T8D04CKZ
EAN / UPC: 4716659412694
Also known as: ASUS Essentio CM6330-DE007S Intel® Core™ i5 i5-3350P 8 GB DDR3-SDRAM 2 TB HDD NVIDIA® GeForce® GT 640 Windows 8 PC Black

104 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3350P
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	69 W
Tcase	67.4 °C
PCI Express configurations	1x16, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD-RW
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	2 TB
Card reader integrated	Yes
Compatible memory cards	MMC, MS PRO, Memory Stick (MS), SD, SDHC, xD

Specification	Value
Discrete graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GT 640
Discrete graphics card memory	3 GB

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Specification	Value
Optical drives quantity	1

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
PS/2 ports quantity	1
S/PDIF out port	Yes

Specification	Value
Product colour	Black

Specification	Value
Operating system installed	Windows 8

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Secure Key	Yes
Processor ARK ID	69114
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes
