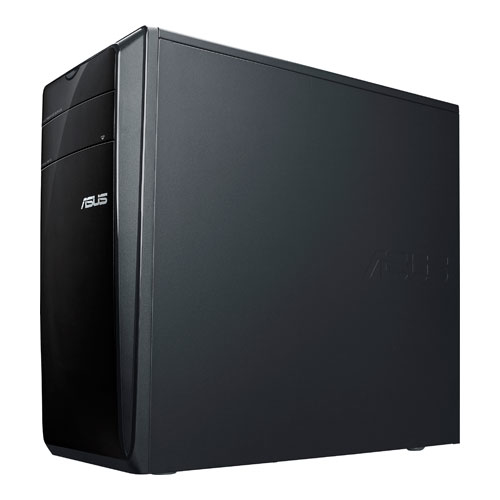

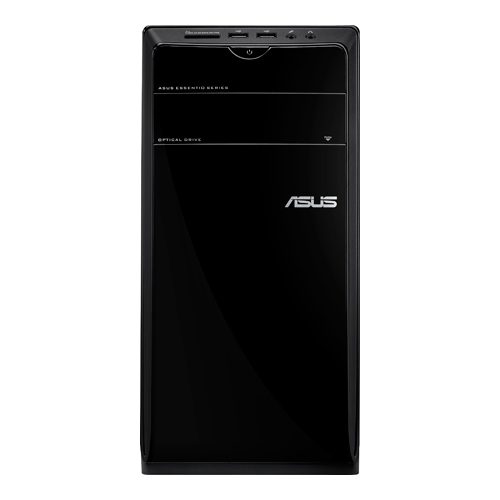

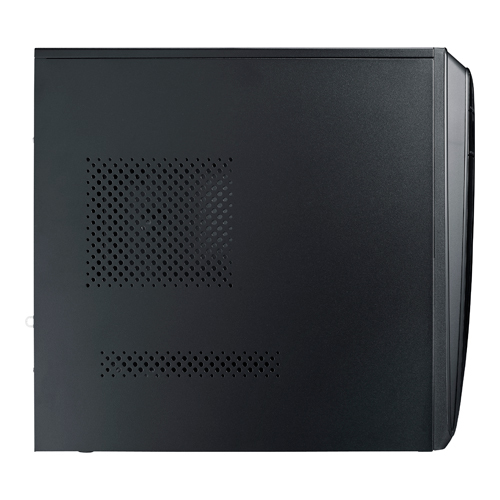

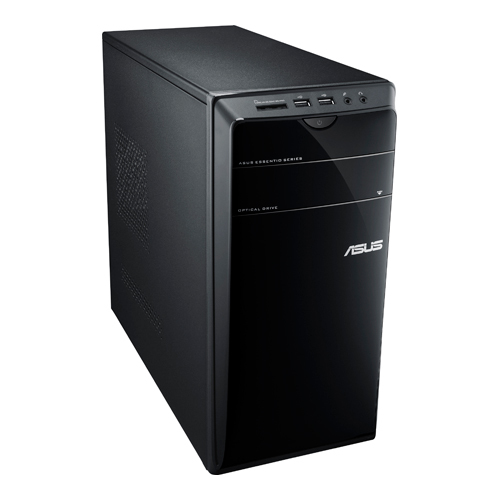

ASUS CM CM1745-BN002S PC AMD A10 A10-5700

8 GB DDR3-SDRAM 2 TB HDD AMD Radeon HD 7470 Windows 8 Black

Model CM1745-BN002SEAN 4716659327868

75 specifications

ProcessorAMD A10
Memory8 GB
Storage2 TB
GraphicsAMD Radeon HD 7470
TypePC
OSWindows 8

See all specifications

Overview

Processor: AMD A10
Memory: 8 GB
Storage: 2 TB
Graphics: AMD Radeon HD 7470
Type: PC
OS: Windows 8

Brand: ASUS
Category: PCs/Workstations
Model: CM1745-BN002S
Part number: CM1745-BN002S
EAN / UPC: 4716659327868
Also known as: ASUS CM CM1745-BN002S PC AMD A10 A10-5700 8 GB DDR3-SDRAM 2 TB HDD AMD Radeon HD 7470 Windows 8 Black

Specifications

75 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	AMD
Processor family	AMD A10
Processor model	A10-5700
Processor cores	4
Processor threads	4
Processor boost frequency	4 GHz
Processor frequency	3.4 GHz
Processor cache	4 MB
Processor cache type	L2
Number of processors installed	1
Processor socket	Socket FM2

Memory

Specification	Value
Internal memory	8 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory clock speed	1600 MHz

Storage

Specification	Value
Total storage capacity	2 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA
HDD speed	7200 RPM
Card reader integrated	Yes
Compatible memory cards	Memory Stick (MS), MMC, MS PRO, SD, SDHC, xD

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	AMD Radeon HD 7470
Discrete graphics card memory	1 GB
Discrete graphics memory type	GDDR3
On-board graphics card family	AMD Radeon HD 7000
On-board graphics card model	AMD Radeon HD 7660D

Performance

Specification	Value
Product type	PC
Motherboard chipset	AMD A85X
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	1
S/PDIF out port	Yes

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Placement supported	Vertical
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	Windows 8
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	No
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No

Audio

Specification	Value
Audio system	Realtek ALC892

Operational conditions

Specification	Value
Storage temperature (T-T)	-40 - 60 °C

Weight & dimensions

Specification	Value
Width	173 mm
Depth	400 mm
Height	360 mm
Weight	7.9 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No
