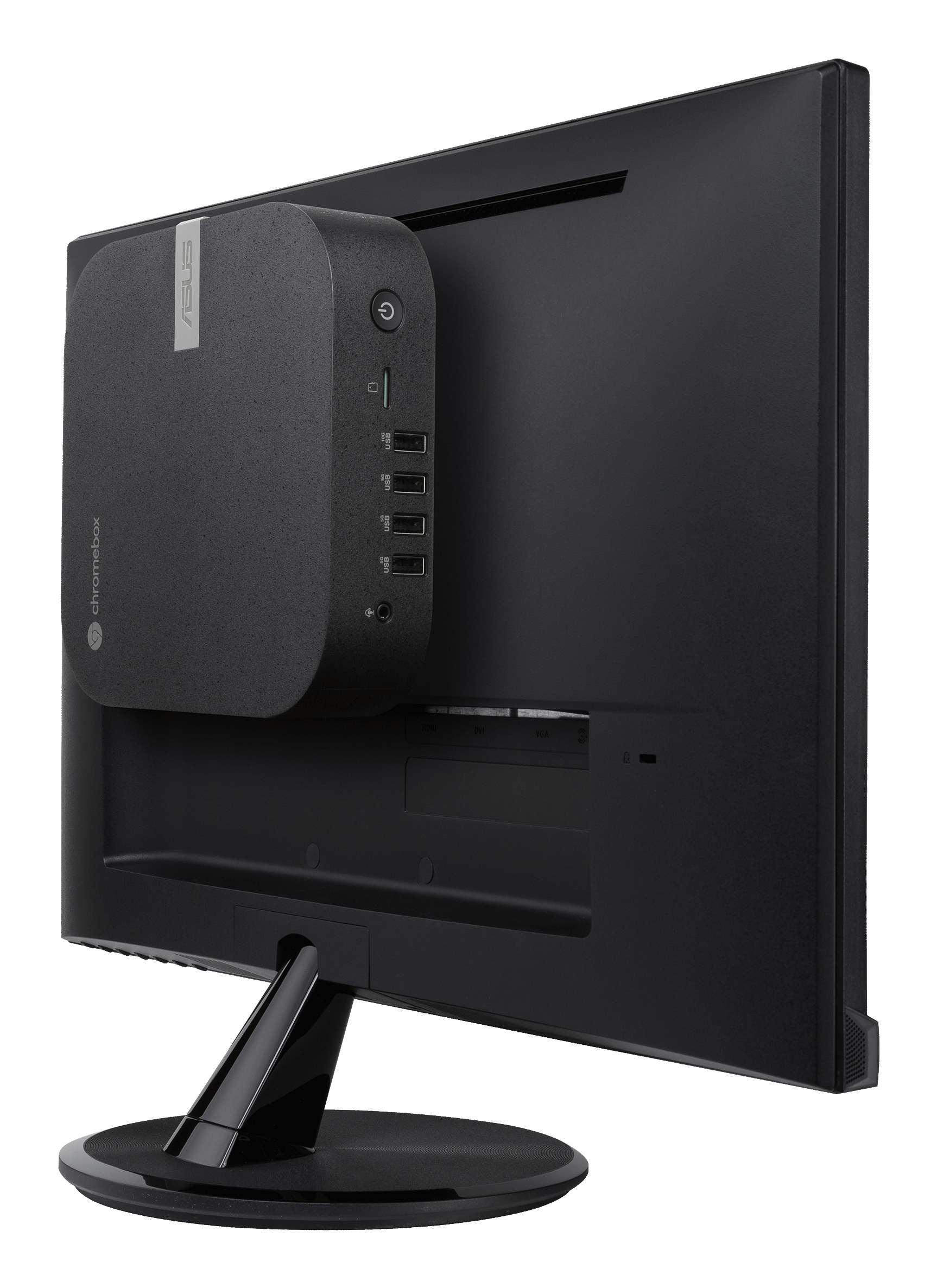

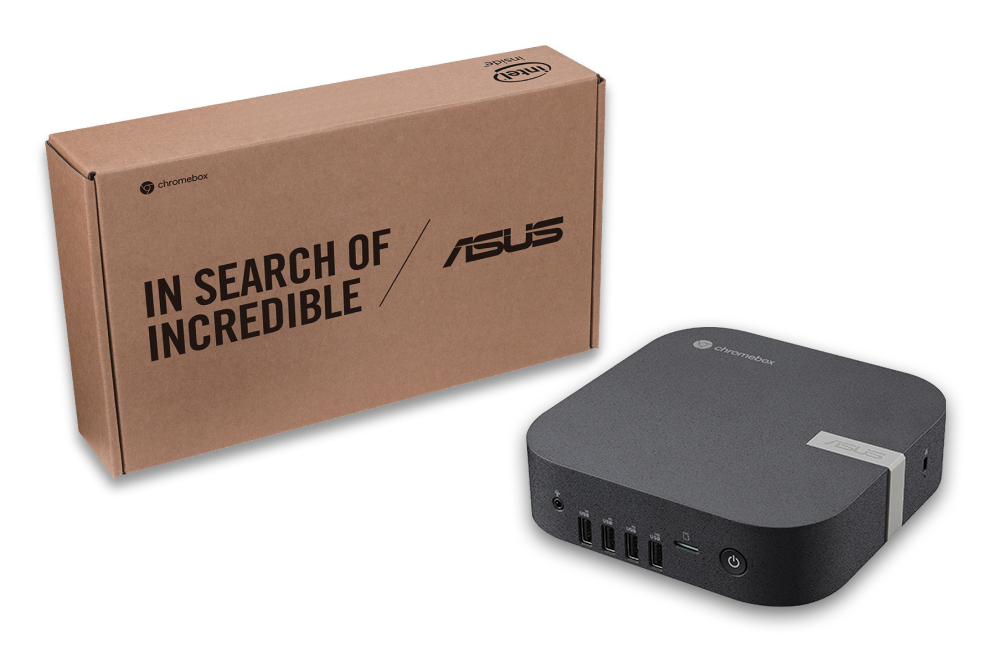

Chromebox CHROMEBOX6-S7009UN Intel Core 7 150U
8 GB DDR5-SDRAM 256 GB SSD ChromeOS Mini PC Black
Model CHROMEBOX6-S7009UNPart no. 90MS03H1-M000D0EAN 4711636711357
83 specifications
- ProcessorIntel Core 7
- Memory8 GB
- Storage256 GB
- GraphicsNot available
- SpeedWi-Fi 7 (802.11be)
- TypeMini PC
Overview
- Processor
- Intel Core 7
- Memory
- 8 GB
- Storage
- 256 GB
- Graphics
- Not available
- Speed
- Wi-Fi 7 (802.11be)
- Type
- Mini PC
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- CHROMEBOX6-S7009UN
- Part number
- 90MS03H1-M000D0
- EAN / UPC
- 4711636711357
- Also known as
- ASUS Chromebox CHROMEBOX6-S7009UN Intel Core 7 150U 8 GB DDR5-SDRAM 256 GB SSD ChromeOS Mini PC Black
Specifications
83 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core 7 |
| Processor generation | Intel Core (Series 1) |
| Processor model | 150U |
| Processor cores | 10 |
| Processor threads | 12 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.7 GHz |
| Efficient-core Max Turbo Frequency | 4 GHz |
| Performance-core base frequency | 1.2 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Processor socket | BGA 1744 |
| Maximum turbo power | 55 W |
| Processor base power | 15 W |
Neural processor unit (NPU)
| Specification | Value |
|---|---|
| Copilot+ PC | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR5-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 5600 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Optical drive type | No |
| Storage media | SSD |
| NVMe | Yes |
| SSD interface | PCI Express 4.0 |
| SSD form factor | M.2 |
| Card reader integrated | Yes |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card | No |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
Performance
| Specification | Value |
|---|---|
| Product type | Mini PC |
| Built-in speaker(s) | No |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Thunderbolt 3 ports quantity | 0 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| On/off button | Yes |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
| Power supply input voltage | 19 V |
Design
| Specification | Value |
|---|---|
| Chassis type | Mini PC |
| Placement supported | Horizontal/Vertical |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Certified refurbished | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ChromeOS |
Display
| Specification | Value |
|---|---|
| Display included | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 166.5 mm |
| Depth | 165.8 mm |
| Height | 45.9 mm |
| Weight | 800 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 334 mm |
| Package depth | 206 mm |
| Package height | 69 mm |
| Package weight | 1.8 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/Wi-Fi/RF/VCCI |
