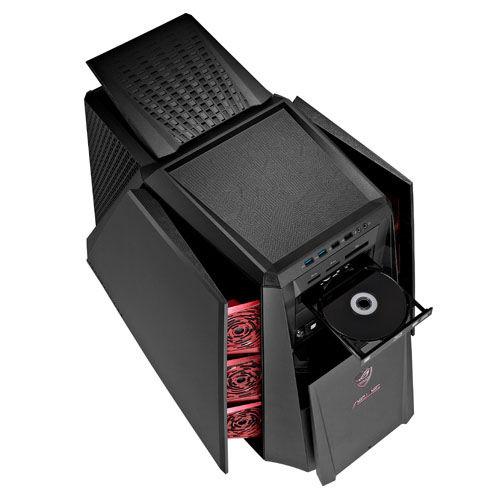

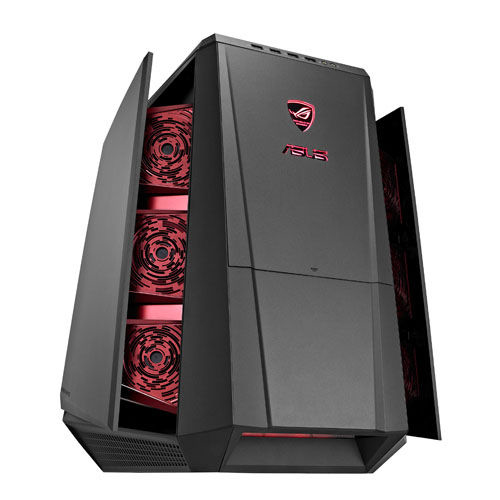

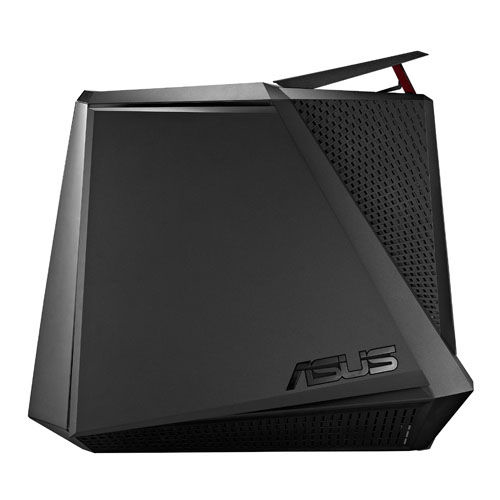

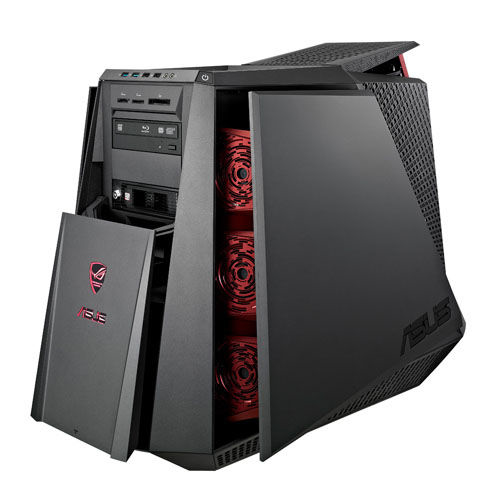

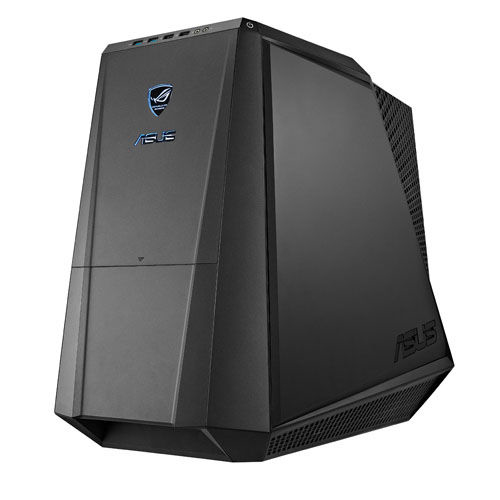

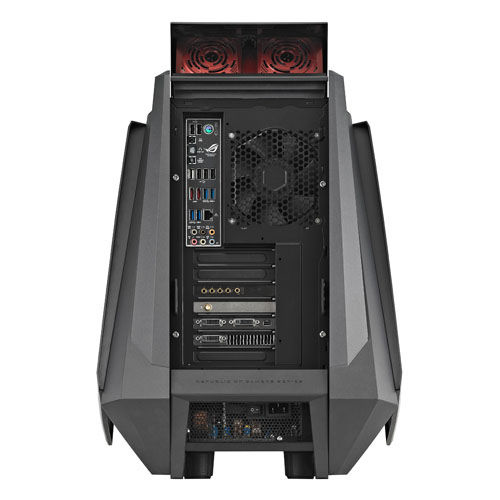

ROG CG8890-C11C PC Intel® Core™ i7 X-series Extreme Edition i7-3960X
16 GB DDR3-SDRAM 2.12 TB HDD+SSD NVIDIA® GeForce® GTX 690 Windows 8 Black, Red
Model CG8890-C11C
122 specifications
- Processori7-3960X
- Memory16 GB
- Storage2.12 TB
- GraphicsNVIDIA® GeForce® GTX 690
- TypePC
- OSWindows 8
Overview
- Processor
- i7-3960X
- Memory
- 16 GB
- Storage
- 2.12 TB
- Graphics
- NVIDIA® GeForce® GTX 690
- Type
- PC
- OS
- Windows 8
- Brand
- ASUS
- Category
- PCs/Workstations
- Model
- CG8890-C11C
- Part number
- CG8890-C11C
- Also known as
- ASUS ROG CG8890-C11C PC Intel® Core™ i7 X-series Extreme Edition i7-3960X 16 GB DDR3-SDRAM 2.12 TB HDD+SSD NVIDIA® GeForce® GTX 690 Windows 8 Black, Red
Specifications
122 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 X-series Extreme Edition |
| Processor generation | 3rd gen Intel® Core™ i7 |
| Processor model | i7-3960X |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.9 GHz |
| Processor frequency | 3.3 GHz |
| Processor cache | 15 MB |
| Processor cache type | Smart Cache |
| Bus type | DMI |
| FSB Parity | No |
| System bus rate | 5 GT/s |
| Processor lithography | 32 nm |
| Processor operating modes | 64-bit |
| Processor series | Intel Core i7-3900 Desktop Extreme Edition Series |
| Processor codename | Sandy Bridge E |
| Thermal Design Power (TDP) | 130 W |
| Tcase | 66.8 °C |
| Maximum number of PCI Express lanes | 40 |
| PCI Express slots version | 2.0 |
| Processor socket | LGA 2011 (Socket R) |
| CPU multiplier (bus/core ratio) | 33 |
| Stepping | C1 |
| Maximum internal memory supported by processor | 64 GB |
| Memory types supported by processor | DDR3-SDRAM |
| Memory clock speeds supported by processor | 1066,1333,1600 MHz |
| Memory bandwidth supported by processor (max) | 51.2 GB/s |
| ECC supported by processor | No |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Maximum internal memory | 16 GB |
| Internal memory type | DDR3-SDRAM |
| Memory slots | 4x DIMM |
| Memory clock speed | 2133 MHz |
| Memory channels | Quad-channel |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 2.12 TB |
| Optical drive type | Blu-Ray DVD Combo |
| Storage media | HDD+SSD |
| Number of storage drives installed | 2 |
| Number of HDDs installed | 1 |
| HDD capacity | 2 TB |
| HDD interface | SATA III |
| HDD speed | 7200 RPM |
| Number of SSDs installed | 1 |
| SSD capacity | 128 GB |
| SSD interface | SATA III |
| Card reader integrated | Yes |
| Compatible memory cards | CF, MMC, MS Duo, MS PRO, MS PRO Duo, Memory Stick (MS), MicroDrive, MicroSD (TransFlash), MiniMMC, MiniSD, RS-MMC, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| Discrete graphics card model | NVIDIA® GeForce® GTX 690 |
| Discrete graphics card memory | 4 GB |
Performance
| Specification | Value |
|---|---|
| Product type | PC |
| Motherboard chipset | Intel® X79 Express |
Optical drive
| Specification | Value |
|---|---|
| Optical drives quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 8 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| HDMI ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| VGA (D-Sub) ports quantity | 0 |
| DVI port | No |
| PS/2 ports quantity | 1 |
| eSATA ports quantity | 2 |
| S/PDIF out port | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 4 |
Power
| Specification | Value |
|---|---|
| Power supply | 900 W |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Red |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 8 |
| Operating system architecture | 64-bit |
| Bundled software | ASUS AI-SUITE II ASUS Easy Update ASUS AI Manager ASUS Backup Wizard ASUS Instant On ASUS Q-fan ASUS@Vibe ASUS AI Charger+ System Level Up ASUS WebStorage |
Display
| Specification | Value |
|---|---|
| Display included | No |
Processor special features
| Specification | Value |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Execute Disable Bit | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Clear Video Technology | No |
| Intel Demand Based Switching | No |
| Intel Dual Display Capable Technology | No |
| Intel Enhanced Halt State | Yes |
| Intel FDI Technology | No |
| Intel Fast Memory Access | No |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 1.00 |
| Intel Rapid Storage Technology | No |
| Intel Smart Response Technology version | 1.00 |
| Intel Trusted Execution Technology | No |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) | No |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | No |
| Intel® InTru™ 3D Technology | No |
| Intel® Insider™ | No |
| Intel® Smart Cache | Yes |
| Intel® Wireless Display (Intel® WiDi) | No |
| Processor ARK ID | 63696 |
| Processor code | SR0GW |
| Processor package size | 52.5 x 45.0 mm |
| Supported instruction sets | AVX, SSE4.1, SSE4.2 |
| Thermal Monitoring Technologies | Yes |
| Intel® Smart Response Technology | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Quick Sync Video Technology | No |
| Intel® My WiFi Technology (Intel® MWT) | No |
| Intel® Identity Protection Technology (Intel® IPT) | Yes |
| Intel® Anti-Theft Technology (Intel® AT) | No |
| Conflict-Free processor | No |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 300 mm |
| Depth | 630 mm |
| Height | 530 mm |
| Weight | 24 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Manual | Yes |
