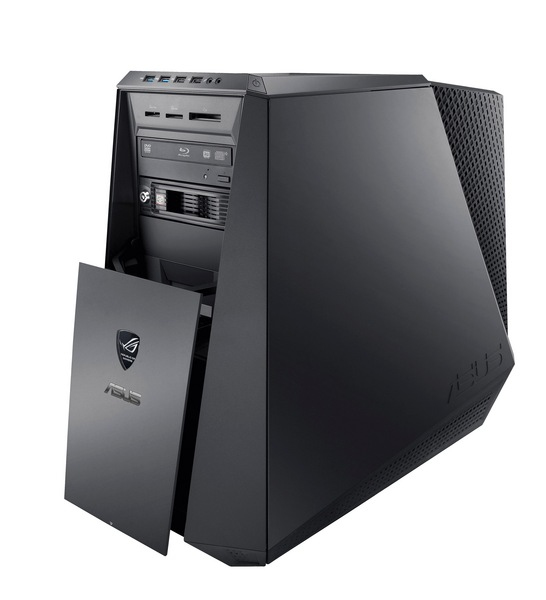

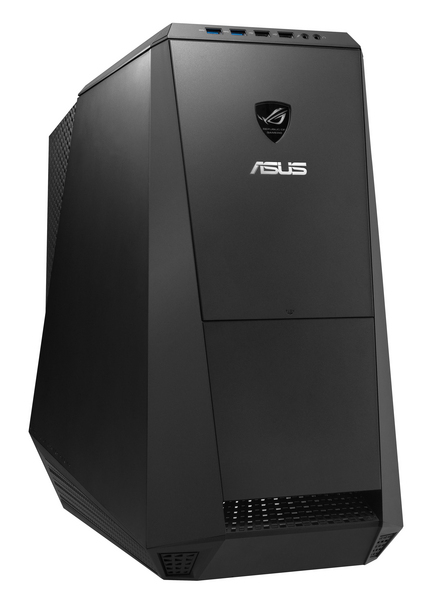

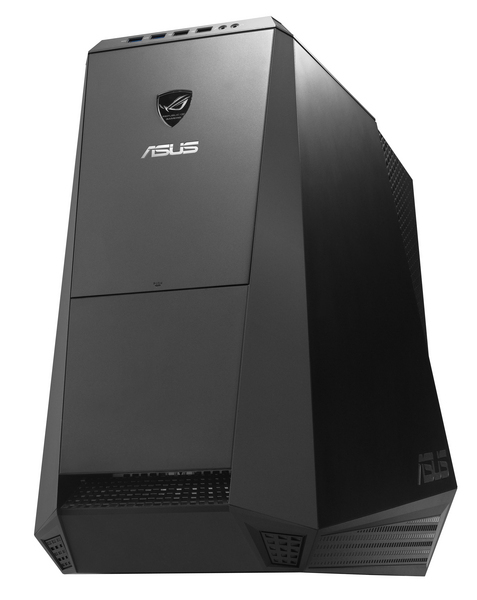

ASUS ROG CG8565-FRROG03 PC Intel® Core™ i7 i7-2600K

8 GB DDR3-SDRAM 1.06 TB HDD+SSD NVIDIA® GeForce® GTX 560 Ti Windows 7 Home Premium Tower Black

Model CG8565-FRROG03

112 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: CG8565-FRROG03
Part number: CG8565-FRROG03
Also known as: ASUS ROG CG8565-FRROG03 PC Intel® Core™ i7 i7-2600K 8 GB DDR3-SDRAM 1.06 TB HDD+SSD NVIDIA® GeForce® GTX 560 Ti Windows 7 Home Premium Tower Black

112 specifications in 15 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	2nd gen Intel® Core™ i7
Processor model	i7-2600K
Processor cores	4
Processor threads	8
Processor boost frequency	3.8 GHz
Processor frequency	3.4 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	95 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	34
Stepping	D2
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	1.06 TB
Optical drive type	DVD-RW
Storage media	HDD+SSD
HDD capacity	1 TB
Number of SSDs installed	1
SSD capacity	64 GB
Card reader integrated	Yes
Compatible memory cards	CF, MMC, MS Duo, MS Micro (M2), MS PRO, MS PRO Duo, Memory Stick (MS), MicroDrive, MicroSD (TransFlash), MiniMMC, MiniSD, RS-MMC, SD, SDHC

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 560 Ti
On-board graphics card model	Intel® HD Graphics 3000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1350 MHz
On-board graphics card ID	0x112

Specification	Value
Product type	PC
Motherboard chipset	Intel® Z68 Express

Specification	Value
Optical drives quantity	1

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
eSATA ports quantity	1
S/PDIF out port	Yes

Specification	Value
Power supply	700 W

Specification	Value
Chassis type	Tower
Product colour	Black

Specification	Value
Operating system installed	Windows 7 Home Premium

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52214
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
