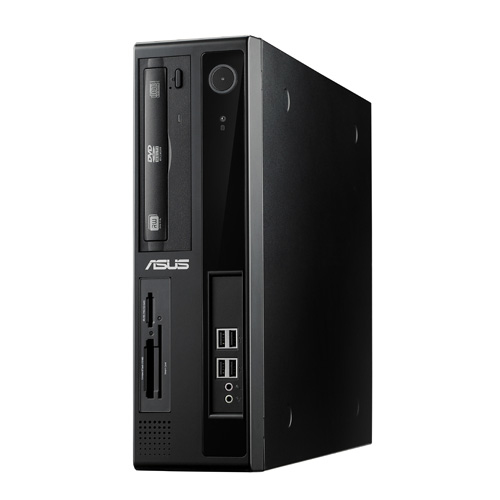

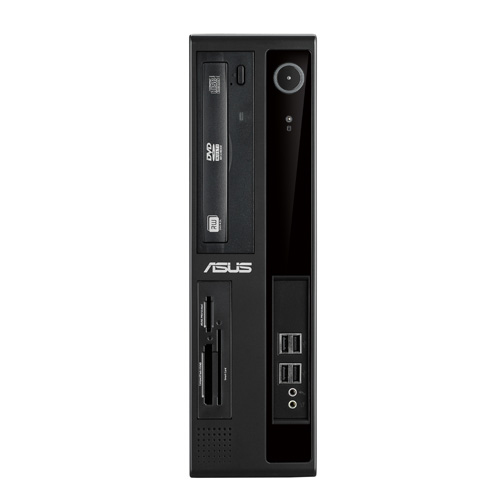

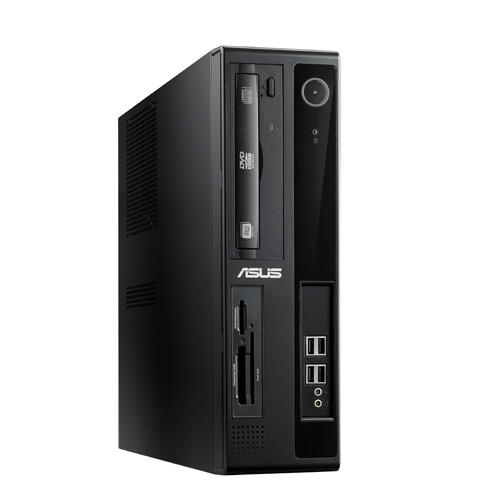

BM BP6230 Intel® Core™ i3 i3-2100

4 GB DDR3-SDRAM 500 GB AMD Radeon HD 5450 Windows 7 Professional SFF PC Black

Model BP6230Part no. BP6230-ITVA19EAN 4716659009733

122 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: BP6230
Part numbers: BP6230-ITVA19, 90PF1EAAX31N7000TC0T
EAN / UPC: 4716659009733, 4716659438786
Also known as: ASUS BM BP6230 Intel® Core™ i3 i3-2100 4 GB DDR3-SDRAM 500 GB AMD Radeon HD 5450 Windows 7 Professional SFF PC Black

122 specifications in 17 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	2nd gen Intel® Core™ i3
Processor model	i3-2100
Processor cores	2
Processor threads	4
Processor frequency	3.1 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i3-2100 Desktop Series
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	35, 65
Tcase	69.1 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	AMD Radeon HD 5450
Discrete graphics card memory	0.512 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Graphics card family	AMD

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0
COM ports quantity	2

Specification	Value
Power supply	250 W

Specification	Value
Operating system installed	Windows 7 Professional

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53422
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No
