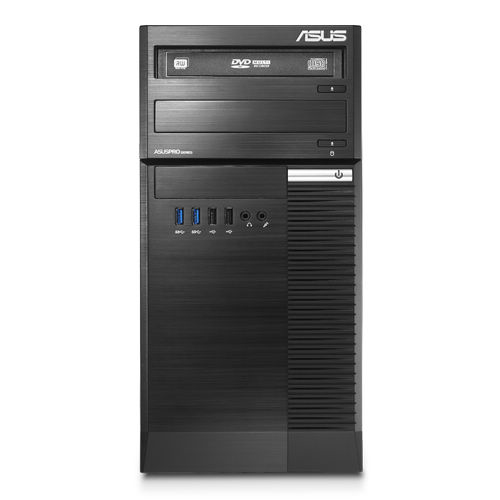

ASUS BM6820-I5334043 Intel® Core™ i5 i5-3340

4 GB DDR3-SDRAM 500 GB HDD FreeDOS Tower PC Black

Model BM6820-I5334043Part no. 90PF1MAA823160018C0TEAN 4716659660958

125 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage500 GB
GraphicsNot available
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: FreeDOS

Brand: ASUS
Category: PCs/Workstations
Model: BM6820-I5334043
Part number: 90PF1MAA823160018C0T
EAN / UPC: 4716659660958
Also known as: ASUS BM6820-I5334043 Intel® Core™ i5 i5-3340 4 GB DDR3-SDRAM 500 GB HDD FreeDOS Tower PC Black

Specifications

125 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	3rd gen Intel® Core™ i5
Processor model	i5-3340
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-3300 Desktop Series
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	77 W
Tcase	67.4 °C
PCI Express configurations	1x8, 1x16, 2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
Stepping	E1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives supported	4
HDD capacity	500 GB
HDD interface	SATA II
HDD speed	7200 RPM

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2500
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card ID	0x152

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Audio output channels	6.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Chassis type	Tower
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS
Drivers included	Yes
Trial software	PC-Cillin, Office

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Secure Key	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	76342
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	364 mm
Height	398 mm
Weight	13.5 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
AC adapter included	No
Manual	Yes

Certificates

Specification	Value
Compliance certificates	RoHS
Certification	BSMI, CB, CE, FCC, UL, CCC, EPEAT, CECP, CCEC, C-Tick, PSB

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
