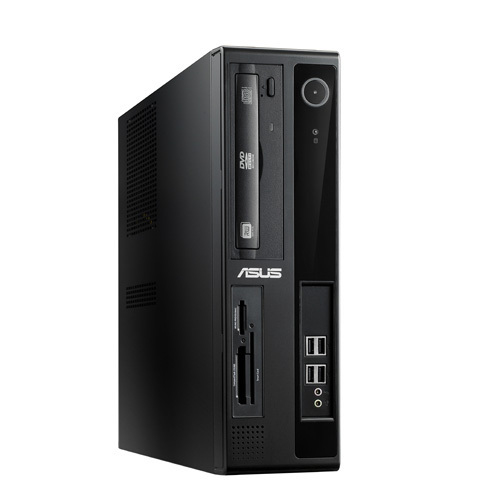

ASUS BM BM6660-SPVA10 Intel® Core™ i5 i5-2400

4 GB DDR3-SDRAM 1 TB Windows 7 Professional Desktop PC Black

Model BM6660-SPVA10Part no. 90PF1AAA48419LE0KC0TEAN 4716659078906

139 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage1 TB
GraphicsNot available
TypePC
OSWindows 7 Professional

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1 TB
Graphics: Not available
Type: PC
OS: Windows 7 Professional

Brand: ASUS
Category: PCs/Workstations
Model: BM6660-SPVA10
Part number: 90PF1AAA48419LE0KC0T
EAN / UPC: 4716659078906
Also known as: ASUS BM BM6660-SPVA10 Intel® Core™ i5 i5-2400 4 GB DDR3-SDRAM 1 TB Windows 7 Professional Desktop PC Black

Specifications

139 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	2nd gen Intel® Core™ i5
Processor model	i5-2400
Processor cores	4
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-2400 Desktop Series
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	95 W
Tcase	72.6 °C
Maximum number of PCI Express lanes	16
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	31
Platform	PC
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066,1333 MHz
Memory bandwidth supported by processor (max)	21 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 4 GB
Memory slots	4x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD-RW
Number of HDDs installed	1
HDD capacity	1 TB
HDD size	3.5"
RAID levels	0, 1, 5, 10

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 2000
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card ID	0x102
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® Q67 Express
Compatible processor series	Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7
Audio output channels	5.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
DisplayPorts quantity	1
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
DC-in jack	Yes
Serial ports quantity	1
Parallel ports quantity	1

Expansion slots

Specification	Value
Number of 3.5" bays	4
PCI Express x4 slots	1
PCI Express x16 slots	1
PCI slots	2

Power

Specification	Value
Power supply	350 W

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	2
Product colour	Black
External drive bays	2x 3.5", 2x 5.25"
Internal drive bays	2x 3.5"

Software

Specification	Value
Operating system installed	Windows 7 Professional
Mac compatibility	No
Drivers included	Yes
Bundled software	PC-cillin 2011 Trail Office 2010 starter Nero 9 Essentials Microsoft Pack PowerDVD FarStone

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	52207
Processor package size	37.5 x 37.5 mm
Supported instruction sets	AVX
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Audio

Specification	Value
Audio system	VIA VT1708S

Weight & dimensions

Specification	Value
Width	193 mm
Depth	365 mm
Height	420 mm
Weight	13.5 kg
Dimensions (WxDxH)	193 x 365 x 420 mm

Packaging data

Specification	Value
Package dimensions (WxDxH)	320 x 500 x 595 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
AC adapter included	No

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	BSMI, CB, CE, FCC, UL, CCC

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
