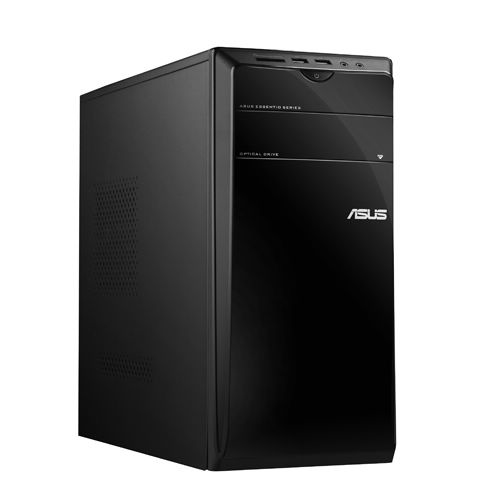

ASUS BM6620-G16540C0 PC Intel® Celeron® G G1620

4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Desktop Black

Model BM6620-G16540C0

106 specifications

ProcessorIntel® Celeron® G
Memory4 GB
Storage500 GB
TypePC
OSWindows 7 Professional
Weight13.5 kg

See all specifications

Overview

Processor: Intel® Celeron® G
Memory: 4 GB
Storage: 500 GB
Type: PC
OS: Windows 7 Professional
Weight: 13.5 kg

Brand: ASUS
Category: PCs/Workstations
Model: BM6620-G16540C0
Part number: BM6620-G16540C0
Also known as: ASUS BM6620-G16540C0 PC Intel® Celeron® G G1620 4 GB DDR3-SDRAM 500 GB HDD Windows 7 Professional Desktop Black

Specifications

106 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G1620
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G1000 Series for Desktop
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	55 W
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	27
Stepping	P0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD Super Multi
Storage media	HDD
HDD speed	7200 RPM

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes

Expansion slots

Specification	Value
Number of 3.5" bays	4

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	2
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel HD Graphics	Yes
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	71073
Processor code	SR10L
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	364 mm
Height	404 mm
Weight	13.5 kg

Packaging data

Specification	Value
Package width	295 mm
Package depth	490 mm
Package height	520 mm

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	BSMI, CB, CE, FCC, UL, CCC, Energy Star, EPEAT , CECP, CCEC, C-Tick, VCCI
