ASUS BM BM1AF-ITVA47A Intel® Core™ i5 i5-4440

4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® G505 Windows 8 Pro Desktop PC Black

Model BM1AF-ITVA47APart no. 90PF0021-M00760EAN 4716659655510

154 specifications

ProcessorIntel® Core™ i5
Memory4 GB
Storage1 TB
GraphicsNVIDIA® GeForce® G505
TypePC
OSWindows 8 Pro

See all specifications

Overview

Processor: Intel® Core™ i5
Memory: 4 GB
Storage: 1 TB
Graphics: NVIDIA® GeForce® G505
Type: PC
OS: Windows 8 Pro

Brand: ASUS
Category: PCs/Workstations
Model: BM1AF-ITVA47A
Part numbers: 90PF0021-M00760, 90PF0021-M00780
EAN / UPC: 4716659655510, 4716659661030
Also known as: ASUS BM BM1AF-ITVA47A Intel® Core™ i5 i5-4440 4 GB DDR3-SDRAM 1 TB HDD NVIDIA® GeForce® G505 Windows 8 Pro Desktop PC Black

Specifications

154 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i5
Processor generation	4th gen Intel® Core™ i5
Processor model	i5-4440
Processor cores	4
Processor threads	4
Processor boost frequency	3.3 GHz
Processor frequency	3.1 GHz
Processor cache	6 MB
Processor cache type	Smart Cache
Bus type	DMI2
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i5-4400 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	84 W
Tcase	72.72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	1
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	32 GB
Internal memory type	DDR3-SDRAM
Memory slots	4x DIMM
Memory clock speed	1600 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	1 TB
Optical drive type	DVD Super Multi
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD speed	7200 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® G505
Discrete graphics card memory	1 GB
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® B85
Audio output channels	5.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi	Yes
Wake-on-LAN ready	Yes

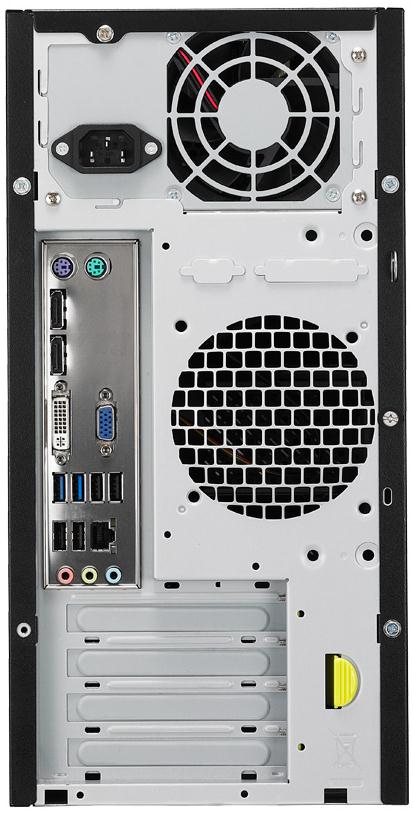

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
DisplayPorts quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	No
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
S/PDIF out port	No
SmartCard slot	No

Expansion slots

Specification	Value
Number of 3.5" bays	3
PCI Express x1 slots	1
PCI Express x16 slots	2
PCI slots	1

Design

Specification	Value
Chassis type	Desktop
Number of 5.25" bays	2
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 8 Pro
Operating system architecture	64-bit
Drivers included	Yes
Trial software	Microsoft Office, PC-Cillin

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Identity Protection Technology version	1.00
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	75038
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013D
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	2.0
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Weight & dimensions

Specification	Value
Width	180 mm
Depth	404 mm
Height	364 mm
Weight	13.5 kg

Packaging data

Specification	Value
Package width	295 mm
Package depth	490 mm
Package height	520 mm

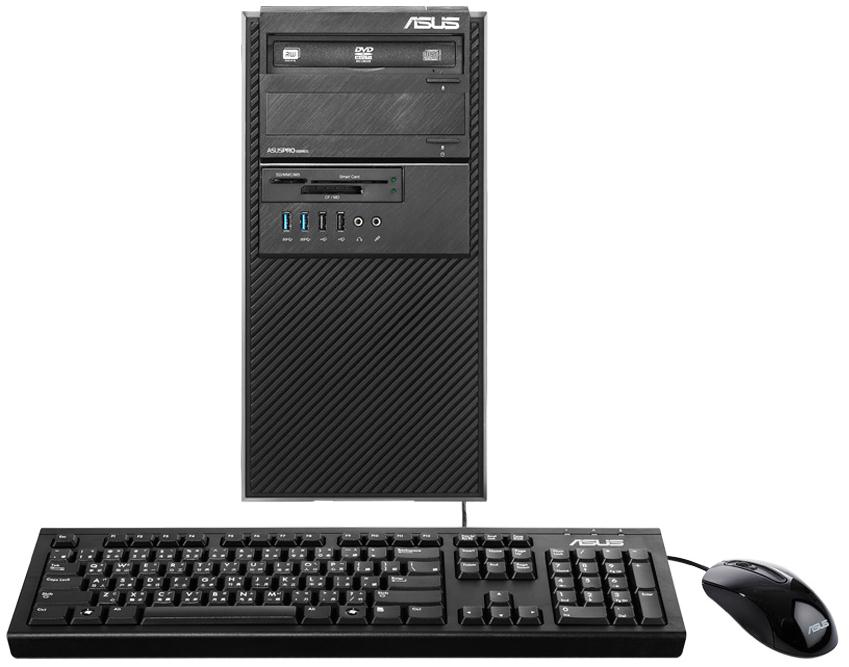

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Manual	Yes

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
