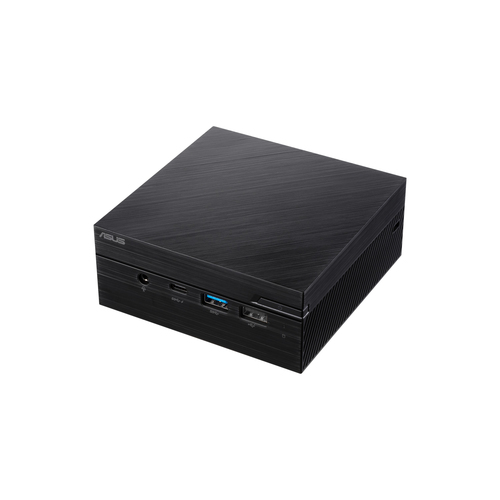

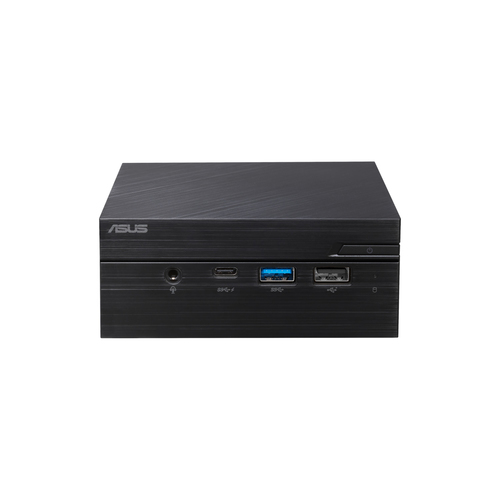

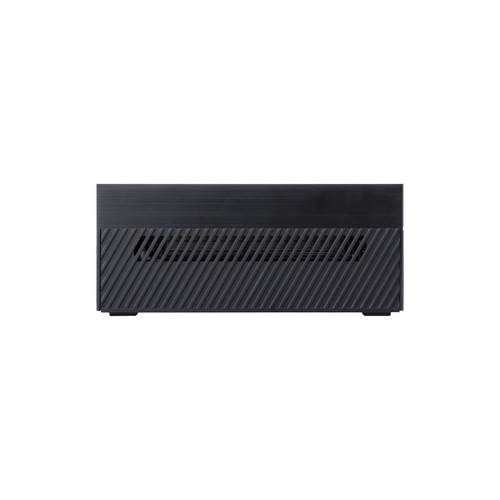

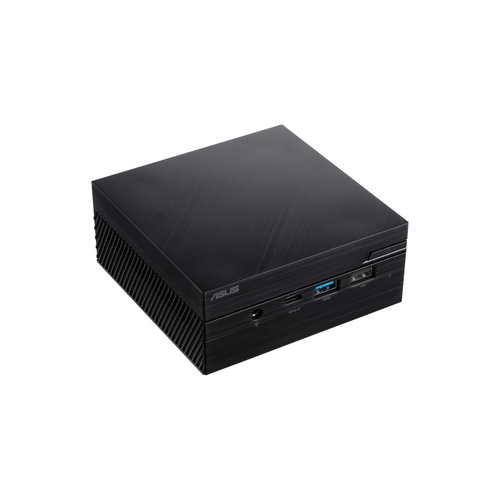

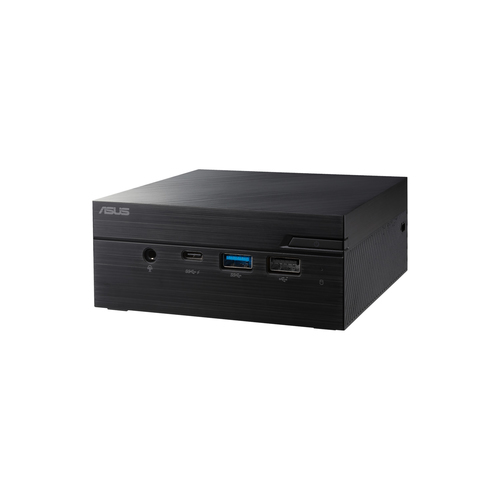

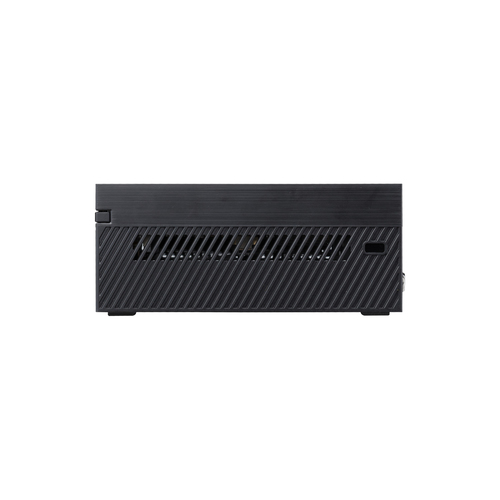

ASUS 90MS01D1-M00460 PC/workstation Intel® Core™ i3

8 GB DDR4-SDRAM 128 GB SSD Mini PC Black

Model 90MS01D1-M00460EAN 4718017108041

84 specifications

Overview

Brand: ASUS
Category: PCs/Workstations
Model: 90MS01D1-M00460
Part number: 90MS01D1-M00460
EAN / UPC: 4718017108041
Also known as: ASUS 90MS01D1-M00460 PC/workstation Intel® Core™ i3 8 GB DDR4-SDRAM 128 GB SSD Mini PC Black

84 specifications in 14 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i3
Processor generation	8th gen Intel® Core™ i3
Processor cores	2
Processor threads	4
Processor boost frequency	3.4 GHz
Processor frequency	2.2 GHz
Processor cache	4 MB
Processor cache type	Smart Cache
Bus type	OPI
System bus rate	4 GT/s
Processor lithography	14 nm
Processor operating modes	64-bit
Processor codename	Kaby Lake
Thermal Design Power (TDP)	15 W
Configurable TDP-down	10 W
Configurable TDP-down frequency	0.8 GHz
Tjunction	100 °C
Maximum number of PCI Express lanes	12
PCI Express configurations	1x2+2x1, 1x4, 2x2, 4x1
PCI Express slots version	3.0
Number of processors installed	1
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2133,2400 MHz
Memory bandwidth supported by processor (max)	34.1 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	128 GB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of HDDs installed	0
Number of SSDs installed	1
SSD capacity	128 GB
SSD interface	M.2
Card reader integrated	No

Specification	Value
Discrete graphics card	No
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card model	Intel® HD Graphics 620

Specification	Value
Product type	Mini PC

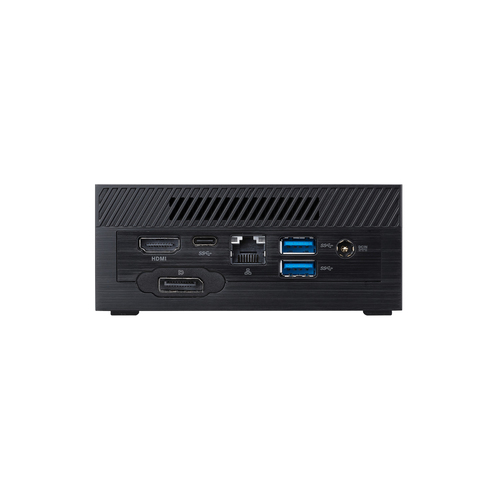

Specification	Value
USB 2.0 ports quantity	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Thunderbolt 3 ports quantity	0
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Combo headphone/mic port	Yes
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
DC-in jack	Yes

Specification	Value
Power supply	65 W

Specification	Value
Operating system installed	No

Specification	Value
Display included	No

Specification	Value

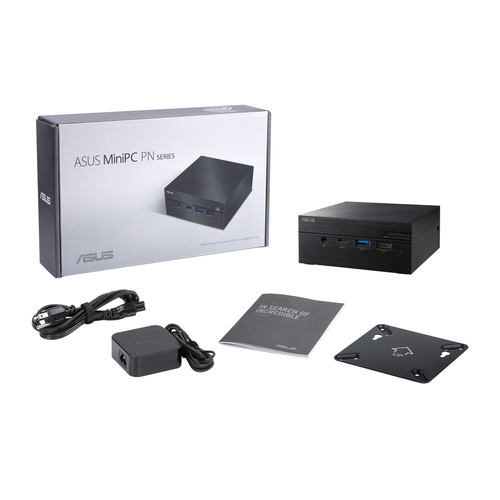

VESA mount included	Yes
AC adapter included	Yes

Specification	Value
Certification	BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI
