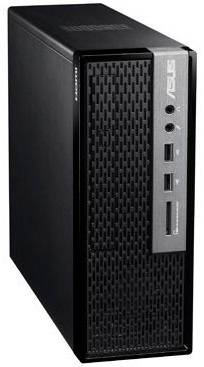

ASUS BT 6130-ITVA43 Intel® Celeron® G G1610

2 GB DDR3-SDRAM 500 GB HDD FreeDOS SFF PC Black

Model 6130-ITVA43Part no. 90PF1KAAL11150007C0TEAN 4716659413516

126 specifications

ProcessorIntel® Celeron® G
Memory2 GB
Storage500 GB
GraphicsNot available
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel® Celeron® G
Memory: 2 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: FreeDOS

Brand: ASUS
Category: PCs/Workstations
Model: 6130-ITVA43
Part number: 90PF1KAAL11150007C0T
EAN / UPC: 4716659413516
Also known as: ASUS BT 6130-ITVA43 Intel® Celeron® G G1610 2 GB DDR3-SDRAM 500 GB HDD FreeDOS SFF PC Black

Specifications

126 specifications in 18 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G1610
Processor cores	2
Processor threads	2
Processor frequency	2.6 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G1000 Series for Desktop
Processor codename	Ivy Bridge
Thermal Design Power (TDP)	55 W
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	26
Stepping	P0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB
HDD interface	SATA III
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	650 MHz
On-board graphics card dynamic frequency (max)	1050 MHz

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61
Audio output channels	6.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Bluetooth	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2

Expansion slots

Specification	Value
Number of 3.5" bays	1
PCI Express x16 slots	1

Power

Specification	Value
Power supply	250 W

Design

Specification	Value
Chassis type	SFF
Number of 5.25" bays	1
Product colour	Black
Cooling type	Active

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	No
Intel® Small Business Advantage (Intel® SBA)	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	71072
Processor code	SR10K
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2011C
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	92 mm
Depth	320 mm
Height	240 mm
Weight	7 kg

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	BSMI, CB, CE, FCC, UL, CCC, C-Tick, VCCI, PSB
