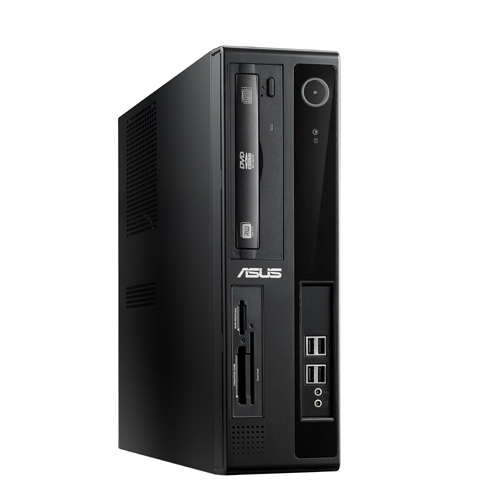

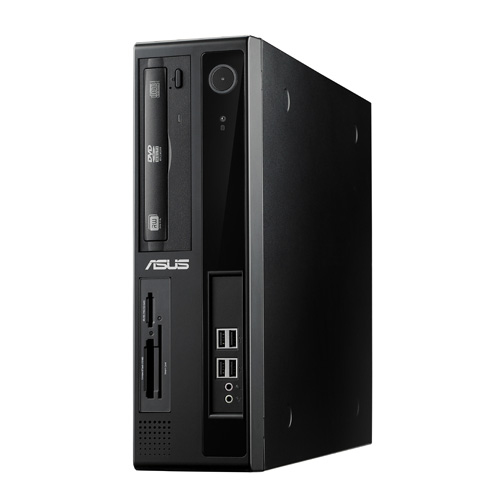

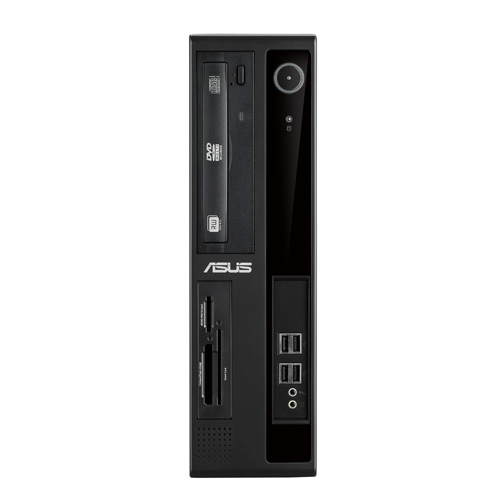

ASUS BP 30-ITVA21A Intel Pentium G G630

4 GB DDR3-SDRAM 500 GB Windows 7 Professional SFF PC Black

Model 30-ITVA21APart no. BP6230-ITVA21AEAN 886227172016

115 specifications

ProcessorIntel Pentium G
Memory4 GB
Storage500 GB
TypePC
OSWindows 7 Professional
Weight11 kg

See all specifications

Overview

Processor: Intel Pentium G
Memory: 4 GB
Storage: 500 GB
Type: PC
OS: Windows 7 Professional
Weight: 11 kg

Brand: ASUS
Category: PCs/Workstations
Model: 30-ITVA21A
Part number: BP6230-ITVA21A
EAN / UPC: 886227172016
Also known as: ASUS BP 30-ITVA21A Intel Pentium G G630 4 GB DDR3-SDRAM 500 GB Windows 7 Professional SFF PC Black

Specifications

115 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G630
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	32 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G600 Series for Desktop
Processor codename	Sandy Bridge
Thermal Design Power (TDP)	65 W
Tcase	69.1 °C
PCI Express slots version	2.0
Number of processors installed	1
Processor socket	LGA 1155 (Socket H2)
CPU multiplier (bus/core ratio)	27
Maximum number of SMP processors	1
Stepping	Q0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1066 MHz
Memory bandwidth supported by processor (max)	17 GB/s

Memory

Specification	Value
Internal memory	4 GB
Maximum internal memory	8 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD±RW
Number of HDDs installed	1
HDD capacity	500 GB
Floppy drive installed	No

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Number of displays supported (on-board graphics)	2
On-board graphics card base frequency	850 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
Graphics card family	Intel

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H61

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes
Ethernet interface type	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	8
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	Yes
PS/2 ports quantity	2
Firewire (IEEE 1394) ports	0
Serial ports quantity	0
Parallel ports quantity	0
Headphone connectivity	3.5 mm
Microphone connectivity	3.5 mm
USB connector type	USB Type-A

Expansion slots

Specification	Value
PCI Express x1 slots	2
PCI Express x16 slots	1
PCI slots	1

Power

Specification	Value
Power supply type	AC/DC
Power supply	250 W

Design

Specification	Value
Chassis type	SFF
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Professional

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Dual Display Capable Technology	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Fast Memory Access	Yes
Intel Flex Memory Access	Yes
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	53483
Processor code	SR05S
Processor package size	37.5 x 37.5 mm
Thermal Monitoring Technologies	Yes
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	No

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	92 mm
Depth	390 mm
Height	330 mm
Weight	11 kg

Packaging data

Specification	Value
Package dimensions (WxDxH)	255 x 555 x 490 mm

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes

Certificates

Specification	Value
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Certification	BSMI, CB, CE, FCC, UL, CCC, CECP

Sustainability

Specification	Value
Sustainability certificates	EPEAT Silver, ENERGY STAR
