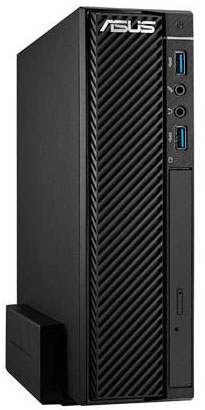

ASUS BT 1AD-ITVA70 Intel® Celeron® G G1820

2 GB DDR3-SDRAM 500 GB HDD FreeDOS SFF PC Black

Model 1AD-ITVA70Part no. 90PF00E1-M00140EAN 4716659712213

144 specifications

ProcessorIntel® Celeron® G
Memory2 GB
Storage500 GB
GraphicsNot available
TypePC
OSFreeDOS

See all specifications

Overview

Processor: Intel® Celeron® G
Memory: 2 GB
Storage: 500 GB
Graphics: Not available
Type: PC
OS: FreeDOS

Brand: ASUS
Category: PCs/Workstations
Model: 1AD-ITVA70
Part number: 90PF00E1-M00140
EAN / UPC: 4716659712213
Also known as: ASUS BT 1AD-ITVA70 Intel® Celeron® G G1820 2 GB DDR3-SDRAM 500 GB HDD FreeDOS SFF PC Black

Specifications

144 specifications in 20 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Celeron® G
Processor model	G1820
Processor cores	2
Processor threads	2
Processor frequency	2.7 GHz
Processor cache	2 MB
Processor cache type	Smart Cache
Bus type	DMI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Celeron Processor G1000 Series for Desktop
Processor codename	Haswell
Thermal Design Power (TDP)	53 W
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	21.3 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory layout (slots x size)	1 x 2 GB
Memory slots	2x DIMM
Memory clock speed	1333 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Optical drive type	DVD-RW
Storage media	HDD
Number of HDDs installed	1
HDD capacity	500 GB

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	Not available
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1050 MHz
On-board graphics card DirectX version	11.1

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels

Optical drive

Specification	Value
Optical drives quantity	1

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No
Wake-on-LAN ready	Yes

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
SmartCard slot	No

Expansion slots

Specification	Value
Mini PCI Express slots	1

Power

Specification	Value
Power supply	120 W

Design

Specification	Value
Chassis type	SFF
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Number of 2.5" bays	1
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Secure Key Technology version	1.00
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Secure Key	Yes
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	78955
Processor code	SR1CN
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HD

Weight & dimensions

Specification	Value
Width	70 mm
Depth	239 mm
Height	237 mm

Packaging data

Specification	Value
Package width	330 mm
Package depth	500 mm
Package height	220 mm
Package weight	5.3 kg

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	FCC, CE, CB, C-Tick, UL
