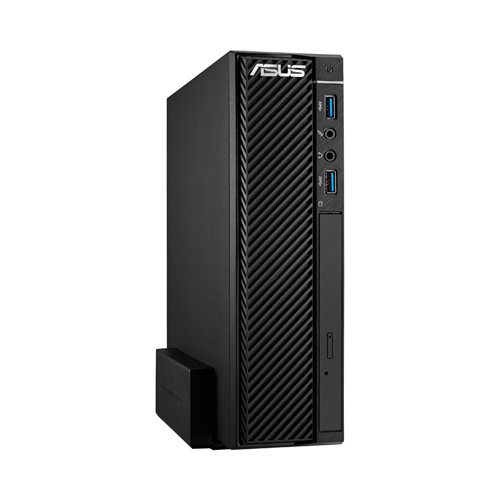

ASUS BT 1AD-ITVA02 Intel Pentium G G3220

2 GB DDR3-SDRAM 500 GB HDD FreeDOS Desktop PC Black

Model 1AD-ITVA02Part no. 90PF00E2-M00780EAN 4716659805809

134 specifications

ProcessorIntel Pentium G
Memory2 GB
Storage500 GB
TypePC
OSFreeDOS
Weight5.3 kg

See all specifications

Overview

Processor: Intel Pentium G
Memory: 2 GB
Storage: 500 GB
Type: PC
OS: FreeDOS
Weight: 5.3 kg

Brand: ASUS
Category: PCs/Workstations
Model: 1AD-ITVA02
Part number: 90PF00E2-M00780
EAN / UPC: 4716659805809
Also known as: ASUS BT 1AD-ITVA02 Intel Pentium G G3220 2 GB DDR3-SDRAM 500 GB HDD FreeDOS Desktop PC Black

Specifications

134 specifications in 19 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Pentium G
Processor model	G3220
Processor cores	2
Processor threads	2
Processor frequency	3 GHz
Processor cache	3 MB
Processor cache type	Smart Cache
Bus type	QPI
FSB Parity	No
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Pentium G3000 series for Desktop
Processor codename	Haswell
Thermal Design Power (TDP)	54, 53
Tcase	72 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	Yes

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	16 GB
Internal memory type	DDR3-SDRAM
Memory slots	2x DIMM
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	500 GB
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	500 GB

Graphics

Specification	Value
On-board graphics card	Yes
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics
Maximum on-board graphics card memory	1.74 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1100 MHz
On-board graphics card DirectX version	11.1

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel® H81
Audio output channels	7.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	No

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	Yes
SmartCard slot	No

Expansion slots

Specification	Value
Mini PCI Express slots	1

Power

Specification	Value
Power supply	120 W

Design

Specification	Value
Chassis type	Desktop
Placement supported	Horizontal/Vertical
Number of 5.25" bays	1
Number of 2.5" bays	1
Liquid cooling system	No
Product colour	Black

Software

Specification	Value
Operating system installed	FreeDOS

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	Yes
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Stable Image Platform Program (SIPP) version	0.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Small Business Advantage (Intel® SBA)	No
Intel® Virtualization Technology (Intel® VT)	VT-x
Intel® Wireless Display (Intel® WiDi)	No
Processor ARK ID	77773
Processor code	SR1CG
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013C
Intel® Smart Response Technology	No
Intel® Rapid Start Technology	No
Intel® Turbo Boost Technology	No
Intel Smart Connect Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	No
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Identity Protection Technology (Intel® IPT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	Yes

Audio

Specification	Value
Audio system	HDA
Speakers supplied	Yes

Weight & dimensions

Specification	Value
Width	70 mm
Depth	239 mm
Height	237 mm
Weight	5.3 kg

Packaging data

Specification	Value
Package width	330 mm
Package depth	500 mm
Package height	220 mm

Packaging content

Specification	Value
Mouse included	No
Keyboard included	No

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR

Certificates

Specification	Value
Certification	CB, CE, FCC, UL, EPEAT, C-Tick
