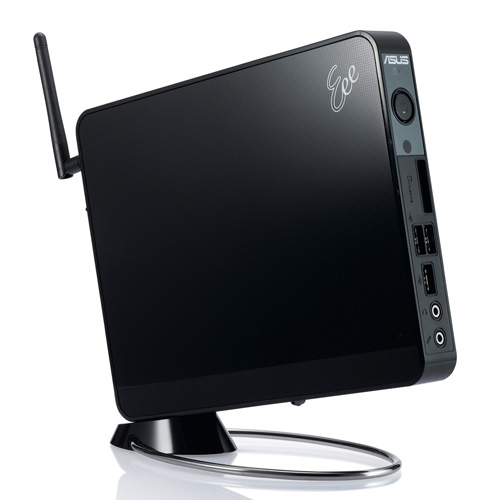

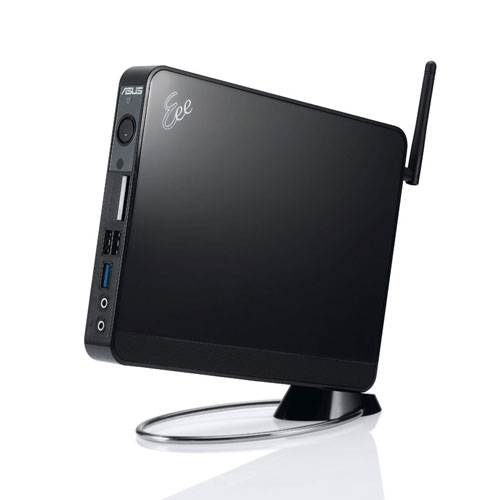

ASUS EeeBox PC 1012P Intel Atom® D510

2 GB DDR2-SDRAM 250 GB NVIDIA® ION™ Windows 7 Home Premium USFF Black

Model 1012PPart no. B1012P-B0150EAN 4719543341025

112 specifications

ProcessorIntel Atom®
Memory2 GB
Storage250 GB
GraphicsNVIDIA® ION™
SpeedWi-Fi 4 (802.11n)
TypePC

See all specifications

Overview

Processor: Intel Atom®
Memory: 2 GB
Storage: 250 GB
Graphics: NVIDIA® ION™
Speed: Wi-Fi 4 (802.11n)
Type: PC

Brand: ASUS
Category: PCs/Workstations
Model: 1012P
Part numbers: B1012P-B0150, EB1012P-B038E, EB1012P-W0060, EB1012P-W021E
EAN / UPC: 4719543341025, 4719543332887, 4719543332894, 4719543332900
Also known as: ASUS EeeBox PC 1012P Intel Atom® D510 2 GB DDR2-SDRAM 250 GB NVIDIA® ION™ Windows 7 Home Premium USFF Black

Specifications

112 specifications in 16 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel Atom®
Processor model	D510
Processor cores	2
Processor threads	4
Processor frequency	1.66 GHz
Processor cache	1 MB
Processor cache type	L2
Bus type	DMI
FSB Parity	No
Processor lithography	45 nm
Processor operating modes	64-bit
Processor series	Intel Atom D500 Series
Processor codename	Pineview
Thermal Design Power (TDP)	13 W
Tjunction	100 °C
Number of processors installed	1
Processor socket	BGA 559
Number of Processing Die Transistors	176 M
Processing Die size	87 mm²
Stepping	B0
Maximum internal memory supported by processor	4 GB
Memory types supported by processor	DDR2 667/800
Memory bandwidth supported by processor (max)	6.4 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	2 GB
Maximum internal memory	4 GB
Internal memory type	DDR2-SDRAM
Memory slots	2x SO-DIMM
Memory clock speed	800 MHz
Memory channels	Single-channel

Storage

Specification	Value
Total storage capacity	250 GB
Optical drive type	No
Number of HDDs installed	1
HDD capacity	250 GB
HDD interface	SATA II
HDD speed	5400 RPM
Card reader integrated	Yes

Graphics

Specification	Value
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® ION™
Discrete graphics card memory	0.512 GB
On-board graphics card model	Integrated
Graphics card family	NVIDIA

Performance

Specification	Value
Product type	PC
Motherboard chipset	Intel NM10

Optical drive

Specification	Value
Optical drives quantity	0

Network

Specification	Value
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Networking features	Gigabit Ethernet

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
HDMI ports quantity	1
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
VGA (D-Sub) ports quantity	1
DVI port	No
S/PDIF out port	Yes
DC-in jack	Yes
HDMI	Yes
eSATA/USB 2.0 ports quantity	1

Power

Specification	Value
Power supply	65 W
Power consumption (typical)	27.134 W

Design

Specification	Value
Chassis type	USFF
Product colour	Black

Software

Specification	Value
Operating system installed	Windows 7 Home Premium
Operating system architecture	64-bit

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
Embedded options available	Yes
Enhanced Intel SpeedStep Technology	No
Execute Disable Bit	Yes
Idle States	No
Intel 64	Yes
Intel Clear Video Technology	No
Intel Demand Based Switching	No
Intel Dual Display Capable Technology	No
Intel Enhanced Halt State	No
Intel FDI Technology	No
Intel Fast Memory Access	No
Intel Flex Memory Access	No
Intel Rapid Storage Technology	No
Intel Trusted Execution Technology	No
Intel VT-x with Extended Page Tables (EPT)	No
Intel Virtualization Technology (VT-x)	No
Intel Virtualization Technology for Directed I/O (VT-d)	No
Intel® AES New Instructions (Intel® AES-NI)	No
Intel® Clear Video HD Technology (Intel® CVT HD)	No
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	No
Intel® InTru™ 3D Technology	No
Intel® Insider™	No
Intel® Wireless Display (Intel® WiDi)	No
Physical Address Extension (PAE)	32 bit
Processor ARK ID	43098
Processor code	SLBLA
Processor package size	22 x 22 mm
Supported instruction sets	SSE2, SSE3, SSSE3
Thermal Monitoring Technologies	No
Intel® Turbo Boost Technology	No
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	No
Intel® My WiFi Technology (Intel® MWT)	No
Intel® Anti-Theft Technology (Intel® AT)	No
Conflict-Free processor	No

Weight & dimensions

Specification	Value
Width	223 mm
Depth	27 mm
Height	178 mm
Weight	1.17 kg
Dimensions (WxDxH)	223 x 27 x 178 mm

Packaging content

Specification	Value
Remote control included	Yes

Other features

Specification	Value
Intel segment tagging	Enterprise, Small Business
