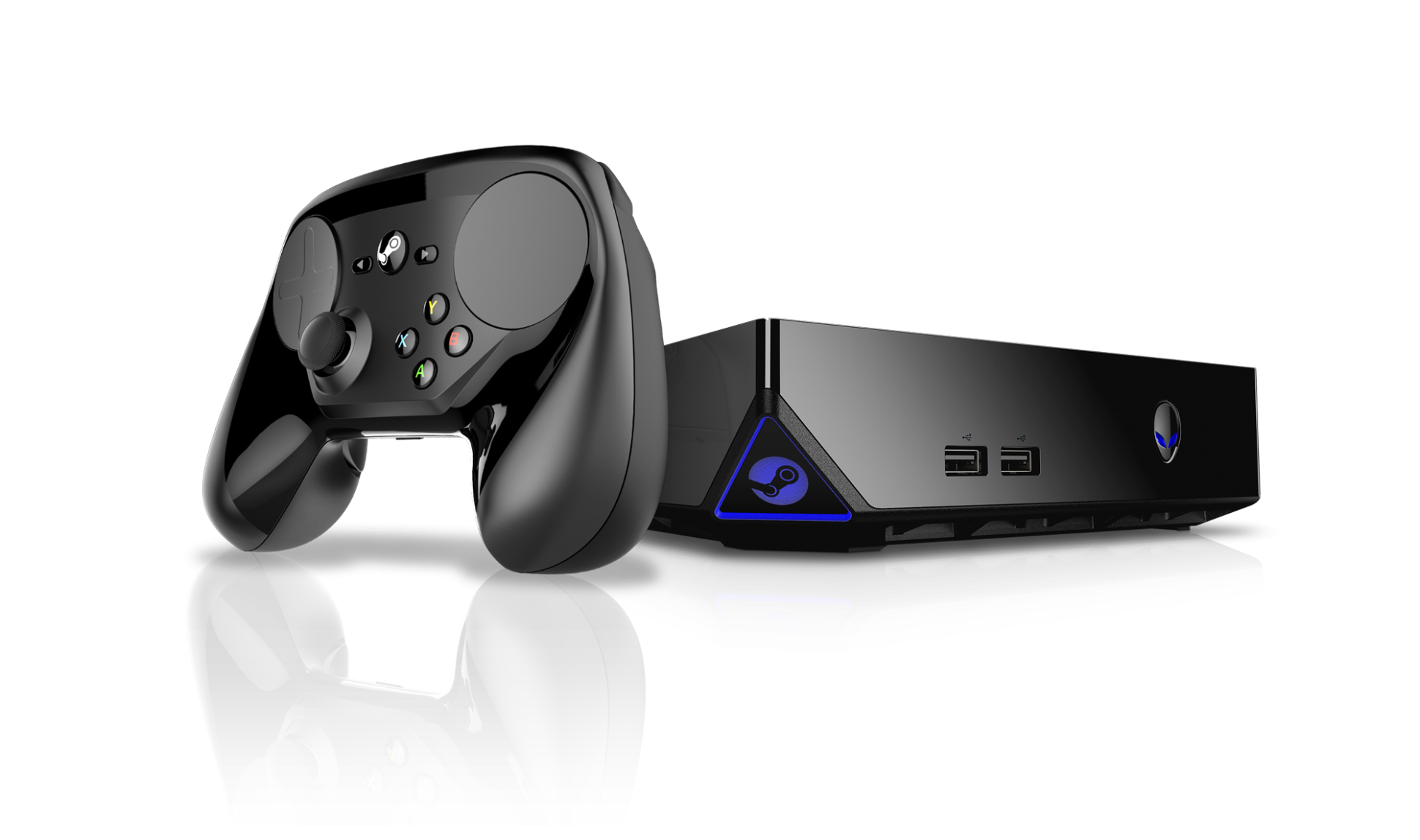

Alienware Steam Machine + Steam Controller

Model Steam Machine + Steam ControllerPart no. ASM100_I782TBG

141 specifications

Overview

Brand: Alienware
Category: PCs/Workstations
Model: Steam Machine + Steam Controller
Part number: ASM100_I782TBG
Also known as: Alienware Steam Machine + Steam Controller Intel® Core™ i7 i7-4785T 8 GB DDR3L-SDRAM 1 TB HDD Steam OS Desktop Mini PC Black

141 specifications in 16 groups

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	4th gen Intel® Core™ i7
Processor model	i7-4785T
Processor cores	4
Processor threads	8
Processor boost frequency	3.2 GHz
Processor frequency	2.2 GHz
Processor cache	8 MB
Processor cache type	Smart Cache
Bus type	DMI
System bus rate	5 GT/s
Processor lithography	22 nm
Processor operating modes	64-bit
Processor series	Intel Core i7-4700 Desktop series
Processor codename	Haswell
Thermal Design Power (TDP)	35 W
Tcase	66.35 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 2x8, 1x8+2x4
PCI Express slots version	3.0
Number of QPI links	0
Number of processors installed	1
Processor socket	LGA 1150 (Socket H3)
Stepping	C0
Maximum internal memory supported by processor	32 GB
Memory types supported by processor	DDR3-SDRAM
Memory clock speeds supported by processor	1333,1600 MHz
Memory bandwidth supported by processor (max)	25.6 GB/s
ECC supported by processor	No

Specification	Value
Total storage capacity	1 TB
Optical drive type	No
Storage media	HDD
Number of storage drives installed	1
Number of HDDs installed	1
HDD capacity	1 TB
HDD interface	SATA III
HDD speed	7200 RPM
HDD size	2.5"
Card reader integrated	No

Specification	Value
On-board graphics card	Yes
Discrete graphics card memory	2 GB
Discrete graphics memory type	GDDR5
On-board graphics card family	Intel® HD Graphics
On-board graphics card model	Intel® HD Graphics 4600
Maximum on-board graphics card memory	1.7 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	11.1
On-board graphics card ID	0x412

Specification	Value
Product type	Mini PC
Motherboard chipset	Intel® H81

Specification	Value
Optical drives quantity	0

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Thunderbolt 3 ports quantity	0
HDMI ports quantity	2
HDMI version	1.4a
Ethernet LAN (RJ-45) ports	1
Headphone outputs	0
Microphone in	No
VGA (D-Sub) ports quantity	0
DVI port	No
S/PDIF out port	Yes
DC-in jack	Yes

Specification	Value
Power supply	130 W
Power supply input frequency	50 - 60 Hz

Specification	Value
Operating system installed	Steam OS

Specification	Value
Display included	No

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Graphics & IMC lithography	22 nm
Idle States	Yes
Intel 64	Yes
Intel Enhanced Halt State	Yes
Intel FDI Technology	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Small Business Advantage (SBA) version	1.00
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	No
Intel TSX-NI version	0.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® Insider™	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Intel® Smart Cache	Yes
Intel® Wireless Display (Intel® WiDi)	Yes
Processor ARK ID	80814
Processor code	SR1QU
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2013A
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® My WiFi Technology (Intel® MWT)	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Intel® Anti-Theft Technology (Intel® AT)	Yes
Conflict-Free processor	Yes

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%

Specification	Value
Manual	Yes
