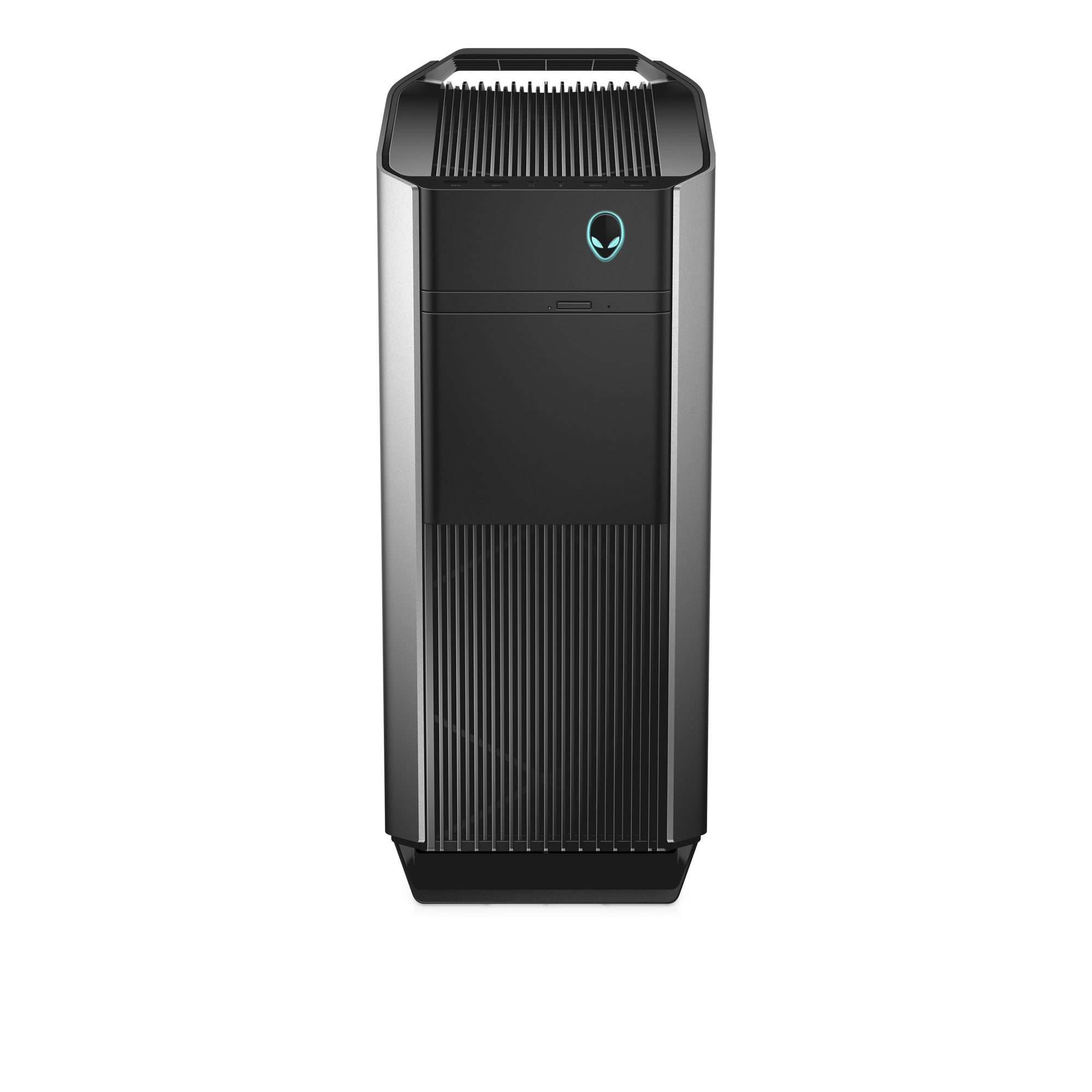

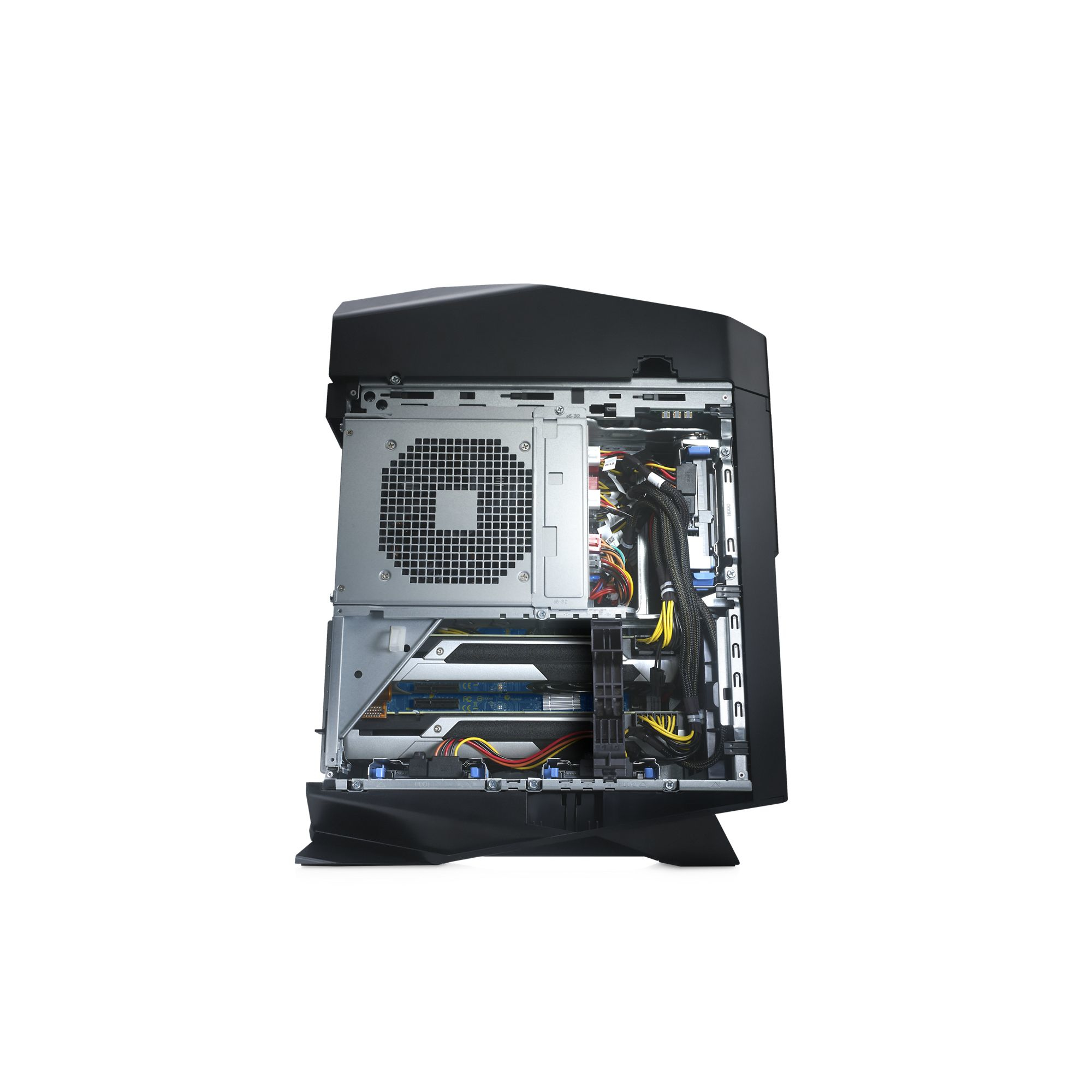

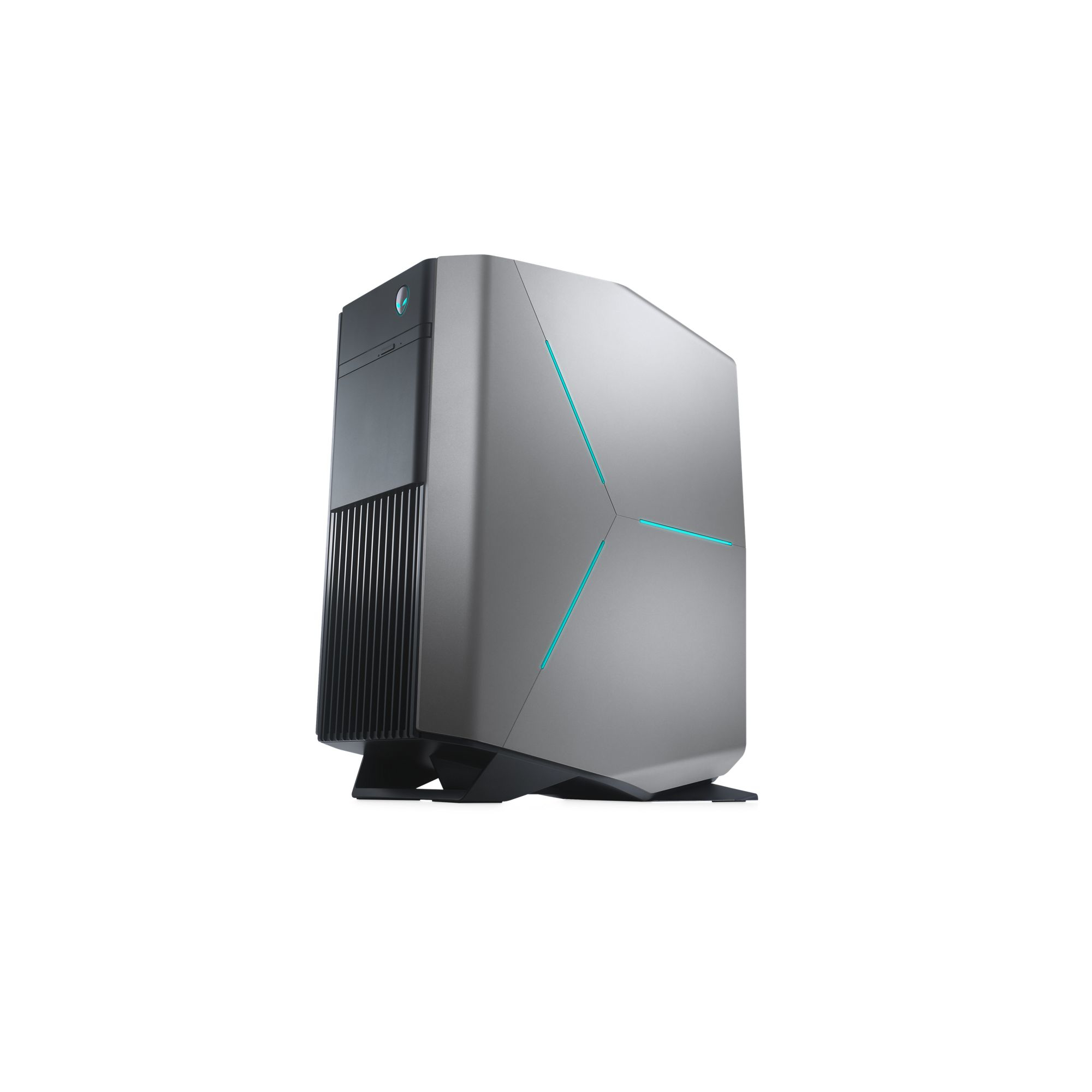

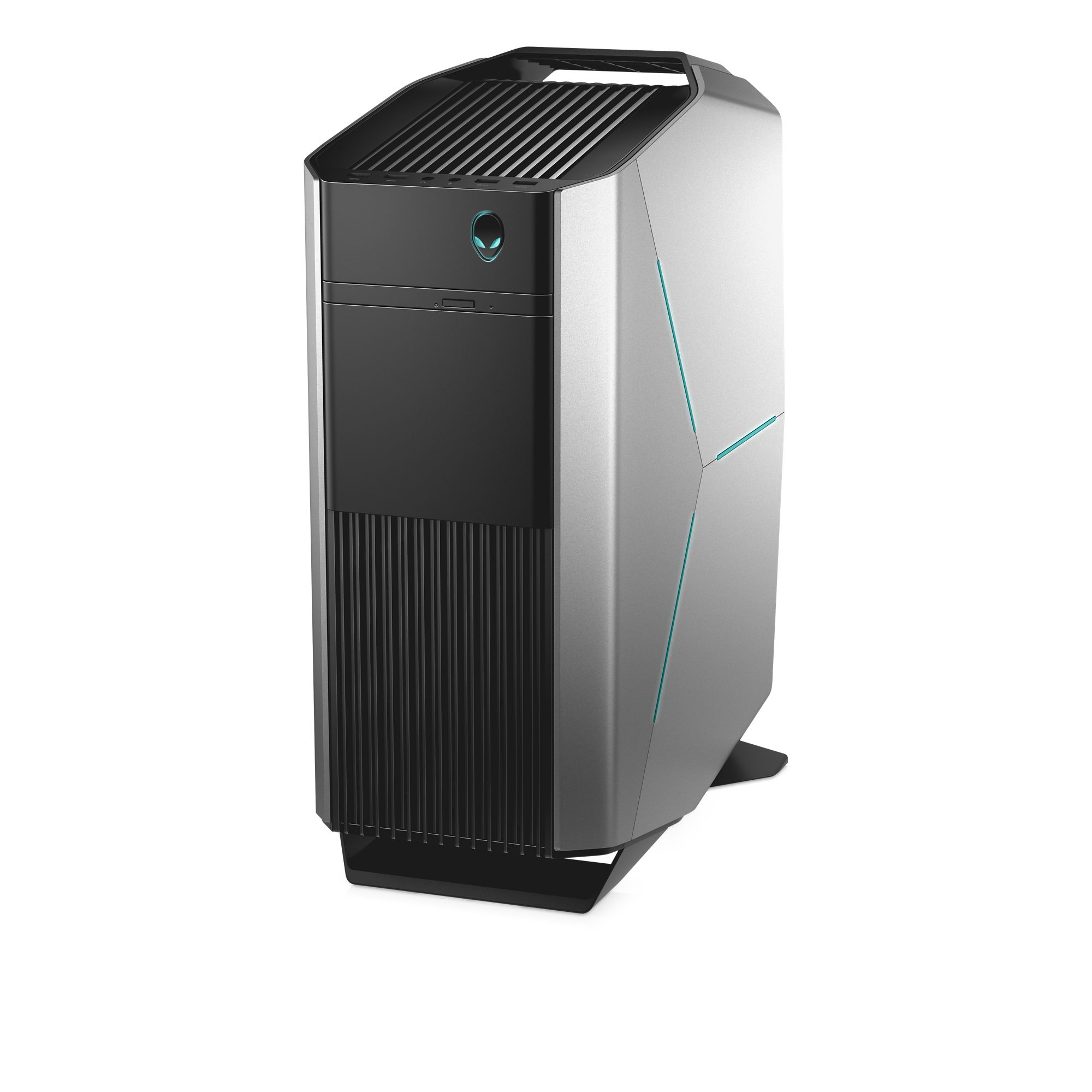

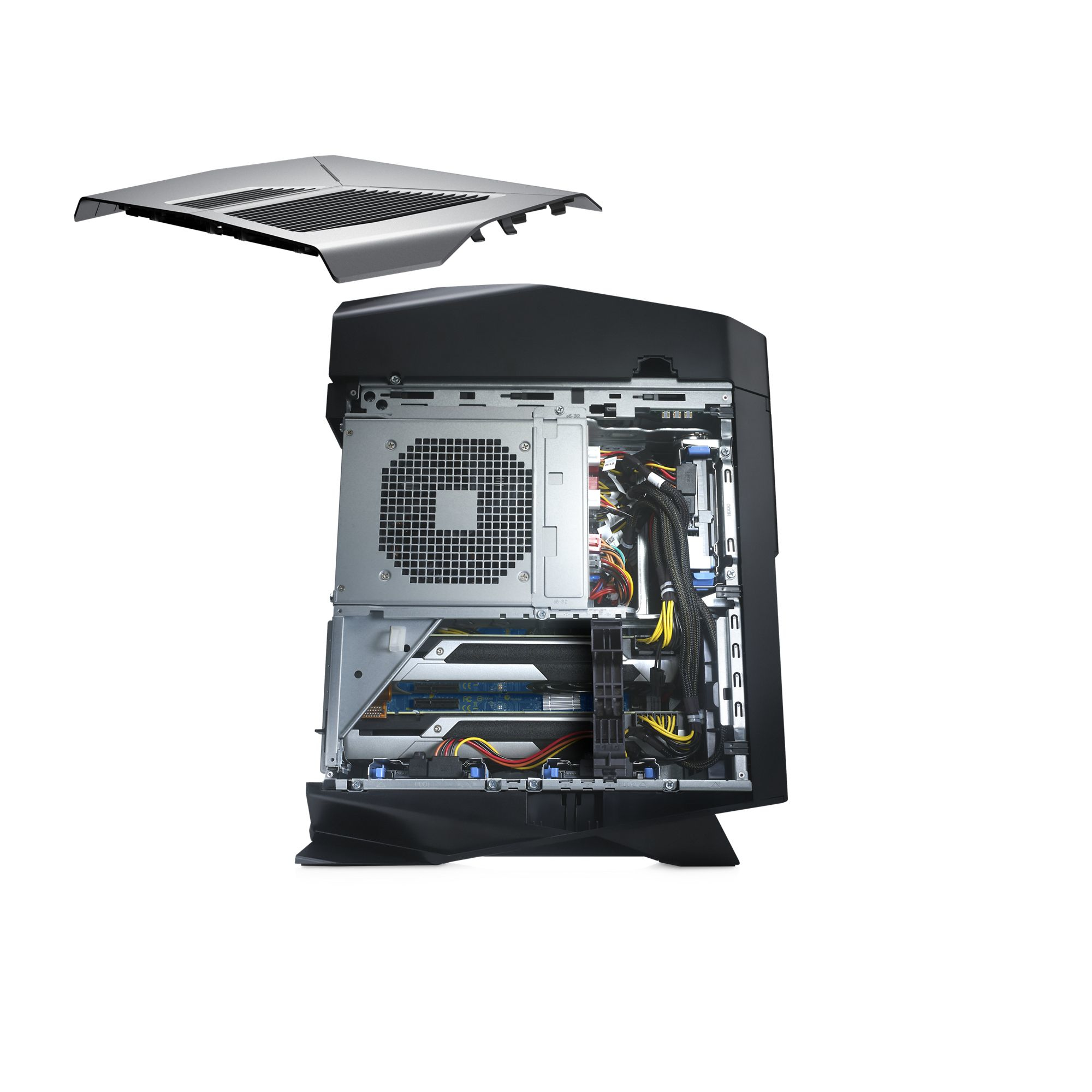

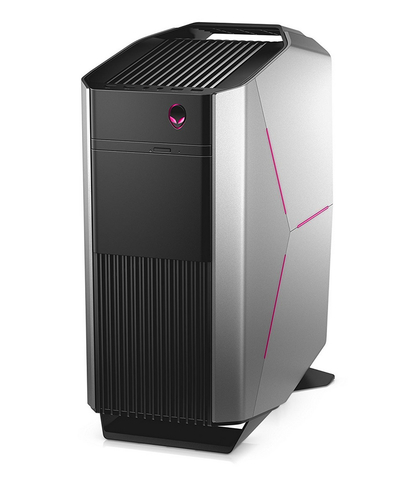

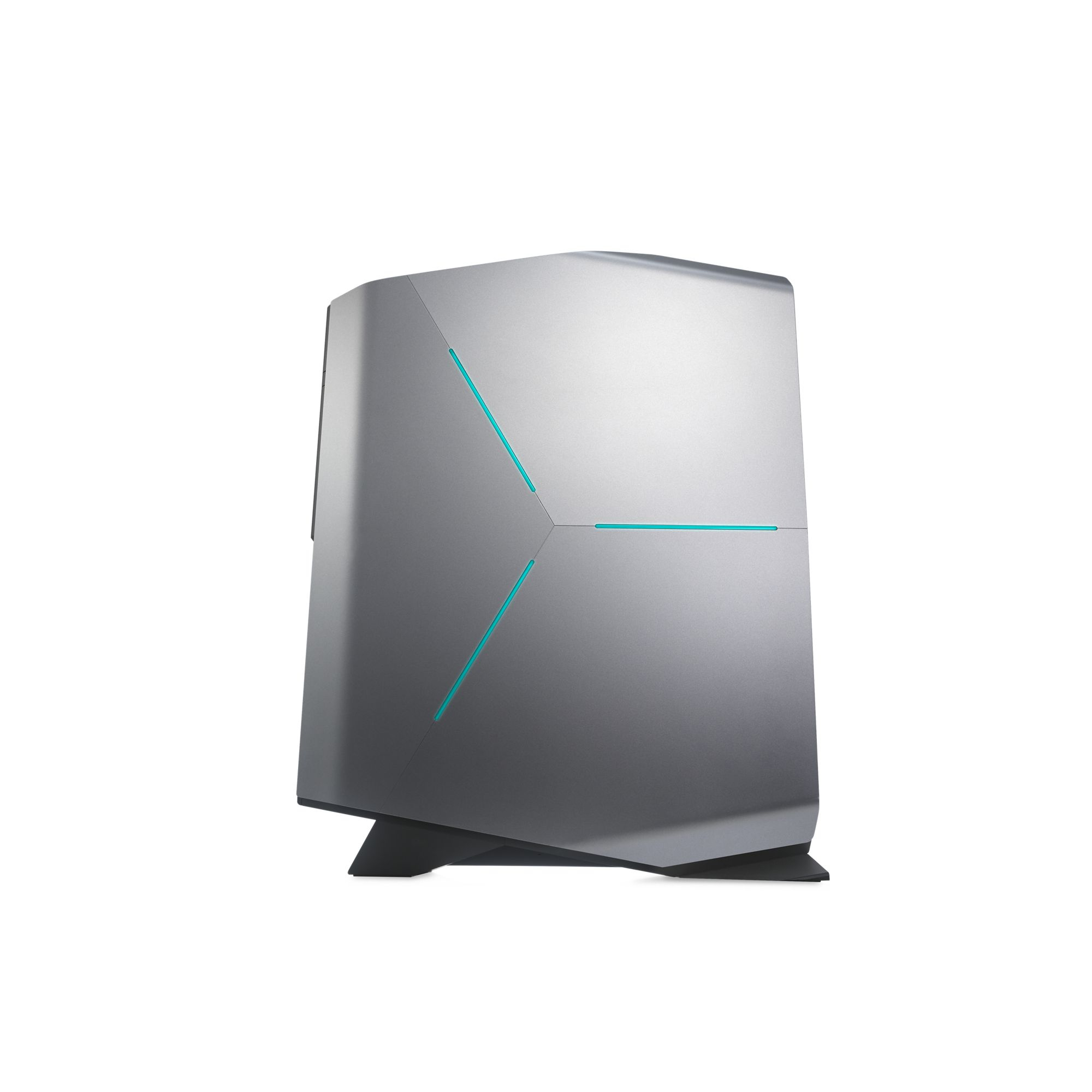

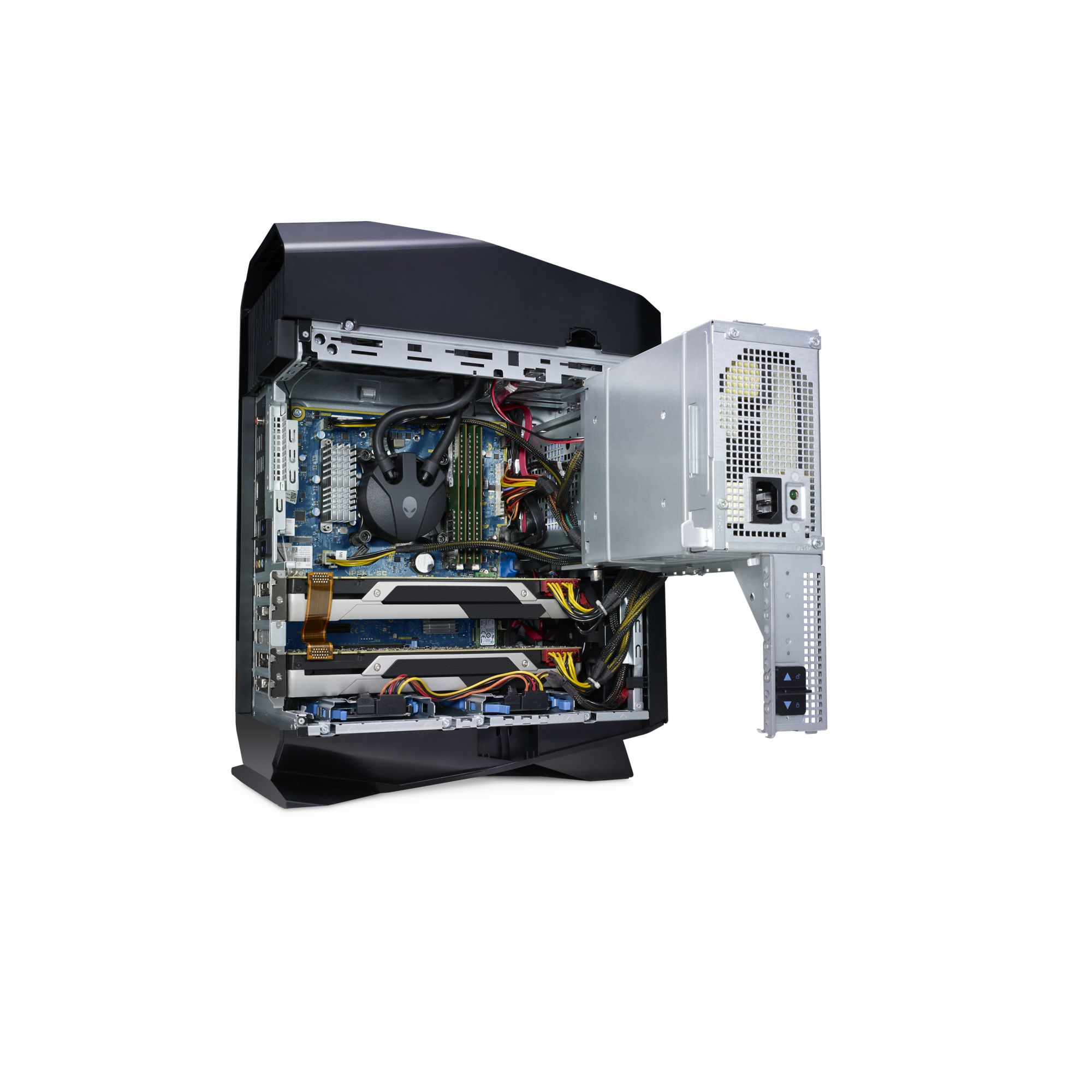

Alienware Aurora R7

Model Aurora R7Part no. DAAR7_F_S2EEAN 5397184050767

156 specifications

ProcessorIntel® Core™ i7
Memory32 GB
Storage2.51 TB
GraphicsNVIDIA® GeForce® GTX 1080 Ti
SpeedWi-Fi 5 (802.11ac)
TypePC

See all specifications

Overview

Processor: Intel® Core™ i7
Memory: 32 GB
Storage: 2.51 TB
Graphics: NVIDIA® GeForce® GTX 1080 Ti
Speed: Wi-Fi 5 (802.11ac)
Type: PC

Brand: Alienware
Category: PCs/Workstations
Model: Aurora R7
Part numbers: DAAR7_F_S2E, DAAR7_F_S3E, DAAR7_F_S11E, DAAR7_F_S10E, CAAAWAR710JP, ALWS-D3728S +34 more
EAN / UPC: 5397184050767, 5397184050750, 5397184050897, 884116327073 +19 more
Also known as: Alienware Aurora R7 Intel® Core™ i7 i7-8700K 32 GB DDR4-SDRAM 2.51 TB HDD+SSD NVIDIA® GeForce® GTX 1080 Ti Windows 10 Home Midi Tower PC Liquid cooling system B

Specifications

156 specifications in 17 groups

Processor

Specification	Value
Processor manufacturer	Intel
Processor family	Intel® Core™ i7
Processor generation	8th gen Intel® Core™ i7
Processor model	i7-8700K
Processor cores	6
Processor threads	12
Processor boost frequency	4.7 GHz
Processor frequency	3.7 GHz
Processor cache	12 MB
Processor cache type	Smart Cache
Bus type	DMI3
System bus rate	8 GT/s
Processor lithography	14 nm
Processor series	Intel Core i7-8700 Desktop Series
Processor codename	Coffee Lake
Thermal Design Power (TDP)	95 W
Tjunction	100 °C
Maximum number of PCI Express lanes	16
PCI Express configurations	1x16, 1x8+2x4, 2x8
PCI Express slots version	3.0
Number of processors installed	1
Maximum internal memory supported by processor	64 GB
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2666 MHz
Memory bandwidth supported by processor (max)	41.6 GB/s
ECC supported by processor	No

Memory

Specification	Value
Internal memory	32 GB
Maximum internal memory	64 GB
Internal memory type	DDR4-SDRAM
Memory slots	4x DIMM
Memory clock speed	2666 MHz
Memory channels	Dual-channel

Storage

Specification	Value
Total storage capacity	2.51 TB
Optical drive type	No
Storage media	HDD+SSD
Number of storage drives installed	2
Number of HDDs installed	1
HDD capacity	2 TB
HDD interface	SATA III
HDD speed	7200 RPM
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	No

Graphics

Specification	Value
Discrete graphics card	Yes
On-board graphics card	Yes
Discrete graphics card model	NVIDIA® GeForce® GTX 1080 Ti
Discrete graphics card memory	11 GB
Discrete graphics memory type	GDDR5X
Number of discrete graphics cards	2
On-board graphics card model	Intel® UHD Graphics 630
Maximum on-board graphics card memory	64 GB
Number of displays supported (on-board graphics)	3
On-board graphics card base frequency	350 MHz
On-board graphics card dynamic frequency (max)	1200 MHz
On-board graphics card DirectX version	12.0
On-board graphics card ID	0x3E92
On-board graphics card OpenGL version	4.5
CUDA	Yes
CUDA cores	3584
NVIDIA G-SYNC	Yes
NVIDIA GameWorks VR	Yes
Number of execution units	24
Graphics card DisplayPorts quantity	3
Graphics card HDMI ports quantity	1

Performance

Specification	Value
Product type	PC
Market positioning	Gaming
Motherboard form factor	micro ATX
Password protection	Yes
Audio output channels	7.1 channels

Network

Specification	Value
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Wi-Fi standards	Wi-Fi 5 (802.11ac)
Bluetooth	Yes
Bluetooth version	4.1

Ports & interfaces

Specification	Value
USB 2.0 ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Thunderbolt 3 ports quantity	0
HDMI ports quantity	0
Ethernet LAN (RJ-45) ports	1
Headphone outputs	1
Line-out	Yes
Line-in	Yes
Microphone in	Yes
VGA (D-Sub) ports quantity	0
DVI port	No
S/PDIF out port	Yes

Power

Specification	Value
Power supply	850 W

Design

Specification	Value
Chassis type	Midi Tower
Placement supported	Vertical
Cable lock slot	Yes
Cable lock slot type	Kensington
Liquid cooling system	Yes
Product colour	Black, Silver

Software

Specification	Value
Operating system installed	Windows 10 Home
Operating system architecture	64-bit
Drivers included	Yes

Display

Specification	Value
Display included	No

Processor special features

Specification	Value
CPU configuration (max)	1
Embedded options available	No
Enhanced Intel SpeedStep Technology	Yes
Execute Disable Bit	Yes
Idle States	Yes
Intel 64	Yes
Intel Clear Video Technology	Yes
Intel Enhanced Halt State	Yes
Intel Identity Protection Technology version	1.00
Intel Secure Key Technology version	1.00
Intel Software Guard Extensions (Intel SGX)	Yes
Intel Stable Image Platform Program (SIPP)	Yes
Intel Stable Image Platform Program (SIPP) version	1.00
Intel TSX-NI	Yes
Intel TSX-NI version	1.00
Intel Trusted Execution Technology	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel® AES New Instructions (Intel® AES-NI)	Yes
Intel® Clear Video HD Technology (Intel® CVT HD)	Yes
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)	Yes
Intel® InTru™ 3D Technology	Yes
Intel® OS Guard	Yes
Intel® Secure Key	Yes
Processor ARK ID	126684
Processor package size	37.5 x 37.5 mm
Scalability	1S
Supported instruction sets	AVX 2.0, SSE4.1, SSE4.2
Thermal Monitoring Technologies	Yes
Thermal solution specification	PCG 2015D
Intel® Turbo Boost Technology	2.0
Intel® Hyper Threading Technology (Intel® HT Technology)	Yes
Intel® Quick Sync Video Technology	Yes
Intel® Identity Protection Technology (Intel® IPT)	Yes
Conflict-Free processor	Yes

Audio

Specification	Value
Audio chip	Realtek ALC3861

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-40 - 65 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m

Weight & dimensions

Specification	Value
Width	212 mm
Depth	360.5 mm
Height	472.5 mm
Weight	14.8 kg

Packaging content

Specification	Value
Mouse included	Yes
Keyboard included	Yes
Cables included	AC
Manual	Yes

Keyboard

Specification	Value
Windows keys	Yes
